SIEMENS E4242MB1400FCU EQ LC MB 42S/42C 1PH 400A CU N1F
SKU: #398843
Part: #E4242MB1400FCU
UPC: 783643335325
SIEMENS E4242MB1400FCU EQ LC MB 42S/42C 1PH 400A CU N1F
SKU: #398843
Part: #E4242MB1400FCU
UPC: 783643335325
Description

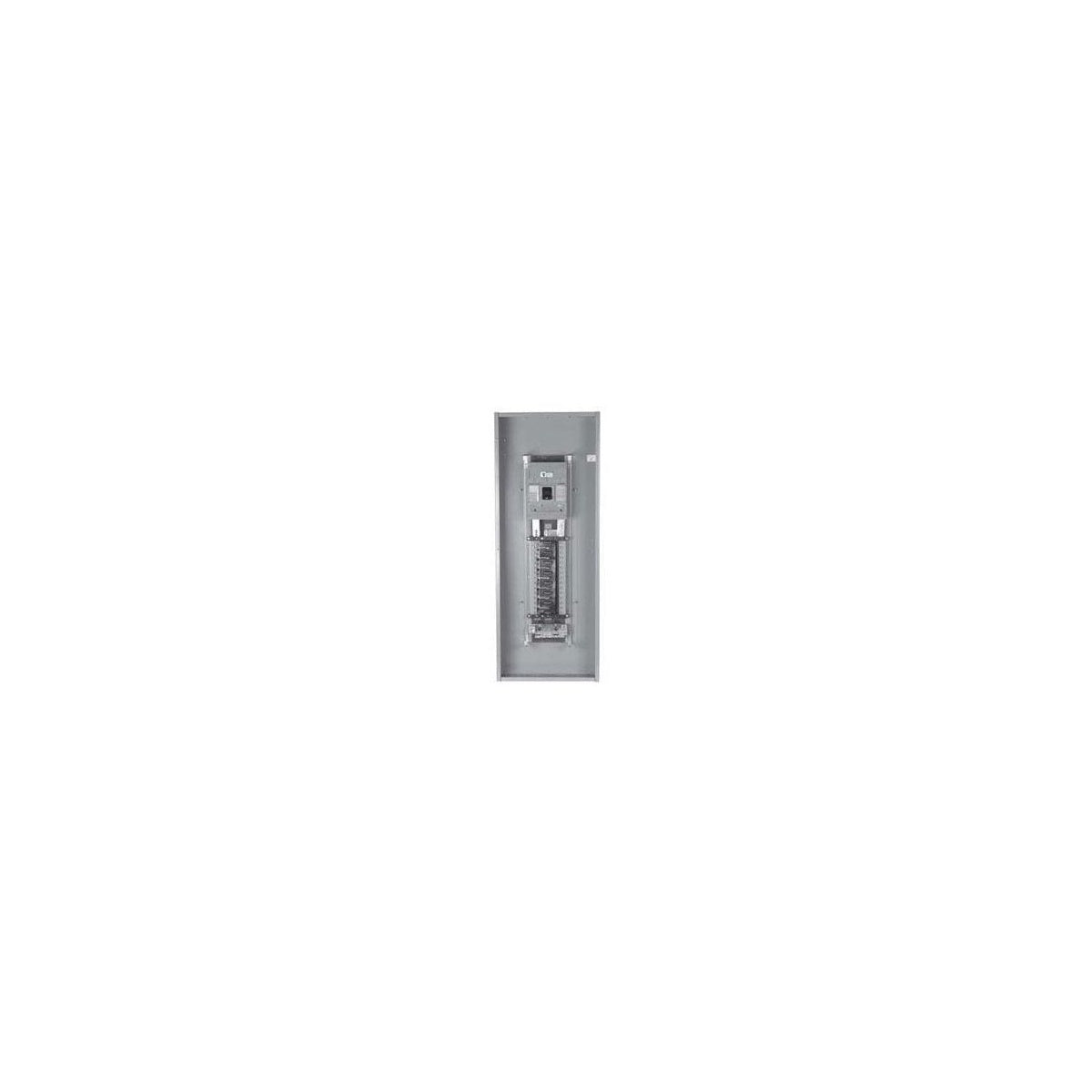

SIEMENS E4242MB1400FCU Load Center 400A
The SIEMENS E4242MB1400FCU is a residential load center designed for indoor applications with a flush mounting style. It serves as a reliable electrical distribution solution suitable for use as service equipment in residential settings. This load center supports a 1-phase, 3-wire system with a 400 ampere bus rating and main breaker, providing robust protection and power distribution. Ideal for electrical distributors and lighting solutions providers, it integrates seamlessly with Siemens circuit breakers and wiring systems.
Specifications
- Application: Residential
- Bus Rating: 400A
- Amperage Rating: 400 A
- Interrupt Rating: 22 kA
- Number of Spaces: 42
- Circuit Breaker Type: MB
- Mounting: Flush
- Enclosure: Indoor Type 1
- Product Weight: 139 lbs
- UPC: 783643335325
Features
- UL listed for 60/75°C conductors
- Copper bus standard for enhanced conductivity
- Factory installed lock on indoor enclosure
- Main breaker includes factory installed JXD2 type breaker
- Suitable for use as service equipment with "Service Disconnect" label provision
- Insulated neutral for safety and reliability
- Supports use of CU/AL wire at panelboard line and neutral terminals
