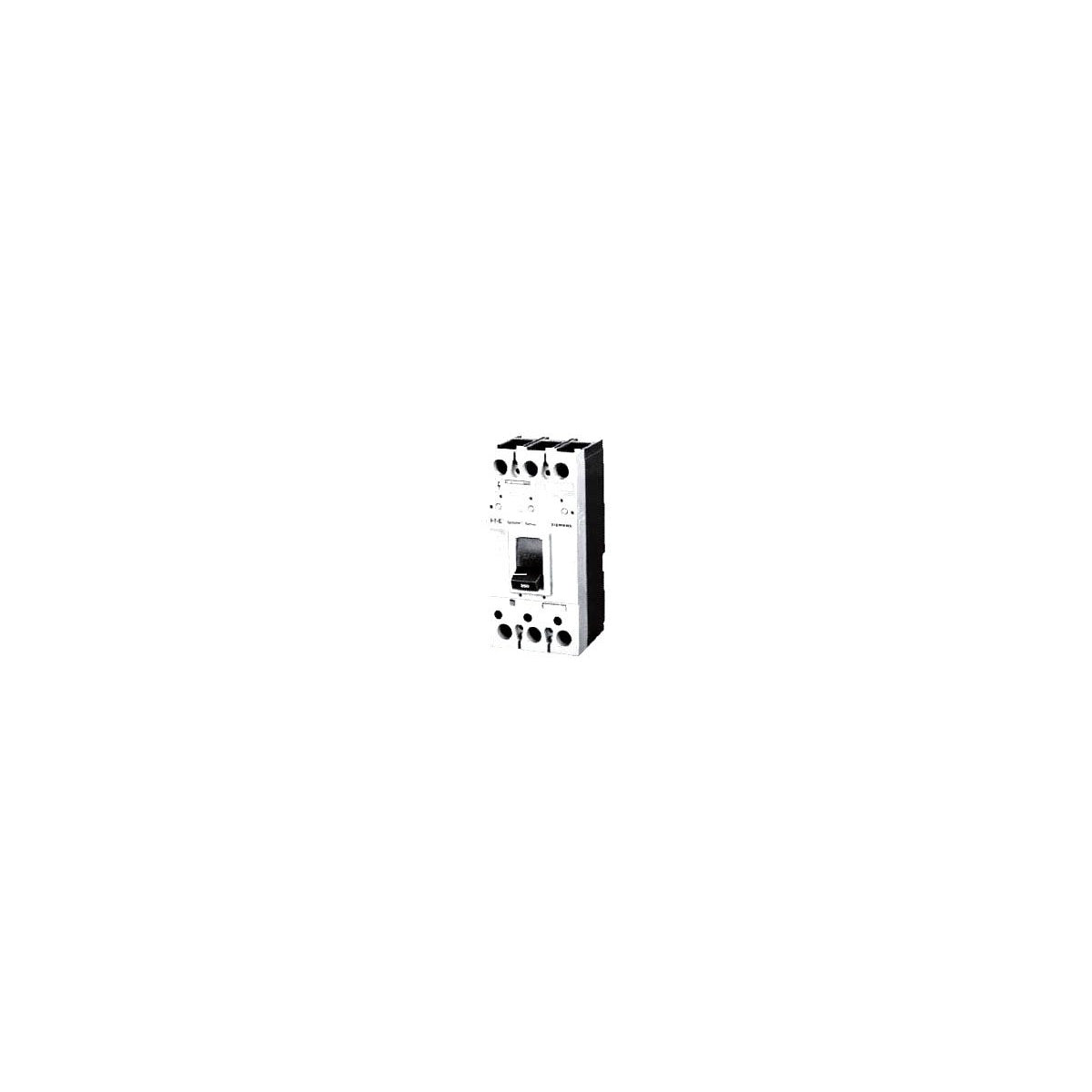

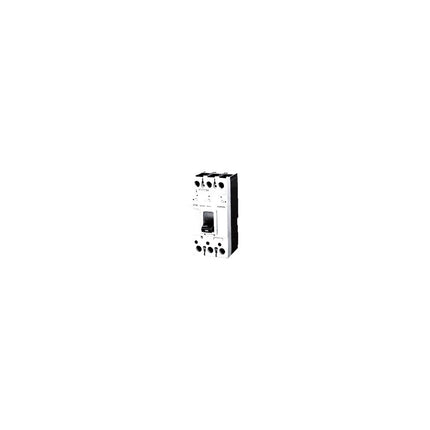

SIEMENS E3RHFD63B200 Enclosed Circuit Breaker 200A

The SIEMENS E3RHFD63B200 is a 3-pole molded case circuit breaker designed for electrical distribution and protection in industrial and commercial applications. It is suitable for outdoor use with a Type 3R enclosure, providing protection against rain and sleet. This breaker operates at a frequency rating of 50/60 Hz and is rated for 600V with a 200A continuous current capacity. It is engineered to meet the needs of electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable circuit protection.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: E3RHFD63B200
• Frame: FD
• Number of Poles: 3
• Voltage Rating: 600V
• Current Rating: 200A
• Interrupt Rating: 25KA
• Frequency Rating: 50/60 Hz
• Enclosure Type: TYPE 3R (Outdoor)
• Operating Temperature: -25¬∞C to 75¬∞C Ambient
• Dimensions (W x H x L): 15 in x 9 in x 39 in
• Weight: 44.1 lbs
• UPC: 783643294431

Features

• Non-interchangeable trip unit ensuring factory-assembled reliability
• CSA Certified and UL Listed for circuit breaker applications
• Suitable for use with 60¬∞C or 75¬∞C rated wiring as per NEC and Canadian Electrical Code
• Type 3R enclosure provides protection for outdoor installations
• Mechanical interlock compatibility for enhanced safety in multi-breaker setups (installation instructions available)
• High interrupting capacity of 25KA supports fault current interruption demands
• Designed for use in industrial electrical distribution and switchgear assemblies
