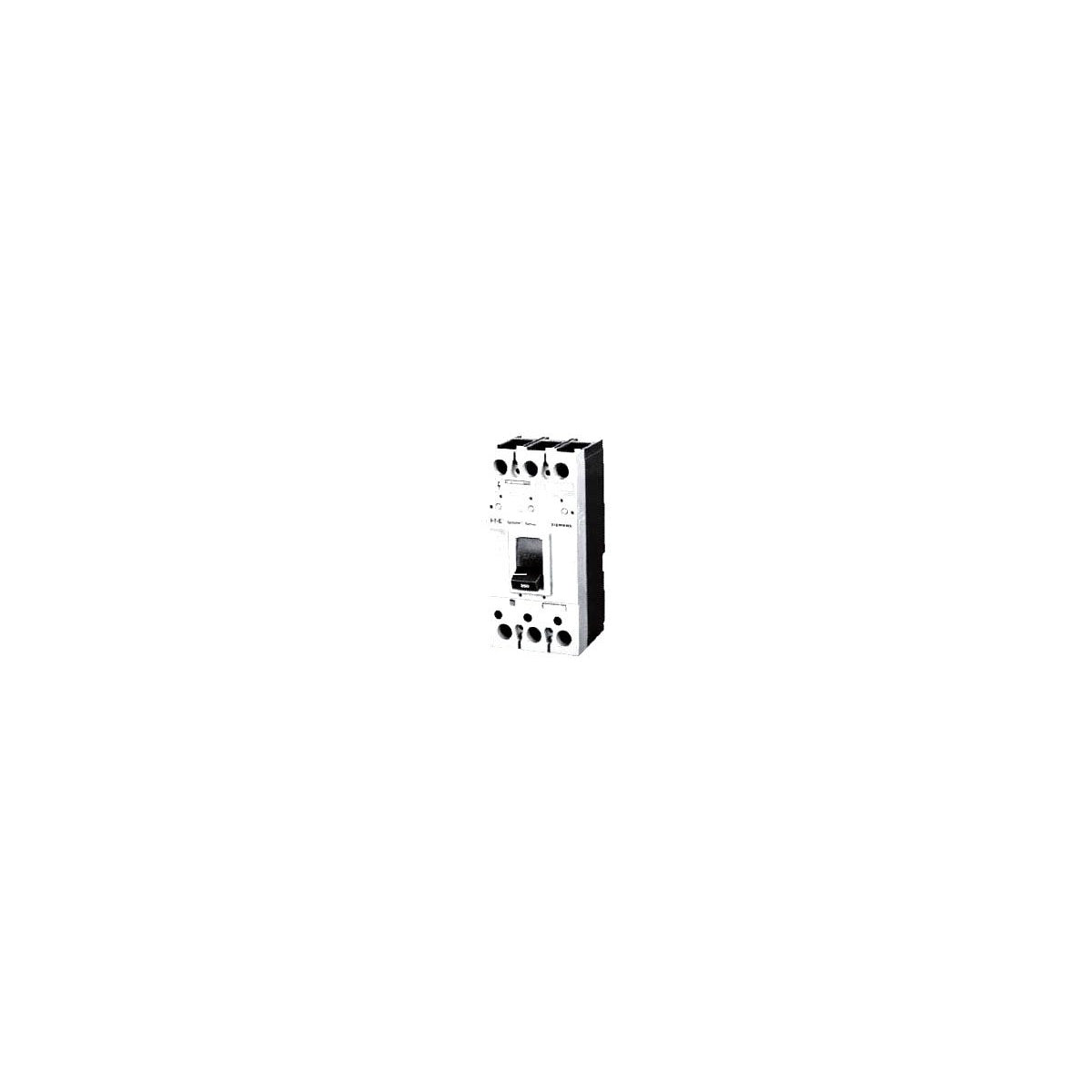

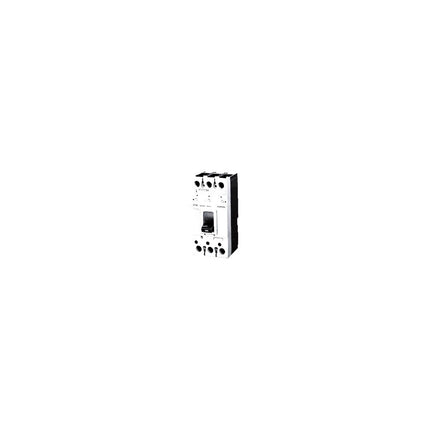

SIEMENS E12HFD63B080 BREAKER ENC12 3P 80A 600V 25KA Molded Case Circuit Breaker

The Siemens E12HFD63B080 is a 3-pole molded case circuit breaker designed for industrial electrical distribution applications. Rated for 80 amps and 600 volts AC, this breaker provides reliable overcurrent protection with a 25kA interrupting rating. It is suitable for use in individual enclosures, panel boards, switchboards, and other approved equipment. This breaker meets applicable CSA and UL standards and is compatible with 50/60 Hz electrical systems. Its Type 12 enclosure ensures protection in industrial environmental conditions, making it a dependable choice for electrical distributors and switchgear suppliers.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: E12HFD63B080
• Frame: FD
• Number of Poles: 3
• Current Rating: 80 Amps
• Voltage Rating: 600 V AC
• Interrupt Rating: 25 kA
• Frequency Rating: 50/60 Hz
• Enclosure Type: TYPE 12
• Operating Temperature Range: -25¬∞C to 75¬∞C Ambient
• Environmental Conditions: Industrial
• Dimensions (W x H x L): 15 in x 9 in x 39 in
• Product Weight: 44.1 lbs
• UPC: 783643294479

Features

• Thermal-magnetic trip unit providing reliable overcurrent protection
• CSA Certified and UL Listed for safety and performance compliance
• Suitable for use on 500 V DC ungrounded UPS systems when wired as per Siemens guidelines
• Non-interchangeable trip unit option available for reverse feed applications
• Manual operation with ON, OFF, and TRIPPED handle positions and PUSH-TO-TRIP button for testing
• Designed for easy installation with mounting hardware and wire connectors available separately
• Meets National Electric Code requirements for wire ampacity and temperature ratings
