SIEMENS BQD390BP BREAKER BQD 3P 90A 480VAC 14KA BULK PK
SKU: #396774
Part: #BQD390BP
UPC: 662643534030
SIEMENS BQD390BP BREAKER BQD 3P 90A 480VAC 14KA BULK PK
SKU: #396774
Part: #BQD390BP
UPC: 662643534030
Description

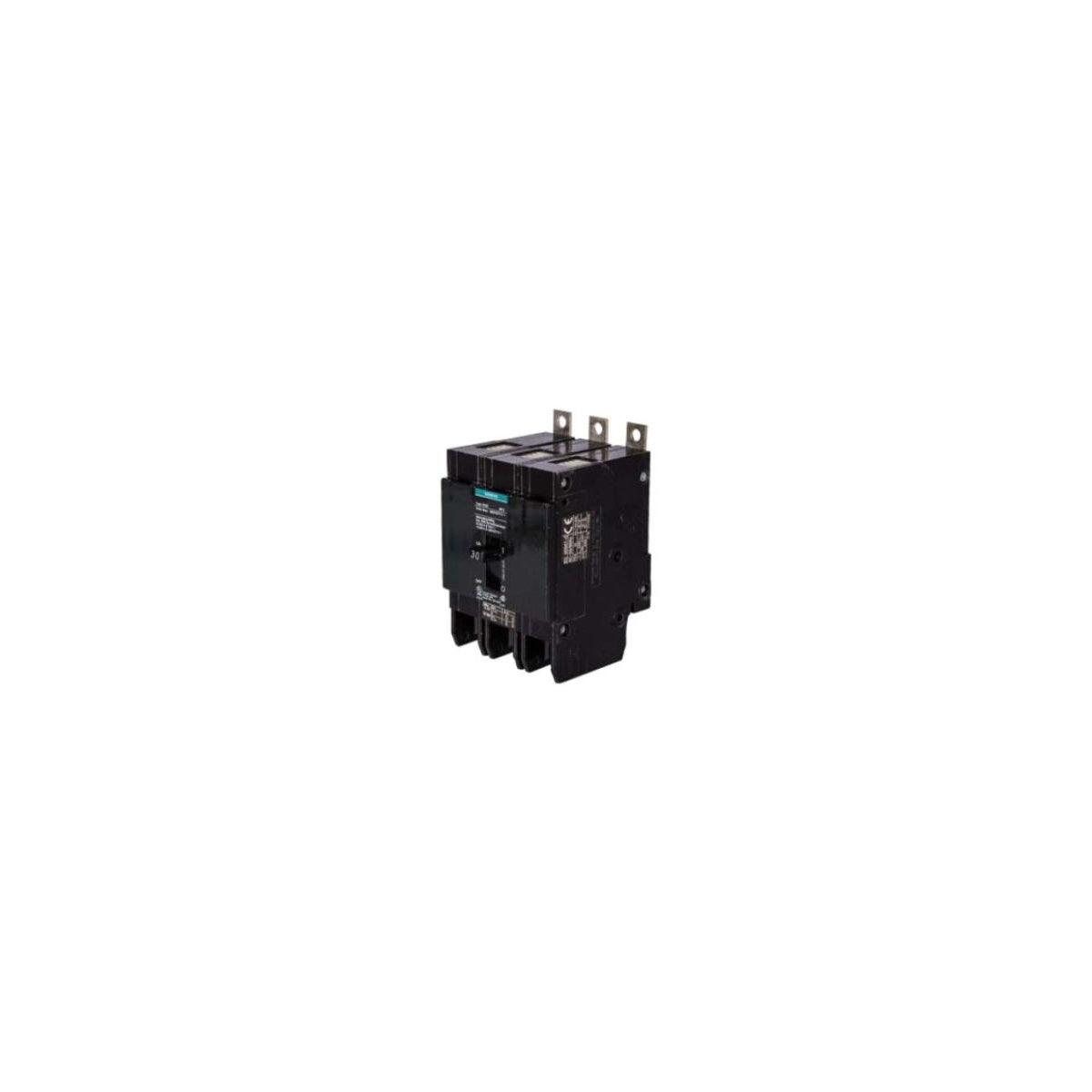

SIEMENS BQD390BP Breaker BQD 3P 90A 480VAC 14KA Molded Case Circuit Breaker
The SIEMENS BQD390BP is a 3-pole molded case circuit breaker designed for panelboard mounting applications. Rated for 90 amperes continuous current at 40°C, it operates at 480VAC with a 14kA interrupting rating, making it suitable for electrical distribution systems requiring reliable overcurrent protection. This breaker is ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers in commercial and industrial electrical installations.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: BQD390BP
- Number of Poles: 3
- Continuous Current Rating: 90A @ 40°C
- Voltage Rating: 480VAC
- Interrupting Rating: 14kA RMS symmetrical amperes
- Product Weight: 1.7710 lbs
- UPC: 662643534030
Features
- Molded case construction for durability and safety
- Panelboard mounting design for easy installation
- UL 489 and CSA certified with SWD (Switching Duty) rating
- Suitable for use with #8–#1 AWG copper and #6–#1/0 AWG aluminum wire (load end only)
- Compatible with 3-phase electrical systems at 480/277V AC
