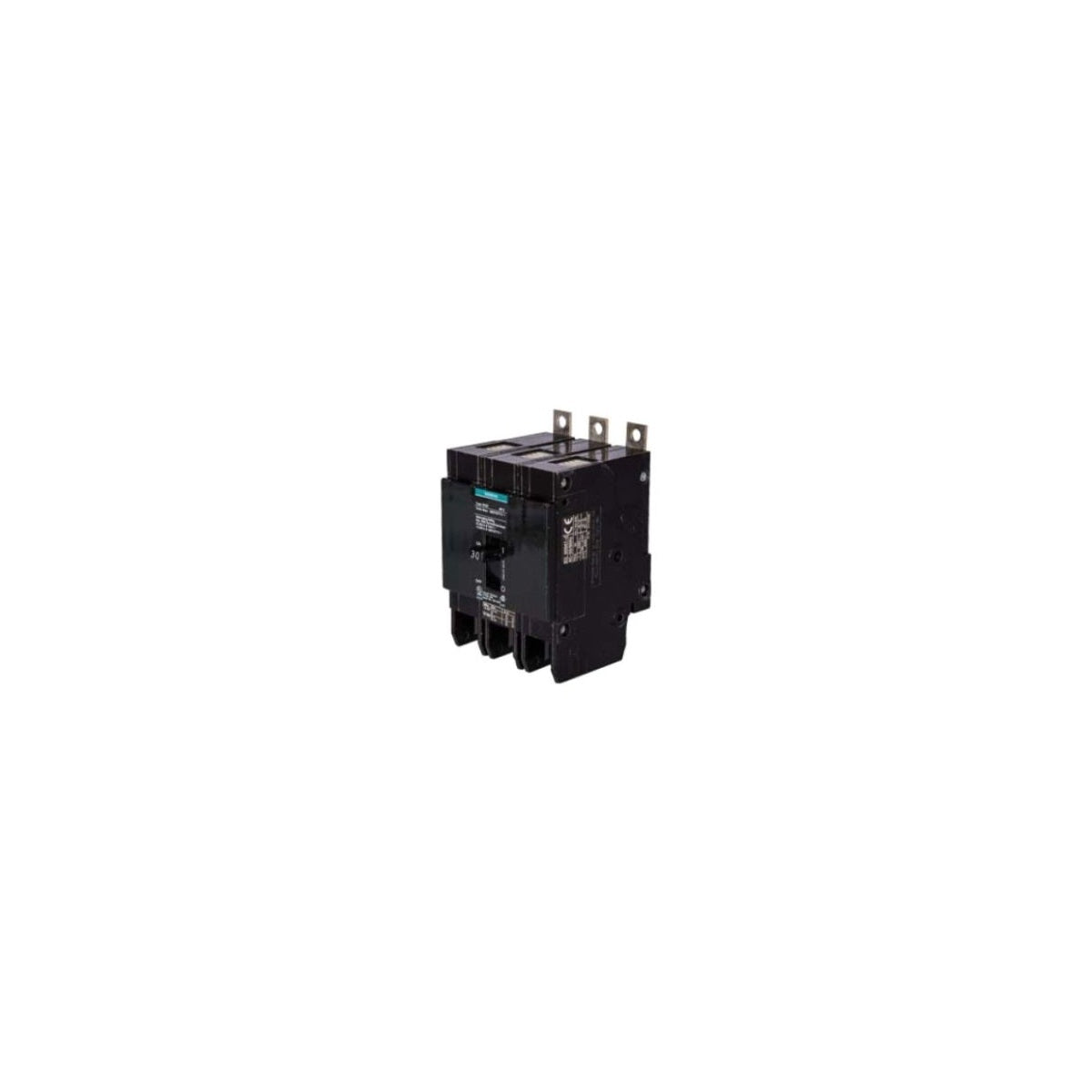

SIEMENS BQD380BP BREAKER BQD 3P 80A 480VAC 14KA BULK PK
SKU: #396772
Part: #BQD380BP
UPC: 662643534023
SIEMENS BQD380BP BREAKER BQD 3P 80A 480VAC 14KA BULK PK
SKU: #396772
Part: #BQD380BP
UPC: 662643534023
Description
SIEMENS BQD380BP Breaker 3-Pole 80A 480VAC Molded Case Circuit Breaker
The Siemens BQD380BP is a 3-pole molded case circuit breaker designed for panelboard mounting applications. Rated for 80 amps at 480VAC, it provides reliable overcurrent protection for electrical distribution systems. This breaker is suitable for use in commercial and industrial electrical installations, supporting wire sizes compatible with 60/75°C copper and aluminum conductors. As a product from a leading switchgear supplier, it integrates seamlessly into lighting solutions, wire and cable management, and electrical distribution networks.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: BQD380BP
- Number of Poles: 3
- Continuous Current Rating: 80 Amperes
- Voltage Rating: 480Y/277V AC
- Interrupting Rating: 14 kA RMS Symmetrical Amperes
- Product Weight: 1.7710 lbs
- UPC: 662643534023
- Wire Size (Lugs for 60/75°C Wire): #14–#6 AWG Cu, #12–#6 AWG Al (15-40A); #8–#1 AWG Cu, #6–#1/0 AWG Al (45-100A)
- Dimensions (inches): Width 2.70, Height 4.49, Depth 3.00
Features
- Panelboard mounting molded case circuit breaker for 3-phase applications
- HACR rated and CSA/UL listed for reliable electrical protection
- Rated for 14kA interrupting capacity at 480VAC
- Supports 60/75°C copper and aluminum wire connections
- Compact DIN rail compatible design for easy installation
