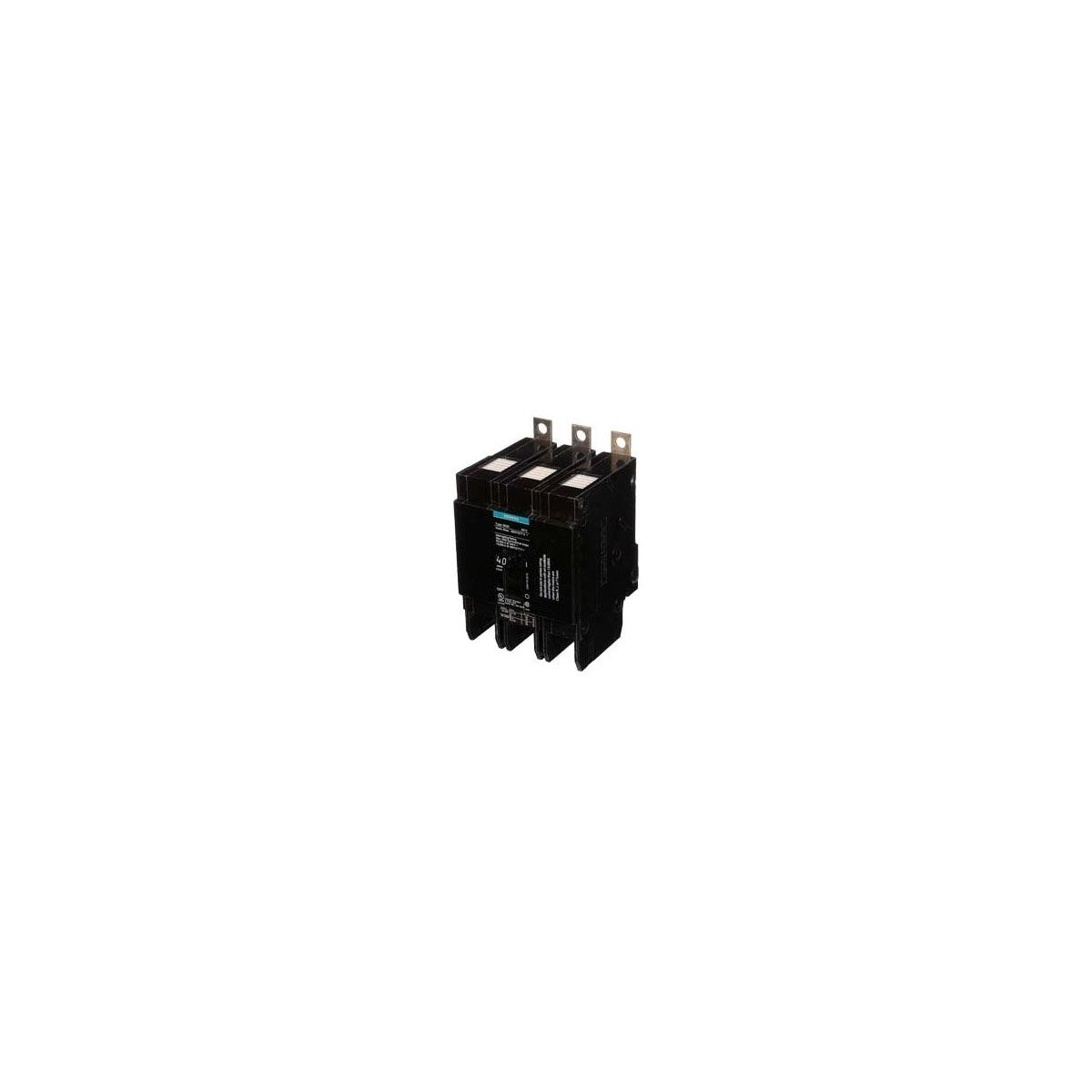

SIEMENS BQD370BP Breaker 3-Pole 70A 480VAC Molded Case Circuit Breaker

The SIEMENS BQD370BP is a 3-pole molded case circuit breaker designed for panelboard mounting applications. It provides reliable overcurrent protection for electrical distribution systems operating at 480VAC. Suitable for use by electrical distributors and lighting solutions providers, this breaker supports wire and cable applications requiring robust circuit protection and is a key component for switchgear suppliers managing medium-duty electrical infrastructure.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: BQD370BP
• Number of Poles: 3
• Continuous Current Rating: 70 Amperes @ 40°C
• Voltage Rating: 480Y/277V AC
• Interrupting Rating: 14 kA RMS symmetrical amperes
• Product Weight: 1.7710 lbs
• UPC: 662643534016

Features

• Molded case construction for durable circuit protection
• Panelboard mounting type for easy installation
• Suitable for 60/75°C wire with specified lug ranges (#14–#6 AWG Cu and #12–#6 AWG Al for 15-40A; #9–#1 AWG Cu and #6–#1/0 AWG Al for 45-100A)
• CSA Certified and UL Listed with SWD rating for switching fluorescent lighting
• HACR rated for heating, air conditioning, and refrigeration equipment
