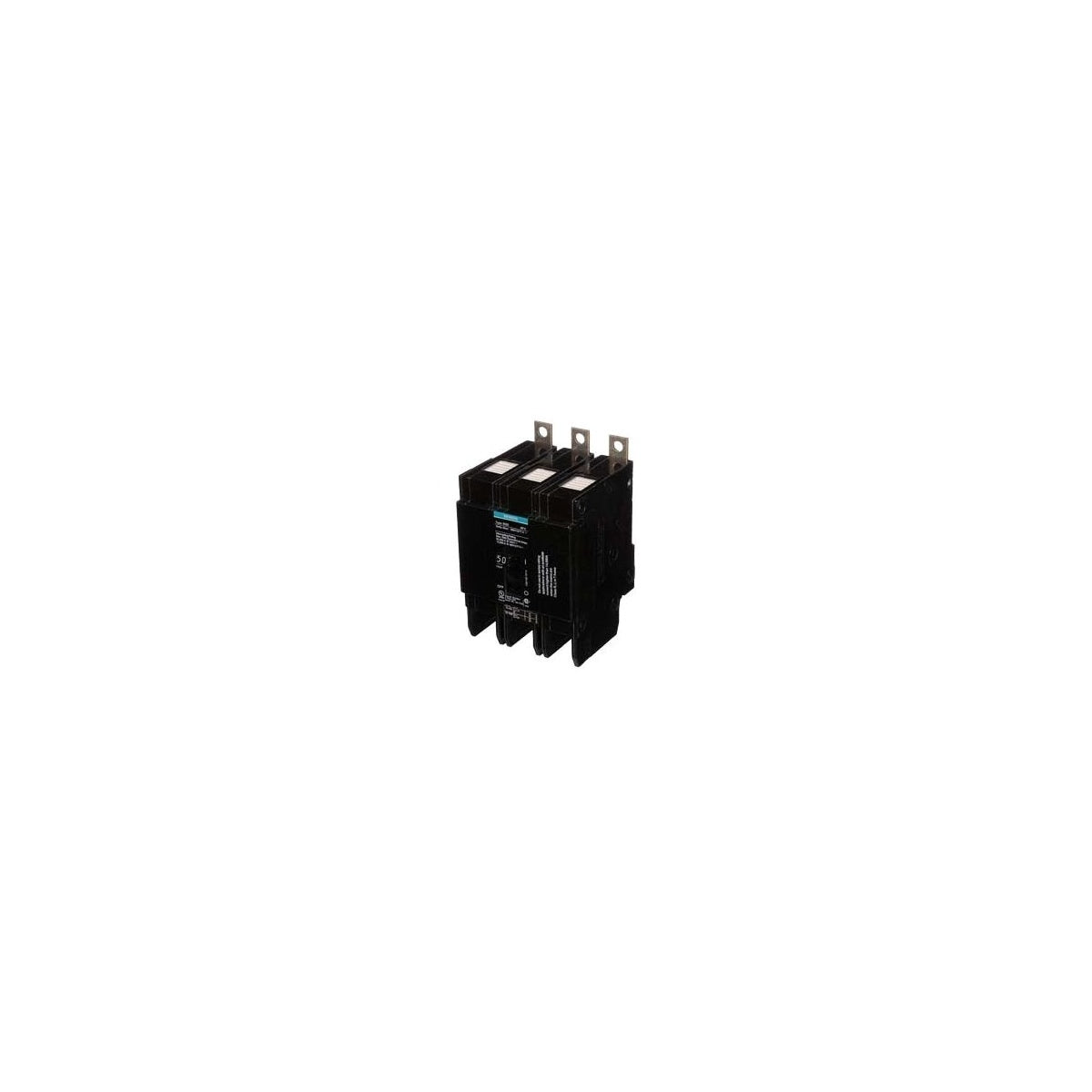

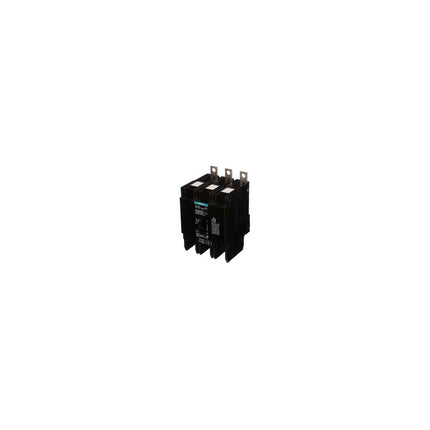

SIEMENS BQD35000S01 Breaker BQD 3P 50A 480VAC Molded Case Circuit Breaker

The Siemens BQD35000S01 is a molded case circuit breaker designed for panelboard mounting applications, providing reliable electrical protection for 3-phase systems. Rated at 50 amperes and 480 volts AC, this breaker is suitable for industrial and commercial electrical distribution systems. It is engineered to interrupt fault currents up to 14kA RMS symmetrical amperes, ensuring safe operation and circuit protection. As a product from a leading switchgear supplier, it integrates seamlessly within wire and cable setups and lighting solutions requiring robust circuit protection.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: BQD35000S01
• Number of Poles: 3
• Continuous Current Rating: 50 A @ 40°C
• Voltage Rating: 480 VAC
• Interrupting Rating: 14kA RMS symmetrical amperes
• Product Weight: 2.1710 lbs
• UPC: 783643106895

Features

• Molded case design for durability and safety
• Panelboard mounting configuration
• Compatible with 60/75°C copper and aluminum wire (load end only)
• CSA Certified and UL Listed with SWD rating for switching fluorescent lighting
• Suitable for 3-pole electrical protection in 480Y/277V AC systems

Downloads & Links

• Spec Sheet
• Spec Sheet
