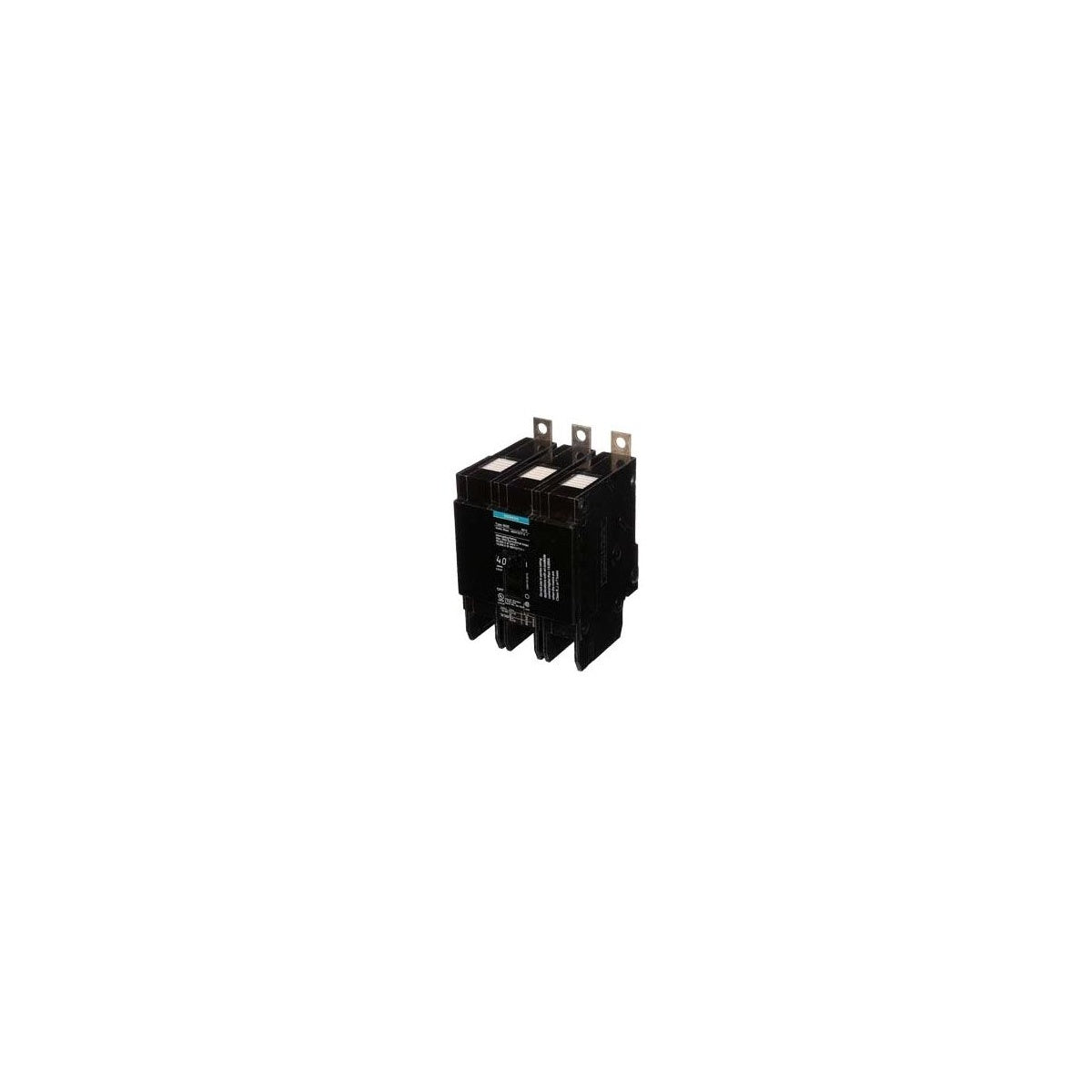

SIEMENS BQD345BP Breaker 3-Pole 45A 480VAC Molded Case Circuit Breaker

The Siemens BQD345BP is a 3-pole molded case circuit breaker designed for panelboard mounting applications. It provides reliable electrical protection for circuits up to 45 amperes at 480VAC with a 14kA interrupting rating. Suitable for use by electrical distributors and switchgear suppliers, this breaker is engineered to protect wiring and equipment in commercial and industrial electrical systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: BQD345BP
• Number of Poles: 3
• Continuous Current Rating: 45 Amperes @ 40°C
• Voltage Rating: 480Y/277V AC
• Interrupting Rating: 14 kA RMS symmetrical amperes
• Product Weight: 1.7710 lbs
• UPC: 662643534009

Features

• Molded case design ensures durable circuit protection
• Panelboard mounting suitable for 3-pole applications
• HACR rated for use with heating, air conditioning, and refrigeration equipment
• CSA Certified and UL Listed for safety and compliance
• Load end only lugs compatible with #8 to #1 AWG copper and #6 to #1/0 AWG aluminum wire (45-100A range)
