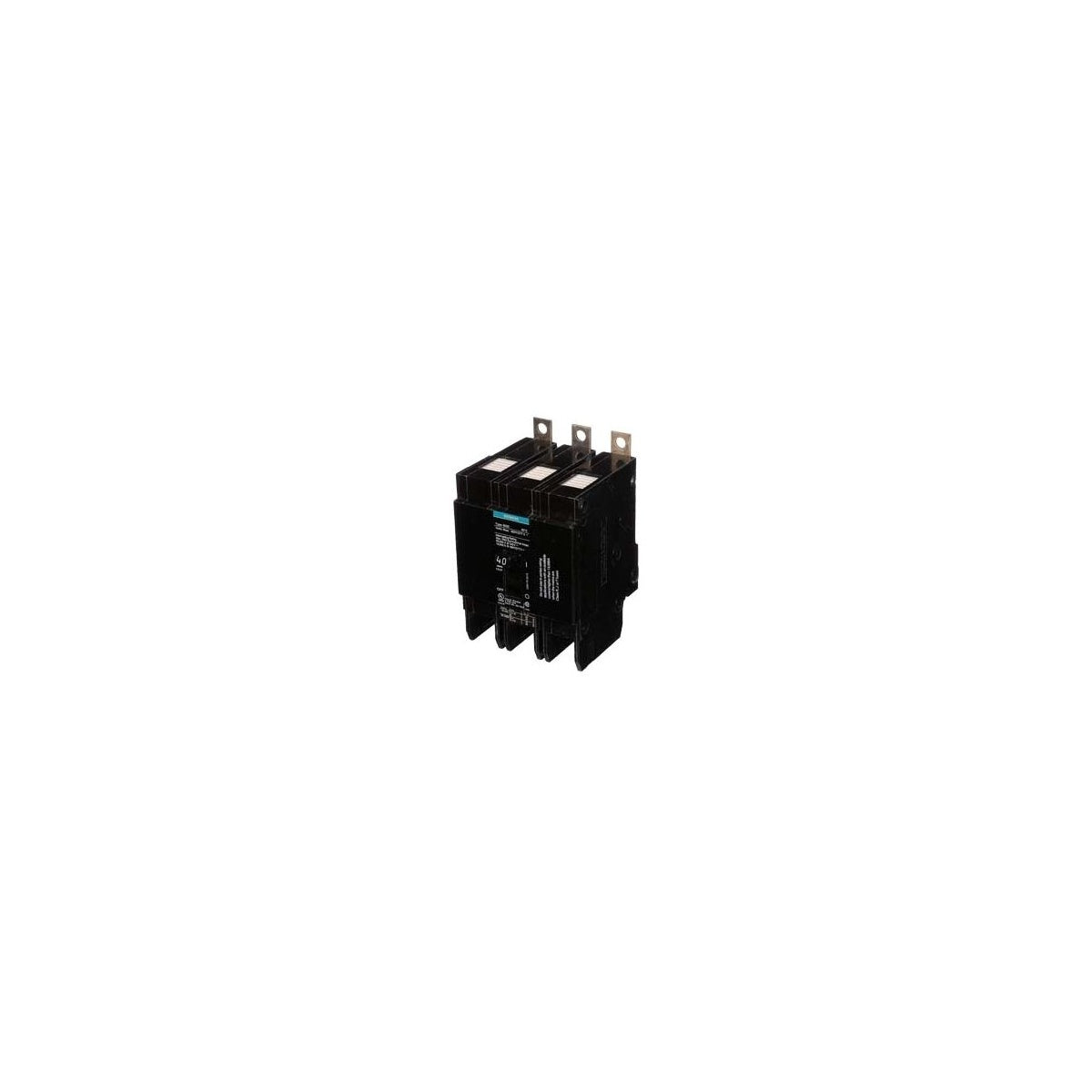

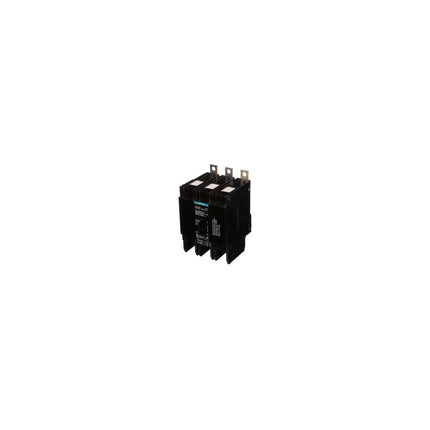

SIEMENS BQD340BP BREAKER BQD 3P 40A 480VAC 14KA BULK PK
SKU: #396640
Part: #BQD340BP
UPC: 783643319660
SIEMENS BQD340BP BREAKER BQD 3P 40A 480VAC 14KA BULK PK
SKU: #396640
Part: #BQD340BP
UPC: 783643319660
Description
SIEMENS BQD340BP Breaker 3P 40A 480VAC Circuit Protection
The SIEMENS BQD340BP is a molded case circuit breaker designed for circuit protection applications in electrical distribution systems. This 3-pole breaker is rated for 40 amperes continuous current at 40°C and supports 480VAC operation with a 14kA interrupting rating. It is suitable for use by electrical distributors, switchgear suppliers, and lighting solutions providers requiring reliable overcurrent protection in panelboard mounting configurations.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: BQD340BP
- Number of Poles: 3
- Continuous Current Rating: 40A @ 40°C
- Voltage Rating: 480VAC / 277VAC
- Interrupting Rating: 14kA RMS symmetrical amperes
- Application: Circuit Protection
- Product Weight: 1.64 lbs
- UPC: 783643319660
Features
- Molded case construction for durability and reliable performance
- Panelboard mounting design compatible with Siemens BQD 100A frame series
- Load end only lugs for 60/75°C wire: #14–#6 AWG copper, #12–#6 AWG aluminum
- CSA Certified and UL Listed with SWD rating for switching fluorescent lighting
- HACR rated for heating, air conditioning, and refrigeration equipment
- Designed for 3-phase electrical distribution applications
