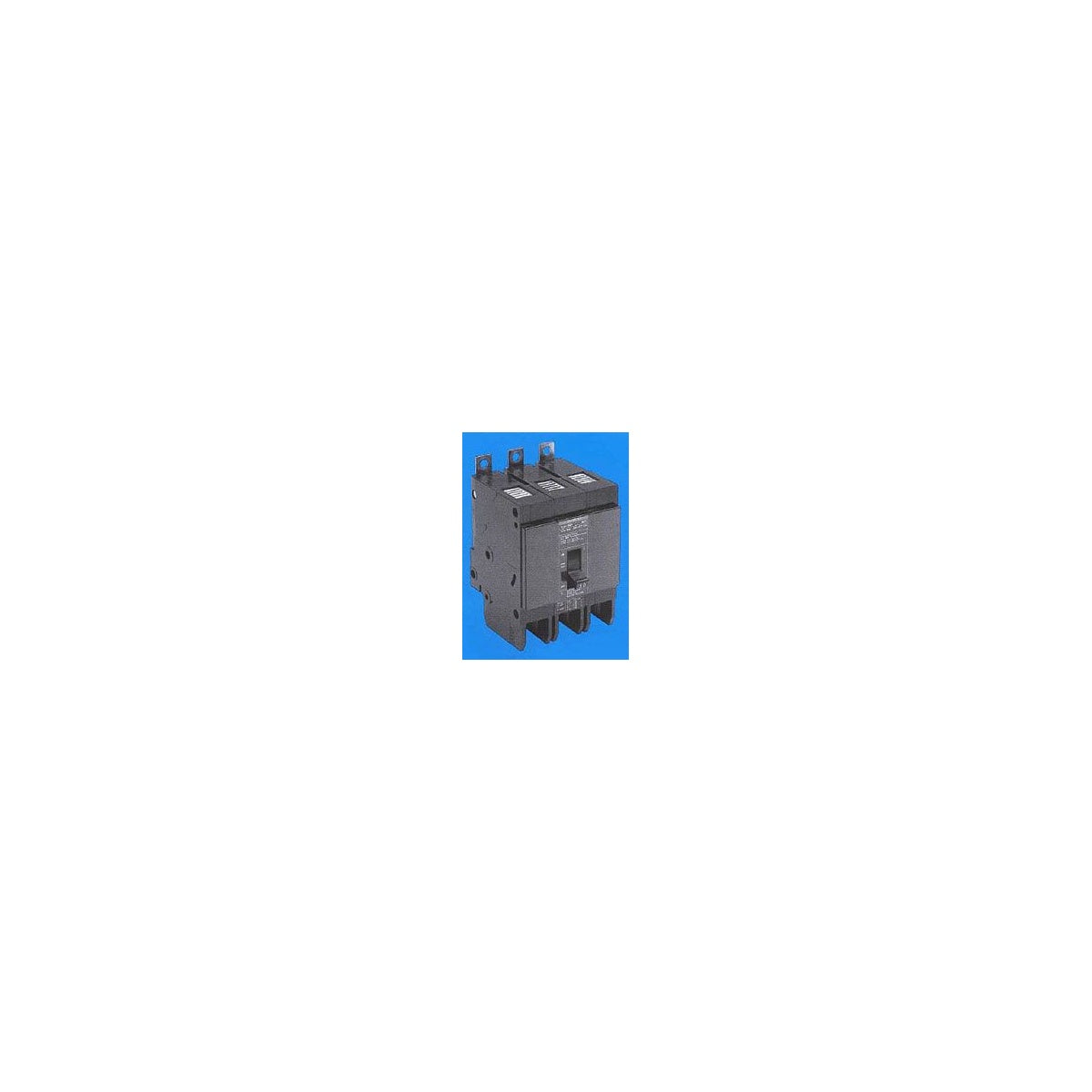

SIEMENS BQD320BP Breaker BQD 3P 20A 480VAC 14KA Molded Case Circuit Breaker

The SIEMENS BQD320BP is a 3-pole molded case circuit breaker designed for circuit protection applications. Manufactured by Siemens, this breaker is suitable for panelboard mounting and provides reliable overload and short-circuit protection in electrical distribution systems. It operates at 20 amperes with a voltage rating of 480VAC and features a 14kA interrupting rating, making it appropriate for commercial and industrial electrical installations. This product is a key component for electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable protection.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: BQD320BP
• Number of Poles: 3
• Continuous Current Rating: 20 Amperes
• Voltage Rating: 480VAC
• Interrupting Rating: 14kA RMS symmetrical amperes
• Application: Circuit Protection
• Product Weight: 1.64 lbs
• UPC: 783643319646

Features

• Molded case design for robust protection and durability
• Panelboard mounting compatible
• Suitable for use with 60/75¬∞C copper and aluminum wire
• CSA Certified and UL Listed for safety and compliance
• HACR rated for HVAC equipment compatibility
• Load end only lugs for wire sizes #14‚Äì#6 AWG copper and #12‚Äì#6 AWG aluminum (15‚Äì40A), #9‚Äì#1 AWG copper and #6‚Äì#1/0 AWG aluminum (45‚Äì100A)

Downloads & Links

• Spec Sheet
• Spec Sheet
