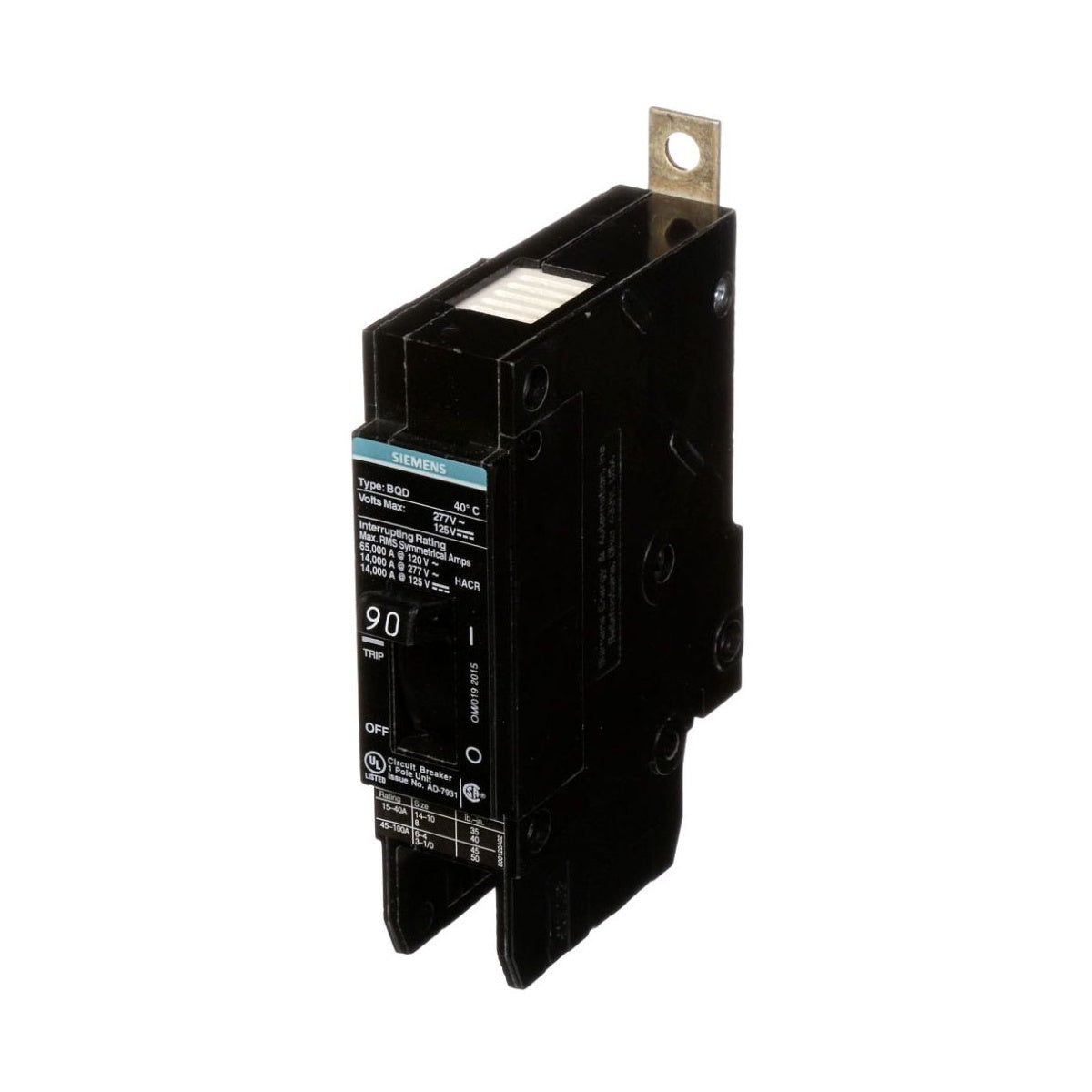

SIEMENS BQD190 BREAKER BQD 1P 90A 277VAC 14KA
SKU: #308618
Part: #BQD190
UPC: 783643277199
SIEMENS BQD190 BREAKER BQD 1P 90A 277VAC 14KA
SKU: #308618
Part: #BQD190
UPC: 783643277199
Description
SIEMENS BQD190 BREAKER BQD 1P 90A 277VAC 14KA Molded Case Circuit Breaker
The SIEMENS BQD190 is a single-pole molded case circuit breaker designed for panelboard mounting. It provides reliable overcurrent protection for electrical distribution systems in commercial and industrial applications. Suitable for use by electrical distributors and lighting solutions providers, this breaker supports a 90 amp continuous current rating at 277 VAC with a 14 kA interrupting capacity, ensuring safe operation in wire and cable installations and switchgear assemblies.
Specifications
- Manufacturer Part #: BQD190
- Number of Poles: 1
- Continuous Current Rating: 90A
- Voltage Rating: 277 VAC
- Interrupting Rating: 14,000 RMS Symmetrical Amps (14 kA)
- Product Weight: 0.639 lbs
- UPC: 783643277199
Features
- Panelboard mounting molded case circuit breaker
- UL and CSA listed for safety and reliability
- HACR rated for HVAC equipment applications
- Compatible with 60/75°C copper and aluminum wire
- Single-pole design suitable for branch circuit protection
