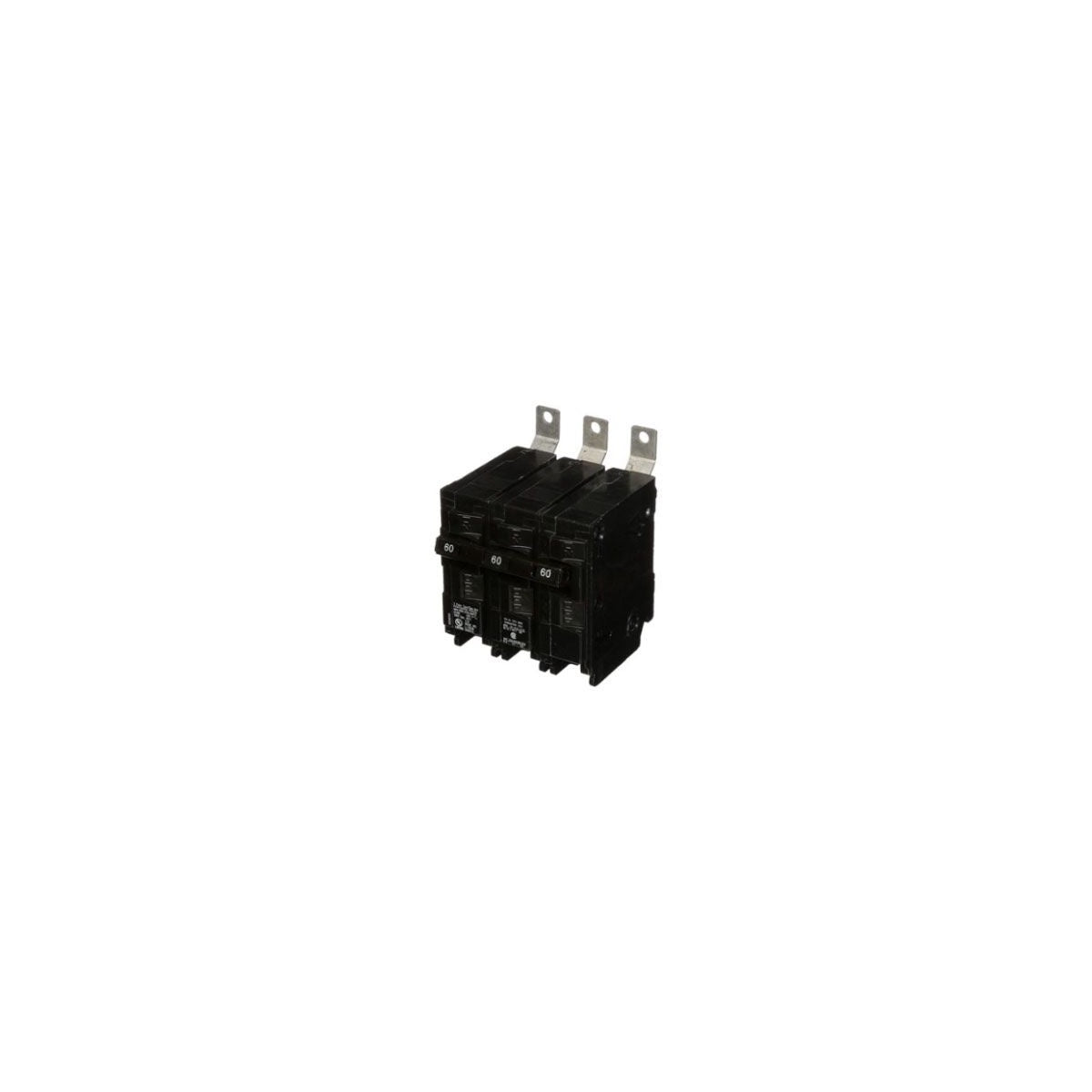

SIEMENS B360H00S07 BREAKER 60A 3P 240V 22K BLH 24V SHUNT Molded Case Circuit Breaker

This Siemens molded case circuit breaker is designed for reliable circuit protection in commercial and industrial electrical installations. It features a 60 ampere rating, 3-pole configuration, and is suitable for 240V applications. The breaker includes a 24V shunt trip accessory factory installed, enhancing its control capabilities. Ideal for electrical distributors and switchgear suppliers requiring robust and certified circuit protection devices.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: B360H00S07
• Number of Poles: 3
• Continuous Current Rating: 60A
• Interrupting Rating: 22,000A IR (BLH type)
• Voltage: 240V
• Product Weight: 1.44 lbs

Features

• Includes factory-installed 24VAC shunt trip for remote breaker control
• Panelboard mounting with INSTA-WIRE technology for fast and secure wiring
• CSA Certified / UL Listed for use on 3-phase grounded ‚ÄúB‚Äù systems
• HACR rated for HVAC applications
• Suitable for frequent switching applications (SWD certified)

Downloads & Links

• Spec Sheet
