SIEMENS 48707-02FE TALON 320A 7J RGLS 1POS LVRBPS MS OH/UG
SKU: #306799
Part: #48707-02FE
UPC: 783643480070
SIEMENS 48707-02FE TALON 320A 7J RGLS 1POS LVRBPS MS OH/UG
SKU: #306799
Part: #48707-02FE
UPC: 783643480070
Description

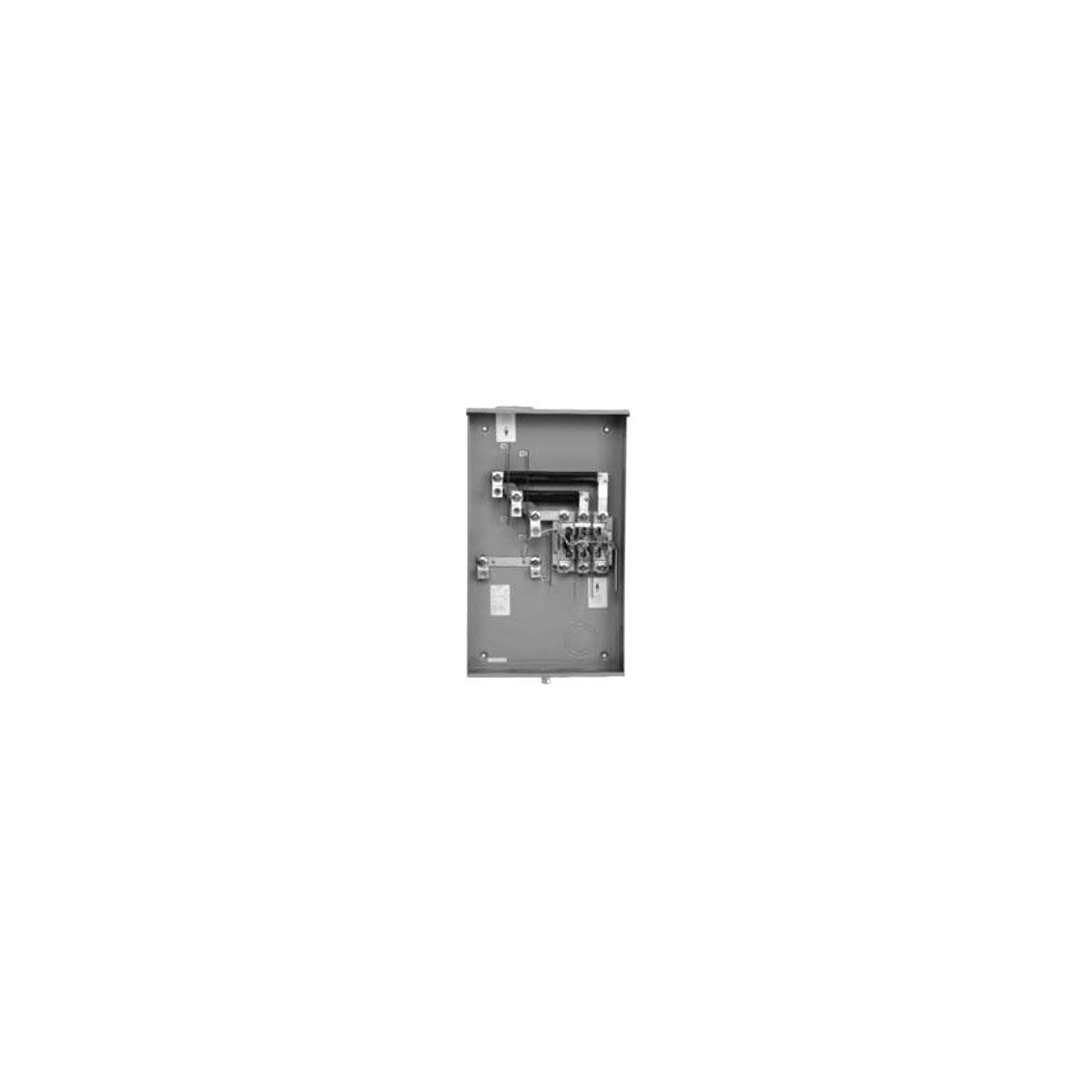

SIEMENS 48707-02FE TALON 320A 7J RGLS 1POS LVRBPS MS OH/UG Electrical Meter Mounting Equipment
The Siemens 48707-02FE Talon is a commercial-grade meter mounting device designed for surface mounting applications. It supports overhead (OH) and underground (UG) cable entry, providing reliable electrical distribution and metering solutions. This product is suitable for electrical distributors and switchgear suppliers requiring robust, high-amperage meter mounting equipment with lever bypass functionality.
Specifications
- Amperage Rating: 320 A
- Number of Cutouts: 9
- Mounting: Surface Mounting
- Enclosure Material: Steel
- Cable Entry: Overhead/Underground (OH/UG)
- Product Weight: 60 lbs
- Manufacturer: Siemens
- Manufacturer Part Number: 48707-02FE
Features
- Large steel enclosure for durability and protection
- Offset design for easier underground wiring, also rated for overhead use
- 320A continuous duty rating for high-load applications
- 100% rated lever bypass with clamping action on meter for secure operation
- Factory-installed lugs or 3/8” stud connection options
- Plated copper current path with silver-brazed connections for enhanced conductivity
- Track-resistant Lexan shield and glass-filled polyester block construction for added safety and durability
