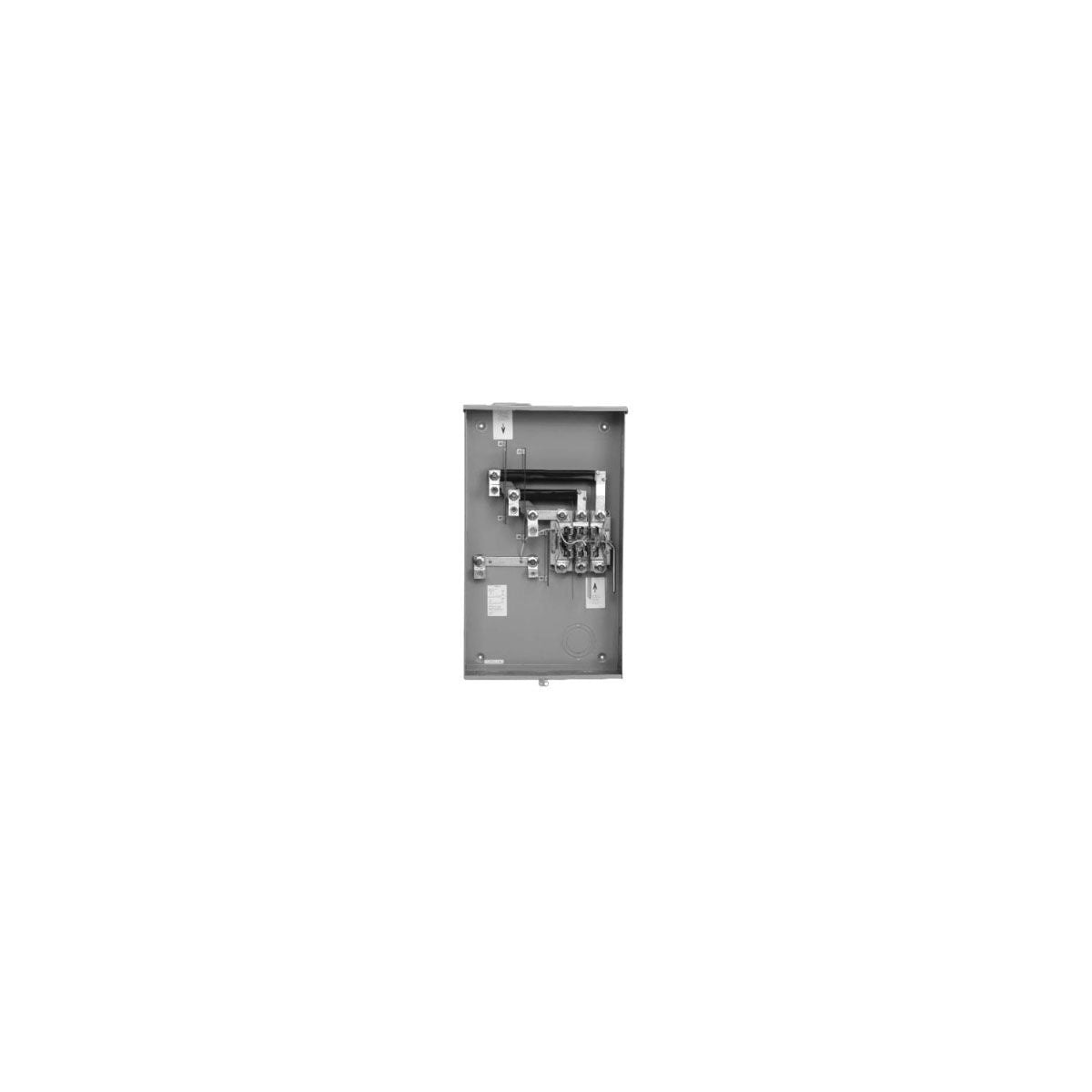

SIEMENS 44707-02FL TALON 320A 7J RGLS 1POS LVRBPS MS OH/UG Electrical Meter Mounting Equipment

The Siemens 44707-02FL Talon is a 320A continuous duty rated meter mounting device designed for commercial electrical applications. This surface-mounting unit is suitable for both overhead (OH) and underground (UG) cable entry, making it versatile for various wiring environments. It is built with a steel enclosure and features a lever bypass with clamping action, providing reliable meter bypass functionality. Ideal for electrical distributors and switchgear suppliers, this product supports efficient and secure wire and cable installation in commercial settings.

Specifications

• Amperage Rating: 320 A
• Mounting: Surface Mounting
• Enclosure Material: Steel
• Cable Entry: Overhead/Underground (OH/UG)
• Number of Cutouts: 9
• Product Weight: 62 lbs

Features

• Large enclosure for ease of installation
• Offset design facilitates easier underground wiring; also rated for overhead use
• Silver-brazed connections ensure durable electrical contact
• 100% rated lever bypass with clamping action on meter
• Factory installed lugs or 3/8‚Äù stud connection options
• Glass-filled polyester block construction inside
• Track-resistant lexan shield for protection
• Plated copper current path for reliable conductivity
• Compatible with 1/2‚Äù or 3/8‚Äù stud models

Downloads & Links

• Spec Sheet
