SIEMENS 40405-02SP TALON 200A 5J RGLS 1POS LVRBPS MS OH/UG
SKU: #306714
Part: #40405-02SP
UPC: 783643184411
SIEMENS 40405-02SP TALON 200A 5J RGLS 1POS LVRBPS MS OH/UG
SKU: #306714
Part: #40405-02SP
UPC: 783643184411
Description

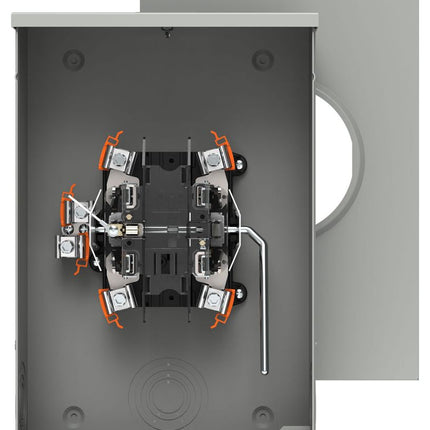

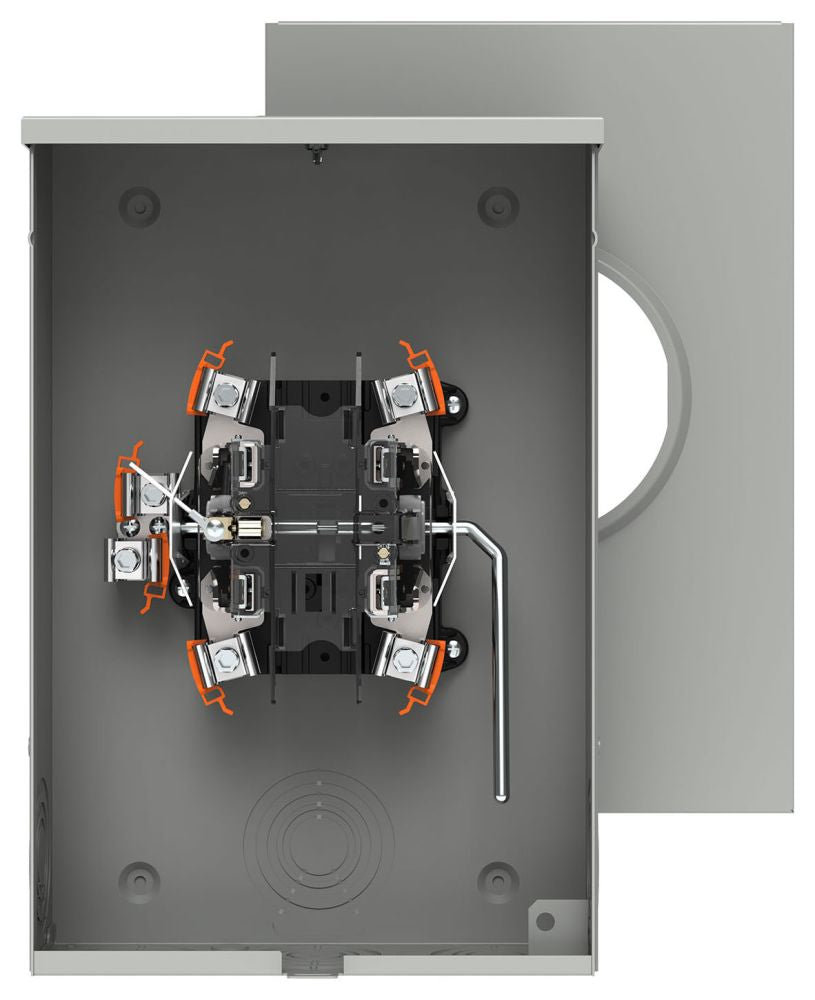

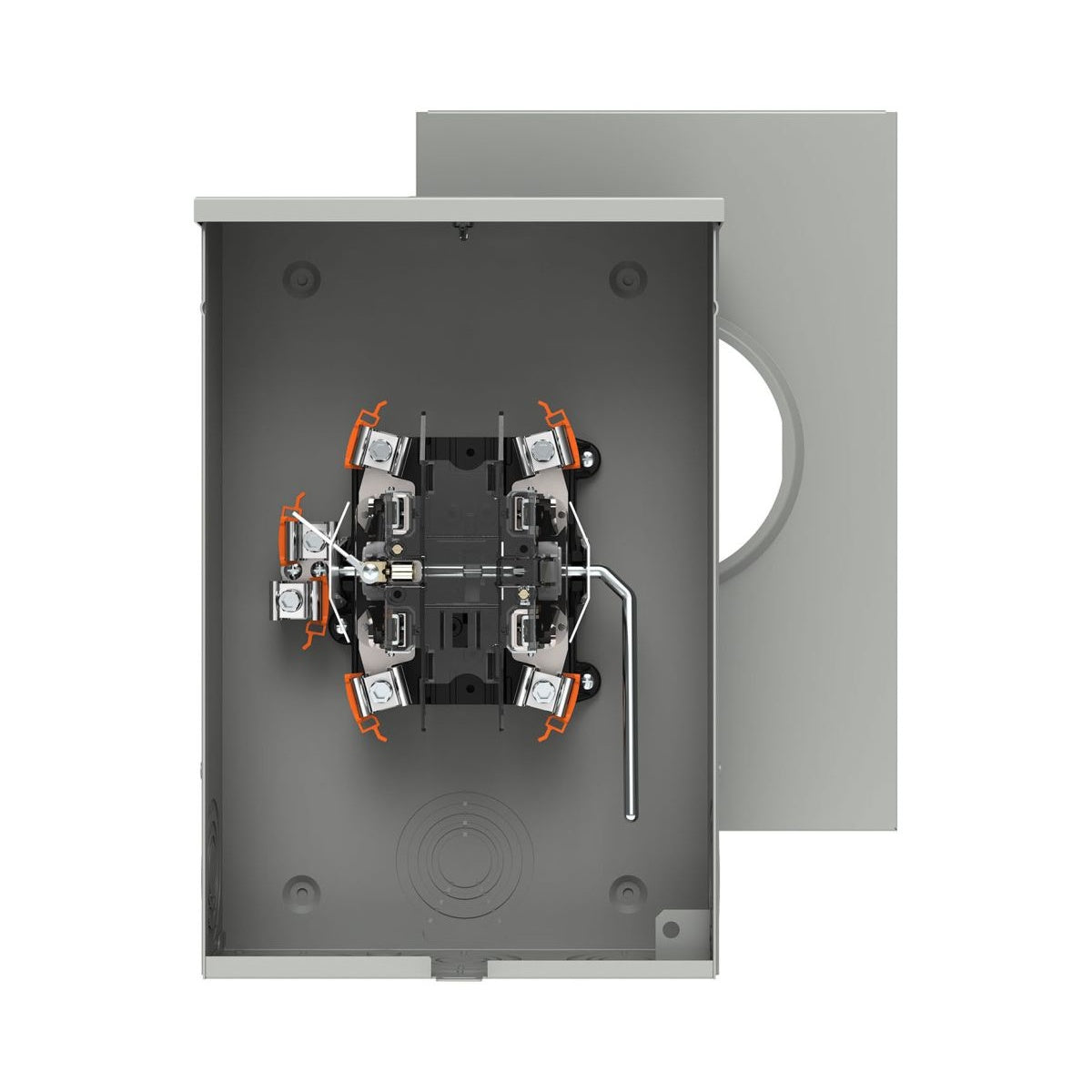

SIEMENS 40405-02SP TALON 200A 5J RGLS 1POS LVRBPS MS OH/UG Lever Bypass Meter Mounting Equipment
The Siemens 40405-02SP Talon is a 200A continuous duty rated meter mounting device designed for commercial electrical applications. It features a 5-terminal clamping jaw lever bypass mechanism suitable for overhead and underground cable entry. This product is ideal for electrical distributors and switchgear suppliers requiring reliable and durable mounting equipment for wire and cable installations.
Specifications
- Application: Commercial
- Amperage Rating: 200 A
- Mounting: Surface Mounting
- Enclosure: Steel
- Cable Entry: Overhead/Underground (OH/UG)
- Number of Cutouts: 8
- Product Weight: 22 lbs
- Dimensions (W x H x D): 13.0 in x 19.0 in x 5.2 in
- Manufacturer: Siemens
- Manufacturer Part #: 40405-02SP
- UPC: 783643184411
Features
- 200A continuous duty rating for reliable performance
- Silver brazed connections ensuring durability and conductivity
- 100% rated lever bypass with clamping action on meter
- Supports lay-in lugs up to 350 kcmil
- Steel enclosure providing robust protection
- 5th terminal positioned at 9 o’clock for flexible installation
- Track resistant Lexan shield for enhanced safety
- Plated copper current path for efficient electrical flow
- Ringless style cover for simplified maintenance and access
