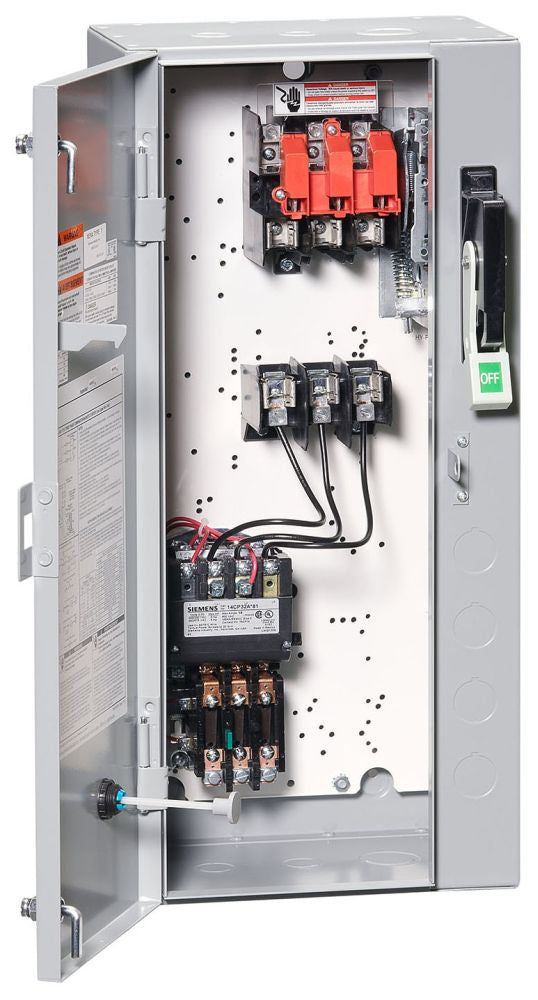

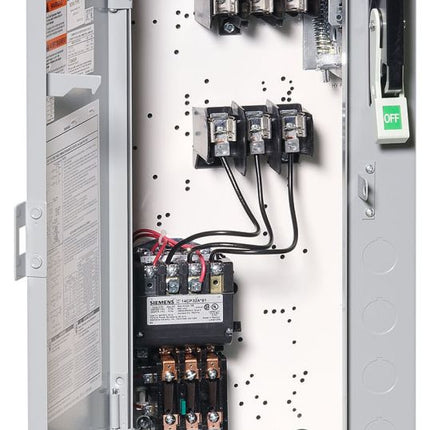

SIEMENS 17CP92BF1081 STARTER-COMBO – Combination Starter

The SIEMENS 17CP92BF1081 STARTER-COMBO is a heavy-duty combination starter designed for motor control applications, commonly used by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. It integrates motor protection, overload relay, and disconnect switch into a single compact enclosure, ensuring compliance with National Electrical Code requirements for motor short circuit protection, personnel safety, and motor overload safeguarding.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 17CP92BF1081
• Product Weight: 39.5 lbs
• Dimensions (W x H x L): 14 in x 11 in x 28 in
• Enclosure Type: NEMA 1 (Standard Width)
• Phase: 3-Phase, 3-Pole
• Disconnect Switch Amp Rating: 60A
• Fuse Clip Size: 30A/600V
• Short Circuit Current Rating: 100kA when protected with Class R fuses to 600V
• UL Listed and CSA Certified (Class 17 Combination Starter)

Features

• Prewired factory-tested combination starter for reduced installation time and assured field performance
• Visible blade disconnect switch for enhanced safety and easy operation
• Heavy-duty quarter-turn disconnect handle with industrial-grade durability
• Cold forming “TOX” manufacturing process for reliable mechanical strength
• Solid-state overload relays standard on sizes 5 through 8 for precise motor overload protection
• Wide range of enclosure types available for varied environmental conditions
• Compact and attractive design compared to separate disconnect and starter units
• Corrosion-resistant finish on enclosure for industrial use
• Meets NEC requirements for motor short circuit protection, personnel safety, and overload safeguarding

Downloads and Links

• SIEMENS 17CP92BF1081 Starter-Combo Product Data Sheet (PDF)
• Wiring Diagram (PDF)
• Installation Instructions (PDF)
