SHR Fuse Holder for Fluorescent Lighting Fixtures and Ballasts

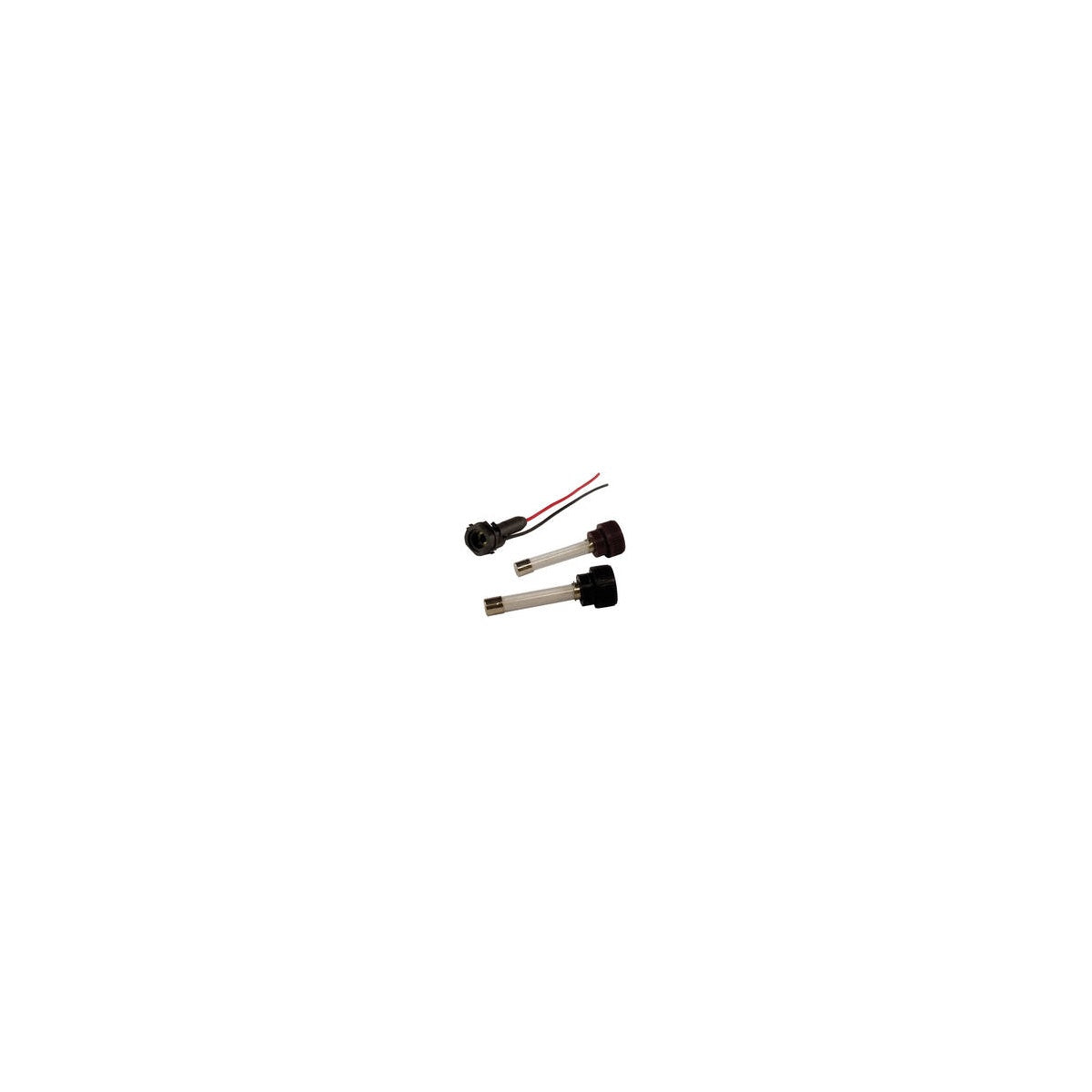

The SHR fuse holder is designed for use with SLR/SMF fuses to protect fluorescent lighting fixtures and ballasts. It is a panel-mounted component suitable for electrical distributors and lighting solutions requiring reliable fuse retention and easy installation. This holder supports single or double wire configurations and features a bayonet connection for secure fuse placement.

Specifications

• Application: Fluorescent lighting fixtures and ballasts
• Amperage Rating: 15 A
• Voltage Rating: 300 VAC
• Withstand Rating: 10kA Interrupting Rating (I.R.)
• Dielectric Strength: 2,000 V
• Mounting: Panel
• Connection: Bayonet
• Body Material: Thermoplastic (150º C RTI)
• Contact Material: Copper Alloy
• Number of Poles: 1
• Dimensions (L x W x H): 2.32 in x 0.875 in x 0.875 in
• Product Weight: 0.0600 lbs

Features

• Integral mounting clip fits standard 7/8” knockout or keyhole punch with anti-rotation
• Superior wire retention with integral wire retention clip for #18 AWG wire
• Single and two wire versions available
• Two load plug-in ports for flexible wiring
• Tin-plated, insulated #18 solid copper wire leads, 6” length
• Thermoplastic insulator rated for 150º C
