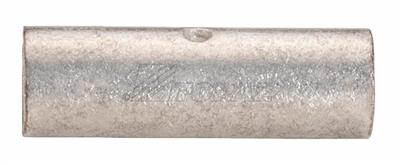

Short Barrel Compression Lug Splices, 2/0 Wire, Black Color Code
SKU: #173901
Part: #3307
UPC: 751338816053
Short Barrel Compression Lug Splices, 2/0 Wire, Black Color Code
SKU: #173901
Part: #3307
UPC: 751338816053
Next day delivery
Description
Short Barrel Compression Lug Splices, 2/0 Wire, Black Color Code – Compression Lug Splices
Topaz’s Short Barrel Compression Lug Splices are designed for heavy duty electrical applications, providing reliable wire connections. Fabricated from seamless, high conductivity copper tubing and tin plated for corrosion resistance, these splices are suitable for use by electrical distributors and switchgear suppliers handling wire and cable installations. The product is UL listed and color coded for easy identification, supporting wire sizes from 8 to 750 MCM.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 3307
- Wire Size: 2/0
- Color Code: Black
- Product Weight: 0.0600 lb
- Length (A): 1.75 inches
- Diameter (B): 0.49 inches
- UPC: 751338816053
- Voltage Rating: Suitable up to 35 KV with proper taping; 5 KV max for bare splice
- Material: Copper
- Finish: Tin plated
Features
- Seamless, high conductivity copper tubing for heavy duty applications
- Tin plated for optimal corrosion resistance
- Color coded for easy wire size identification
- UL listed for safety and compliance
