Description
SHARK4-50NW/D10/E2 LED Linear Washdown Fixture
The SHARK4-50NW/D10/E2 is a 4-foot impact-resistant linear LED washdown fixture designed for demanding environments such as tunnels, stairwells, and other hard-to-reach areas where relamping is difficult and costly. This fixture provides efficient lighting solutions suitable for electrical distributors and lighting solutions providers focusing on durable, wet-location-rated products. It features 0-10V dimming capability and an optional battery backup for emergency lighting, making it a reliable choice for commercial and industrial lighting applications.
Specifications
- Manufacturer: RAB
- Model Number: SHARK4-50NW/D10/E2
- Input Wattage: 48 watts
- Lumens: 6,881 lumens
- Efficacy: 142 lumens per watt
- Color Temperature: 4000 kelvins (Neutral)
- Color Accuracy: 85 CRI
- Lens Material: Textured, diffuse polycarbonate
- Housing Material: IK09 impact-resistant polycarbonate with 5VA flame rating

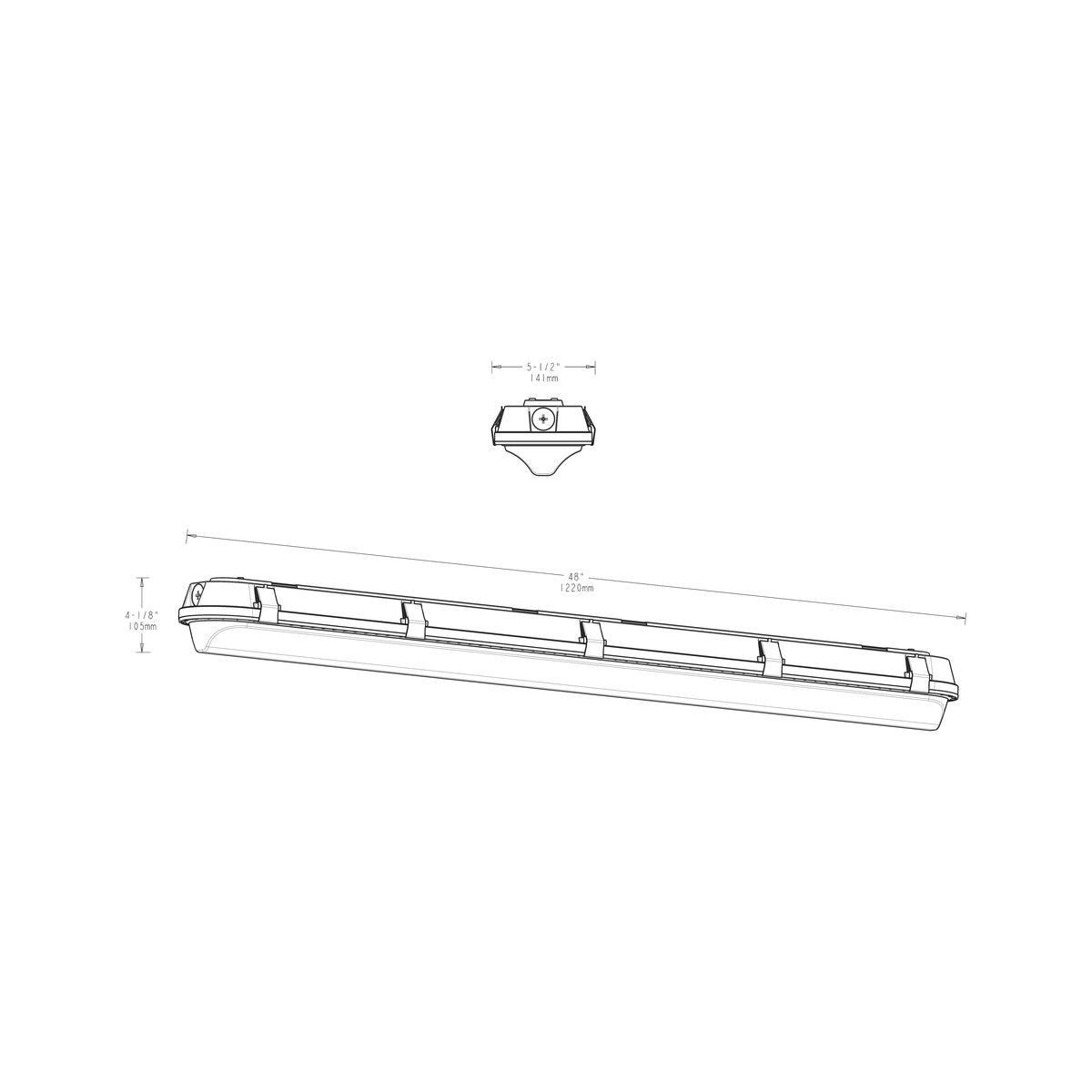

- Length: 48 inches (4 feet)
- Ambient Temperature Rating: Suitable for use up to 104°F (40°C)
- Minimum Starting Temperature: -22°F (-30°C)
- Product Weight: 10 lbs
- UL Listed for wet locations
- IP66 rated for dust and water ingress protection
- NSF Certified by Public Health and Safety
- DLC Listed as ultra-efficient premium product
Features
- Impact-resistant linear washdown design ideal for tunnels and stairwells
- Multiple mounting options including chain, junction box, angled surface mount, and vandal-resistant surface mount
- Quick-mount with stainless steel spring clips and V-Hook with bracket screws included
- Textured, diffuse polycarbonate lens for low glare and maximum protection
- Battery backup model provides 90 minutes of emergency illumination at reduced power
- Long-life, high-efficacy surface-mount LEDs with 100,000-hour lifespan
- Constant current driver with 0-10V dimming compatibility (120-277V)
- Surge protection rated at 4kV
- Designed and tested to meet IESNA LM-79 and LM-80 standards
- 5-year warranty covering light output, color stability, driver performance, and fixture finish
- Formulated finish for high durability and long-lasting color
