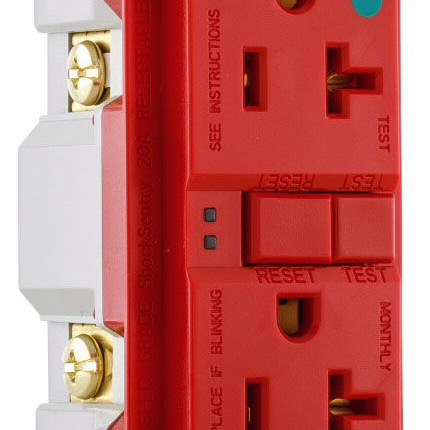

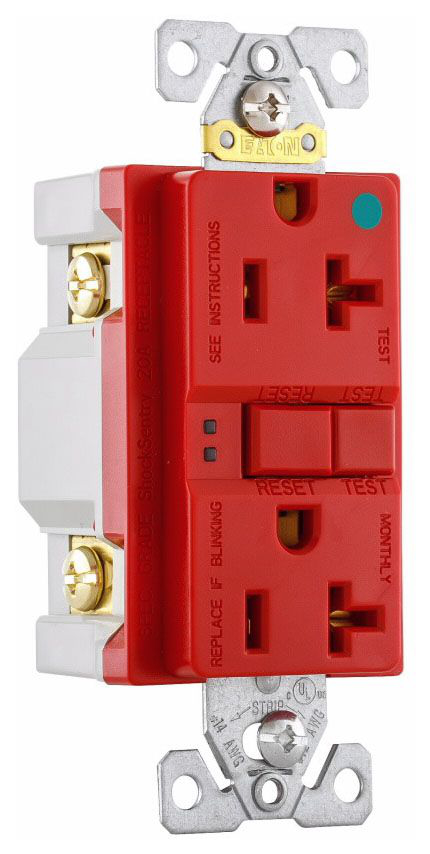

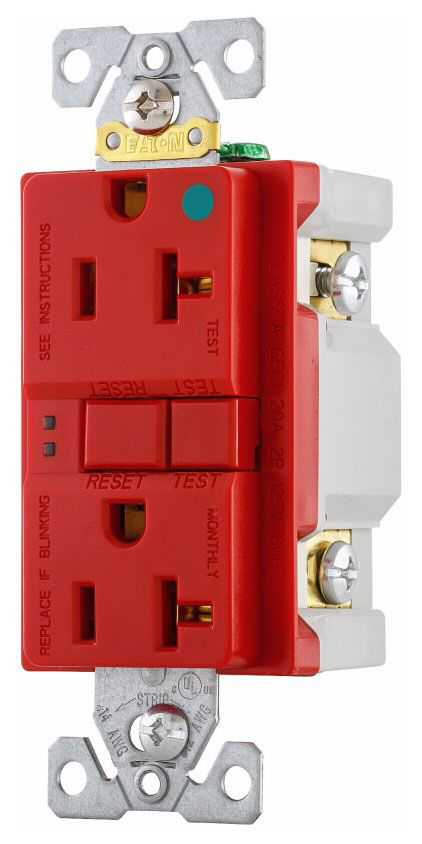

SGFH20RD, GFCI Duplex Receptacle – Hospital Grade Electrical Distributor Solution

The SGFH20RD is a hospital grade GFCI duplex receptacle designed for safety and reliability in critical healthcare and commercial environments. This 20-amp, 125V device offers ground fault circuit interrupter protection with self-test functionality to ensure continuous safety compliance. Ideal for electrical distributors and lighting solutions providers, it supports back and side wiring methods and is suitable for applications requiring robust wire and cable management and switchgear supplier standards.

Specifications

• Current: 20 amperes
• Voltage Rating: 125V
• Device Type: Receptacle
• Number of Poles: 2
• Number of Wires: 3
• Wiring Scheme: Back and side wire
• Material: Brass contacts, polycarbonate face/body
• Color: Red
• Grade: Hospital
• NEMA Configuration: 5-20R
• Dimensions: Height 4.68 in, Length 1.98 in, Width 2.83 in
• Product Weight: 0.4 lb
• Receptacle Type: Two-pole, three-wire grounding
• Certifications: cULus Listed

Features

• Self-test functionality performs periodic automatic tests to ensure GFCI protection integrity
• Visual trip indicator light provides quick notification of tripped or end-of-life condition
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
• Tamper resistant shutters help prevent foreign object insertion
• Lock-out feature prevents damage from miswired line-load connections
• 20A feed-through rating for full downstream protection
• Back wire clamp and side wire terminals for secure and fast installation
• Horizontal test/reset buttons with color-matched aesthetics
• Compliant with UL943 Class A GFCI and UL498 hospital grade requirements
• Supports wiring with #14 to #10 AWG solid or stranded wire
