SG3838AST Straight Type; Die-Cast Zinc Material; Saddle type; UL 3/8 Inch; 1/2 KO
SKU: #73663
Part: #SG3838AST
UPC: 018997362100
SG3838AST Straight Type; Die-Cast Zinc Material; Saddle type; UL 3/8 Inch; 1/2 KO
SKU: #73663
Part: #SG3838AST
UPC: 018997362100
Total Price: $3.23 per each Sold in increments of 25 each
Description

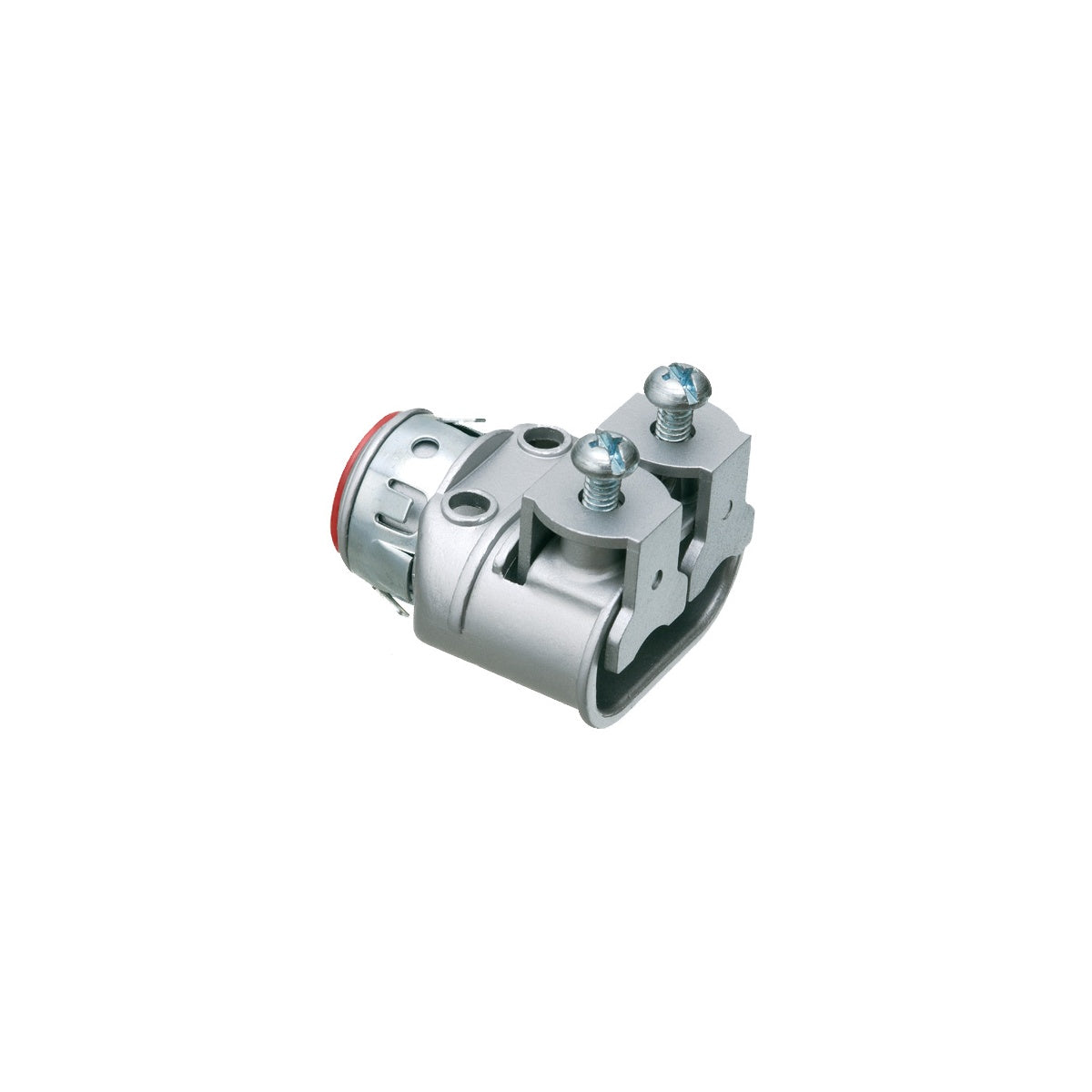

SG3838AST Straight Type Saddle Connector - Die-Cast Zinc Electrical Fitting
The SG3838AST is a duplex saddle grip snap-tite connector designed for secure connections of aluminum and steel Flex, AC, AC90, MCI, and MCI-A cables. Manufactured by Arlington Industries in the United States, this die-cast zinc connector is suitable for electrical distributors and switchgear suppliers requiring reliable cable fastening solutions in lighting and wire and cable applications.
Specifications
- Material: Zinc
- Color: Silver
- Knockout Size: 1/2 inches
- Width: 0.780 inches
- Height: 1.560 inches
- Product Weight: 3.23 lbs
- Manufacturer Part #: SG3838AST
- Country of Origin: United States
- UL Listed for ground fault requirements
Features
- Duplex saddle design with independent securing of two cables, allowing use of different cable sizes
- Snap-Tite® and SNAP2IT® technology for secure cable retention
- Concrete tight when taped, ensuring secure and moisture-resistant installation
- Insulated throat for enhanced safety
- Compatible with aluminum and steel Flex, AC, AC90, MCI, and MCI-A cables
- Patented design for reliable performance
- Made in USA for quality assurance
