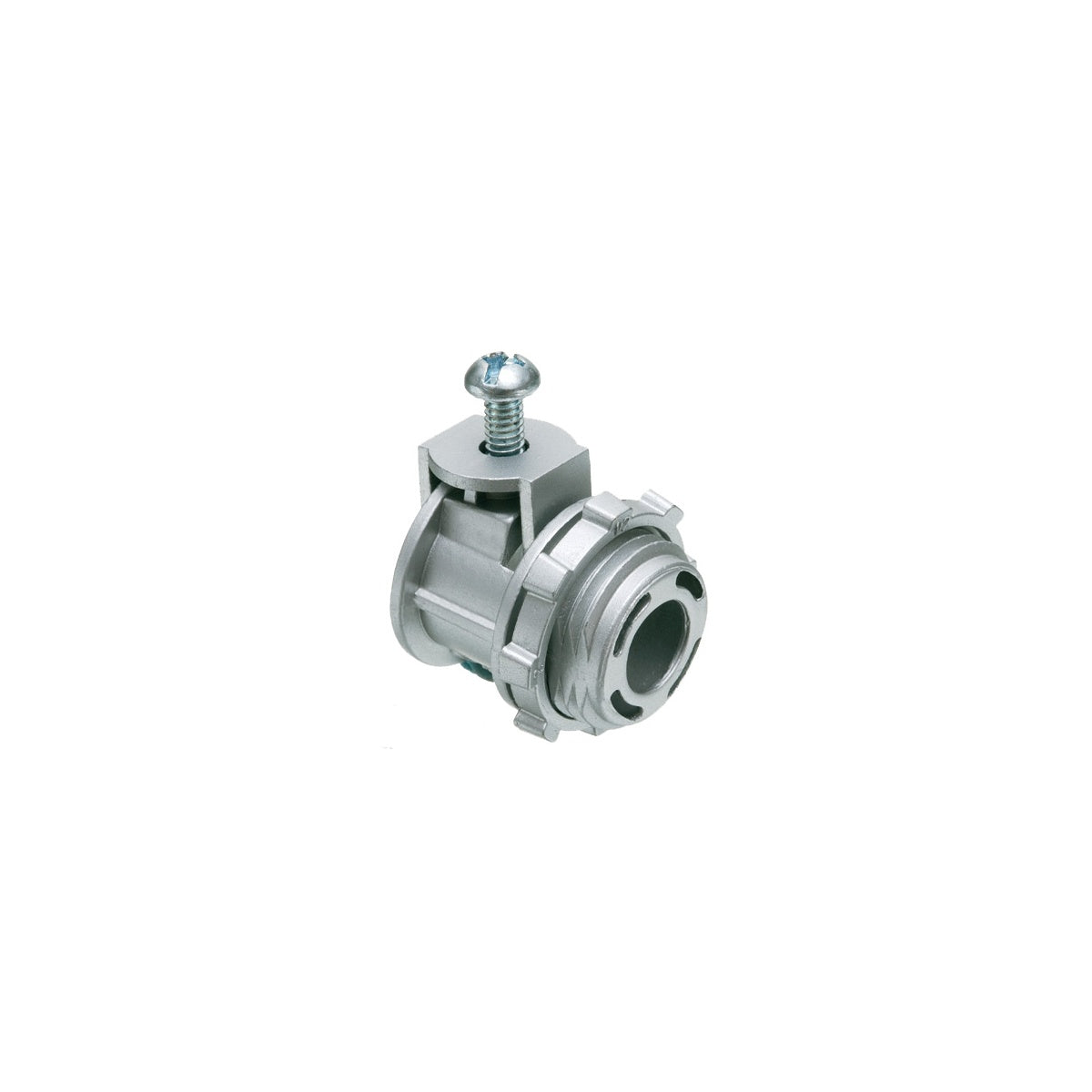

SG38 Zinc die-cast, 1/2" knockout saddle-type connector
SKU: #73652
Part: #SG38
UPC: 018997180650
SG38 Zinc die-cast, 1/2" knockout saddle-type connector
SKU: #73652
Part: #SG38
UPC: 018997180650
Description
SG38 Zinc die-cast, 1/2" knockout saddle-type connector
The SG38 saddle-type connector is designed for secure connections of aluminum and steel Flex, AC, AC90, MCI, MCI-A, and HCF steel and aluminum cables. Manufactured by Arlington Industries, this zinc die-cast connector is suitable for electrical distributors and switchgear suppliers seeking reliable wire and cable solutions. It features a 1/2 inch knockout size and is concrete tight when taped, ensuring durable and safe installations in various electrical applications.
Specifications
- Manufacturer Part #: SG38
- Material: Zinc
- Color: Silver
- Knockout Size: 1/2 inches
- Product Weight: 3.34 lbs
- Cable Range: 0.405 - 0.612 inches
- Dimensions (A x B x C): 1.000" x 0.400" x 1.077"
- End Stop Diameter: 0.400"
- UPC: 018997180650
Features
- Zinc die-cast construction for durability
- Insulated throat for enhanced safety
- Compatible with multiple cable types including Flex, AC, AC90, MCI, MCI-A, and HCF steel/aluminum cables
- Concrete tight when taped to prevent moisture ingress
