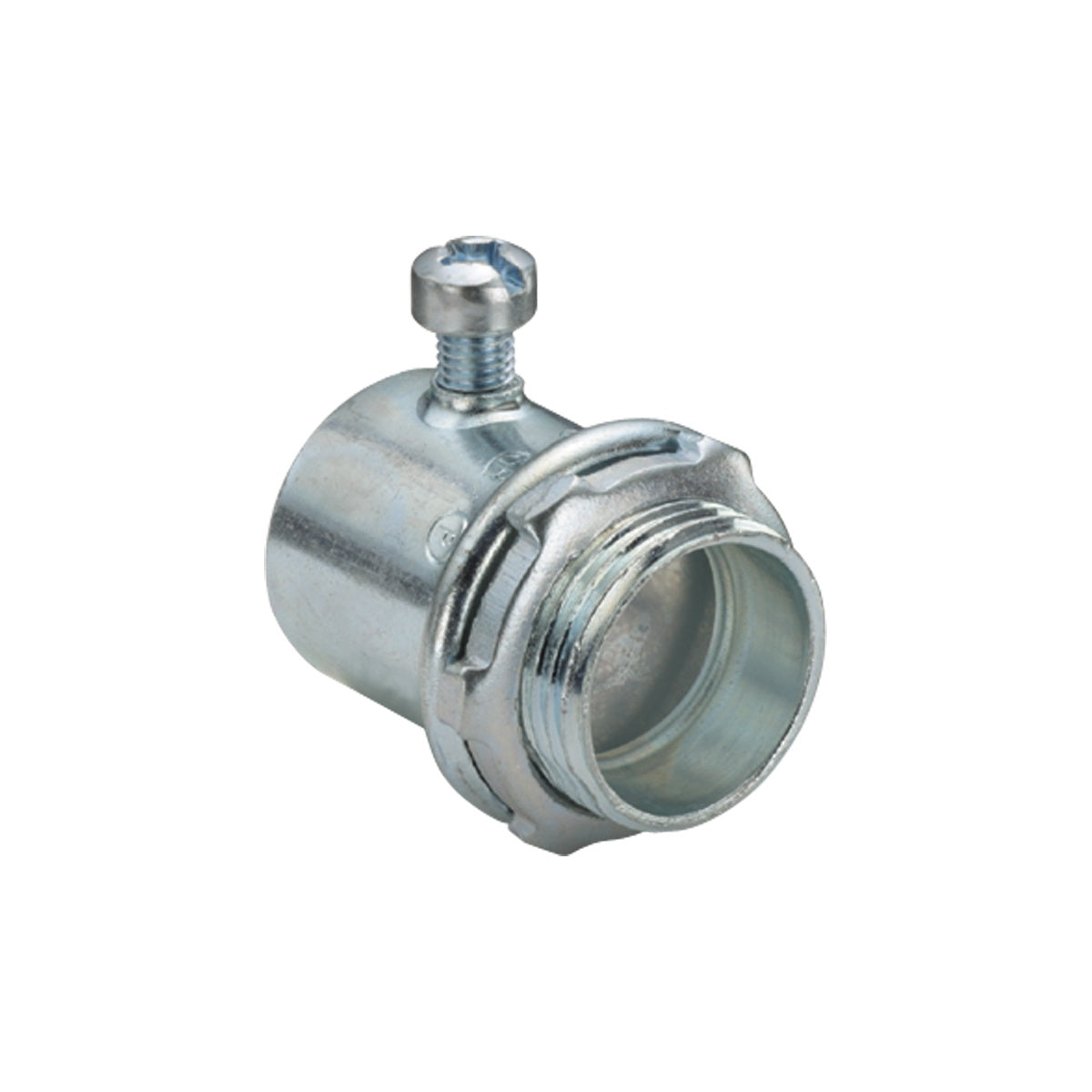

Set Screw EMT Connector 3/4", Zinc Plated Steel – EMT Connector

The Bridgeport Set Screw EMT Connector 3/4" is designed to securely join electrical metallic tubing (EMT) to electrical boxes or enclosures. This fitting provides a concrete-tight seal, making it suitable for demanding electrical installations. Constructed from steel with a zinc electroplated finish, it offers strength and corrosion resistance for reliable performance in harsh environments. The connector features a tri-drive slot/Phillips/Robertson head set screw for easy and secure attachment of the tubing, complemented by a fitted locknut for mounting to a 3/4" knockout. This product is UL Listed under File No. E24001, supporting compliance and safety in electrical distribution and switchgear applications.

Specifications

• Material: Steel
• Finish: Zinc Electroplated
• Size: 3/4"
• Length: 1.5 in
• Width: 1.25 in
• Weight: 0.1172 lb
• Application: Set screw type fitting used to join EMT to box or enclosure. Concrete-tight.
• Insulation: None
• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 231
• Country of Origin: India
• UL Listing: File No. E24001

Features

• Tri-drive slot/Phillips/Robertson head set screw for secure tubing attachment
• Fitted locknut creates a concrete-tight seal on 3/4" knockout
• Zinc plating enhances corrosion resistance
• Steel construction provides durability and strength
• Compatible with electrical metallic tubing (EMT) in trade sizes 1/2" to 4"
