Set Screw EMT Connector 2", Die Cast Zinc
SKU: #328812
Part: #235-DC2
UPC: 781747152350
Set Screw EMT Connector 2", Die Cast Zinc
SKU: #328812
Part: #235-DC2
UPC: 781747152350
Description

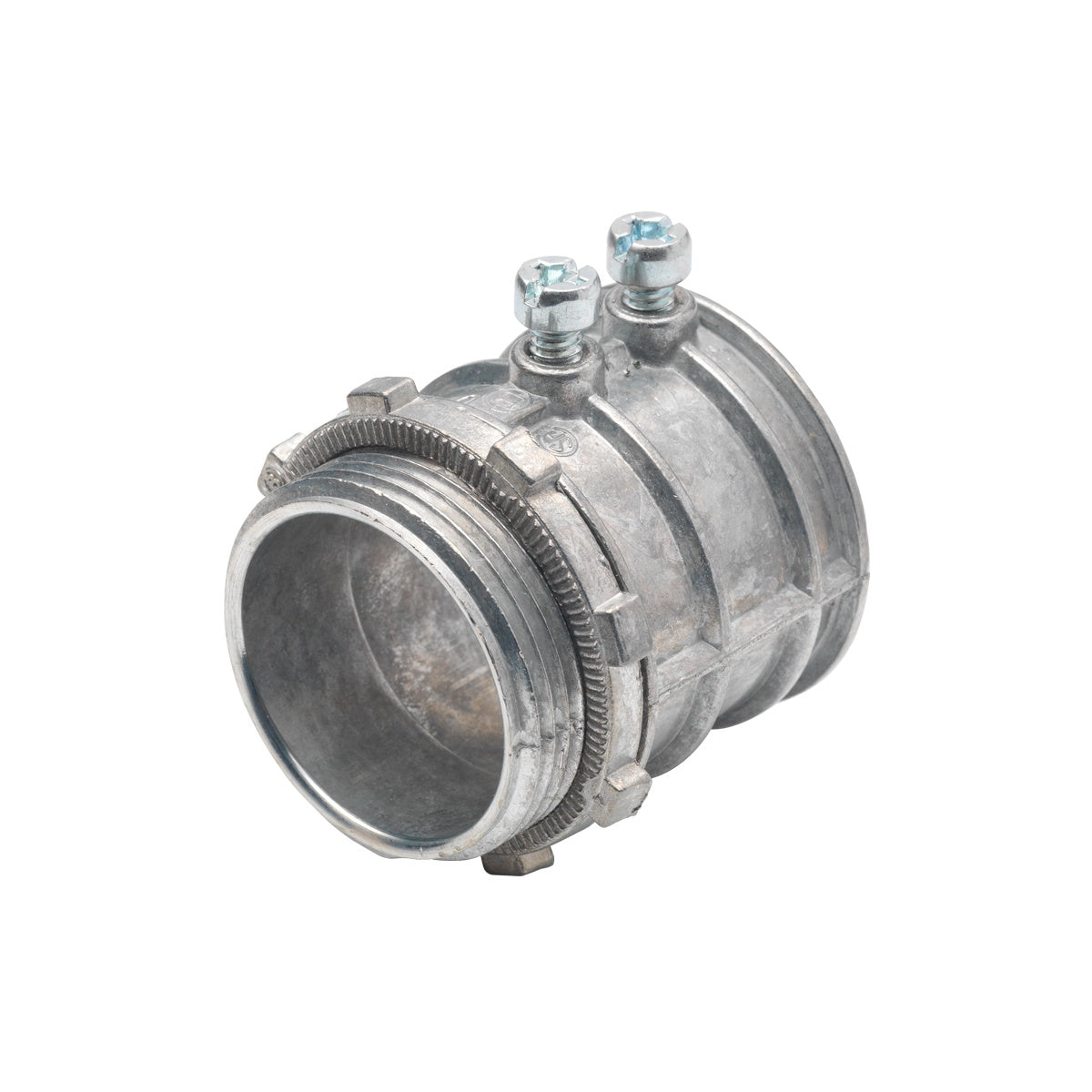

Set Screw EMT Connector 2" Die Cast Zinc – Electrical Metallic Tubing Connector
The Bridgeport Fittings Set Screw EMT Connector 2" is designed to securely join electrical metallic tubing (EMT) to electrical boxes or enclosures. This connector is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable fittings. Constructed from die cast zinc with a ball burnish finish, it offers precise fit, corrosion resistance, and durability for demanding electrical installations. The connector includes tri-drive slot/Phillips/Robertson head set screws for secure attachment and a locknut that creates a concrete-tight seal when installed in a 2" knockout.
Specifications
- Material: Zinc Die Cast
- Finish: Ball burnish
- Size: 2 inches
- Length: 2.56 in
- Width: 2.56 in
- Weight: 0.5183 lbs
- Insulation: None
- UL Listed: File No. E24001
- Made in USA: Yes
- Manufacturer Part #: 235-DC2
- Country of Origin: United States
Features
- Set screw type fitting for secure attachment of EMT to boxes or enclosures
- Die cast zinc construction provides excellent corrosion resistance
- Tri-drive slot/Phillips/Robertson head set screws for easy installation
- Includes locknut for concrete-tight seal in 2" knockouts
- UL Listed for use with steel and aluminum EMT sizes 2" through 4"
- Compatible with electrical metallic tubing in various trade sizes
