Morris Products
Service Post Connectors - 2 Wire #12 - #2
SKU: #276534
Part: #90383
UPC: 601986903837
Description

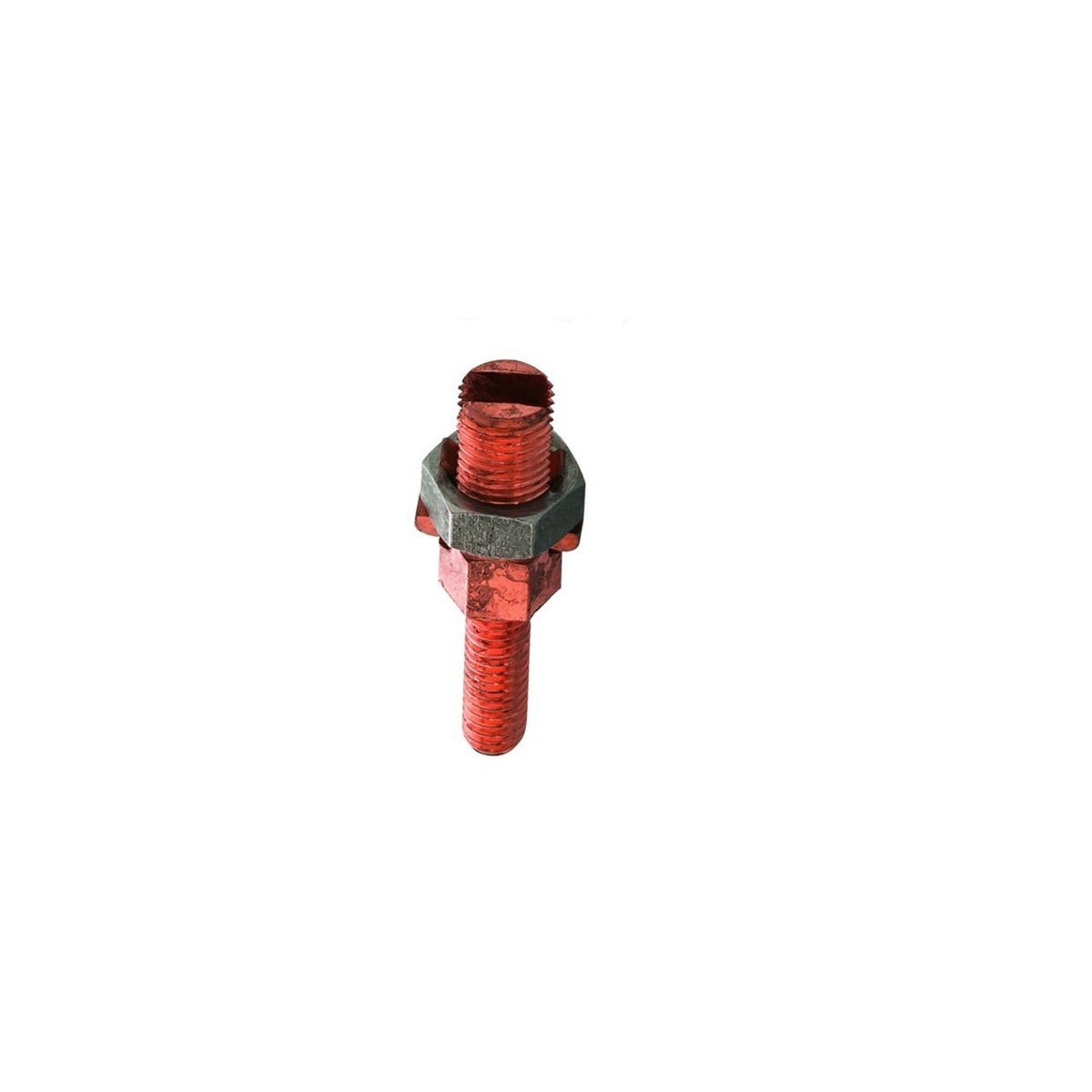

Service Post Connectors - 2 Wire #12 - #2 for Electrical Grounding
Service Post Connectors designed for grounding two copper conductors ranging from wire sizes #12 to #2. These connectors are intended for use by electrical distributors and switchgear suppliers to securely ground wires to steel structures, transformers, fence posts, steel bars, or plates. Constructed from high-strength electrolytic copper, they provide reliable electrical continuity and corrosion resistance, suitable for direct burial and grounding/bonding applications in earth or concrete.
Specifications
- Material: Copper
- Conductor Size: Two wires from #12 to #2
- Length: 2.38 inches
- External Thread: 3/8" x 16 UNC
- Internal Thread: 9/16" x 18 UNF
- Product Weight: 0.4650 lbs
- Manufacturer Part #: 90383
Features
- Used to ground two wires to steel structures, transformers, fence posts, steel bars, or plates
- High strength electrolytic copper construction
- UL 467 listed for direct burial and grounding/bonding applications in earth or concrete
- cULus listed for safety and compliance
