Morris Products
Service Post Connectors - 2 Wire #10 - 4/0
SKU: #276541
Part: #90387
UPC: 601986903875
Morris Products
Service Post Connectors - 2 Wire #10 - 4/0
SKU: #276541
Part: #90387
UPC: 601986903875
Next day delivery
Description

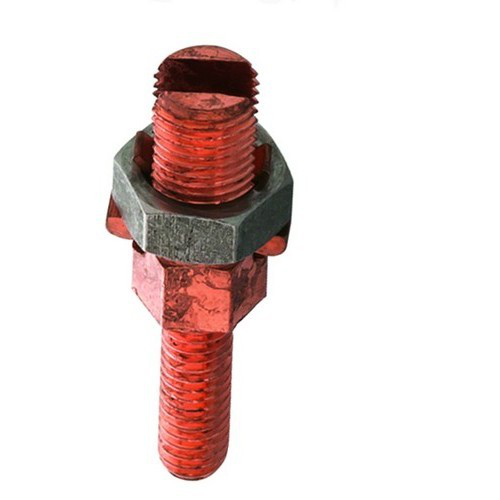

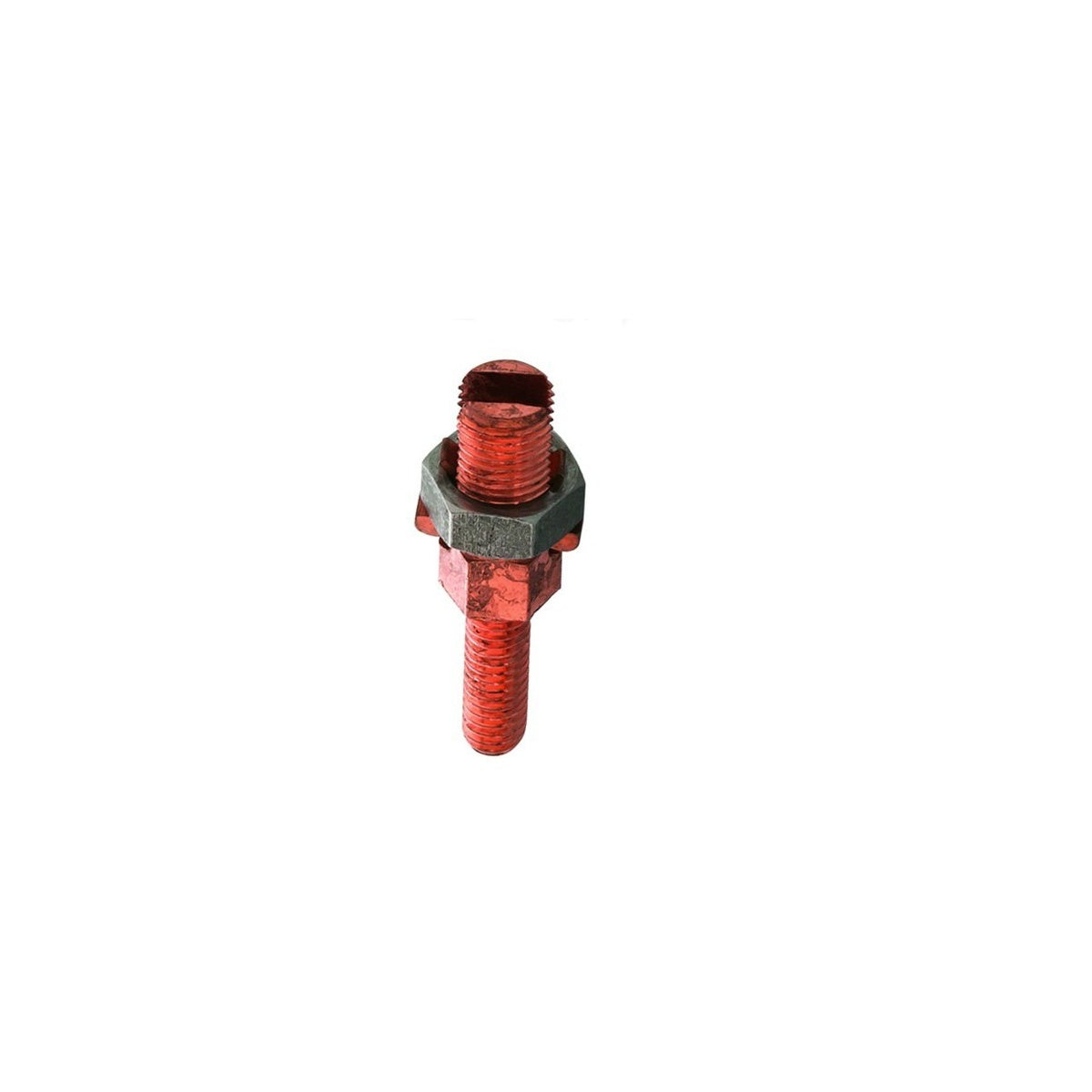

Service Post Connectors - Copper Electrical Connectors for Wire and Cable Grounding
Service Post Connectors by Morris Products are designed for grounding two copper conductors to steel structures, transformers, fence posts, steel bars, or plates. These connectors are suitable for electrical distributors and switchgear suppliers requiring reliable grounding solutions in lighting and electrical installations. They are UL 467 listed for direct burial and grounding/bonding applications in earth or concrete, ensuring compliance with industry safety standards.
Specifications
- Material: Copper
- Conductor Size Range: Two wires from #10 to 4/0
- Length: 3.76 inches
- Nut Size: 1.12 inches
- External Thread: 5/8” x 11 UNC
- Internal Thread: 1-1/8” x 11 UNF
- Product Weight: 0.72 lbs
- UL Listing: UL 467 for direct burial and grounding/bonding
- cULus Listed
Features
- High strength electrolytic copper construction for durability and conductivity
- Designed for grounding two copper conductors securely to steel components
- Suitable for direct burial applications in earth or concrete environments
- Compliance with UL 467 and cULus standards for grounding and bonding
