Morris Products
Service Post Connectors - 2 Wire #10 - 2/0
SKU: #276539
Part: #90386
UPC: 601986903868
Morris Products
Service Post Connectors - 2 Wire #10 - 2/0
SKU: #276539
Part: #90386
UPC: 601986903868
Description

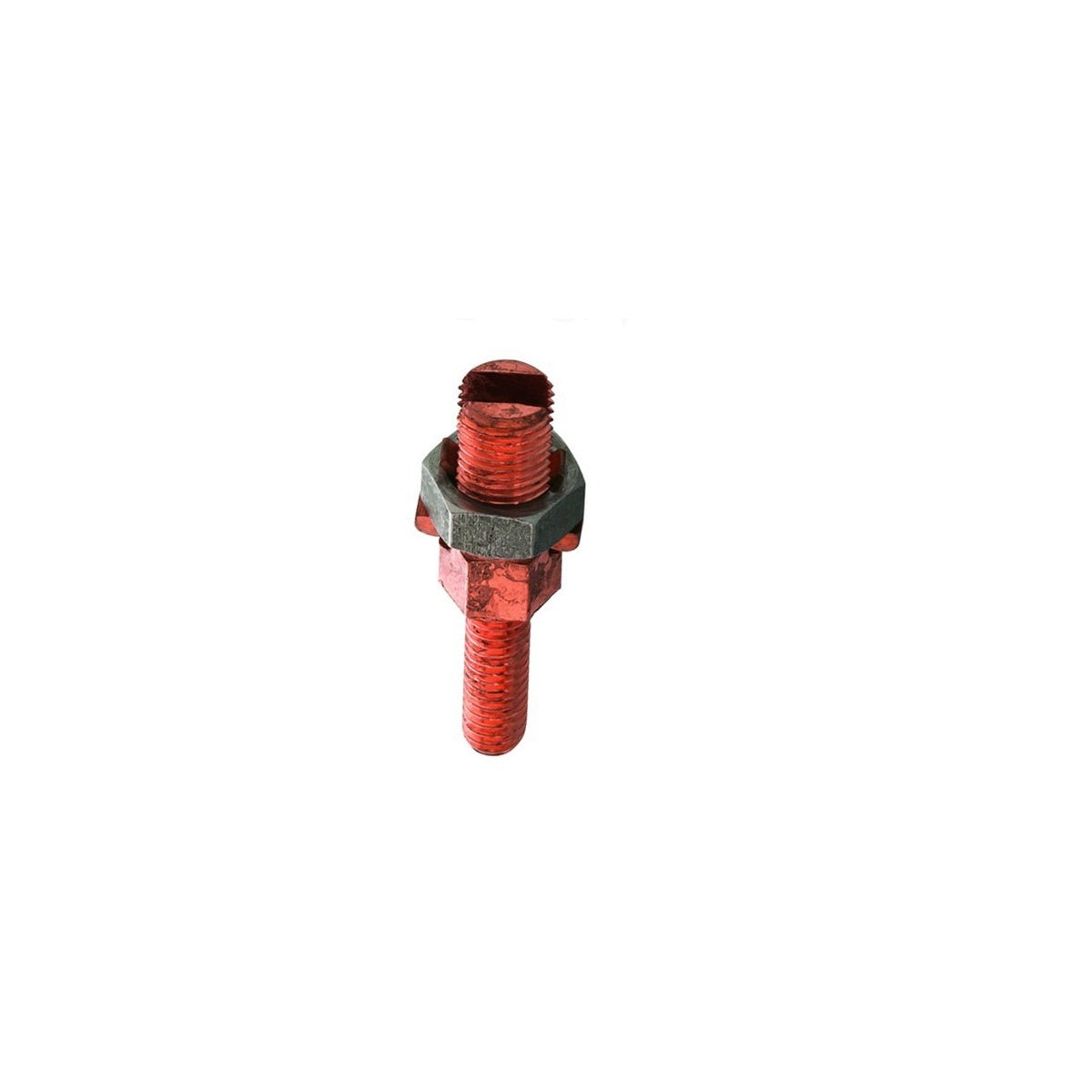

Service Post Connectors - 2 Wire #10 - 2/0 Copper Electrical Connectors
Service Post Connectors by Morris Products are designed for grounding two-wire copper conductors ranging from #10 to 2/0 wire sizes. These connectors are suitable for use by electrical distributors and switchgear suppliers in grounding applications involving steel structures, transformers, fence posts, steel bars, or plates. Manufactured from high-strength electrolytic copper, they provide reliable electrical conductivity and durability for direct burial and grounding/bonding installations in earth or concrete.
Specifications
- Material: Copper
- Conductor Size: Two wires from #10 to 2/0
- Manufacturer Part #: 90386
- Product Weight: 0.57 lbs
- Nut Size: 0.87 inches
- Length: 3.15 inches
- External Thread: 1/2” x 13 UNC
- Internal Thread: 7/8” x 14 UNF
Features
- Used to ground two wires to steel structures, transformers, fence posts, steel bars, or plates
- High strength electrolytic copper construction
- UL 467 Listed for direct burial and grounding/bonding applications in earth or concrete
- cULus Listed for safety and compliance
