Description

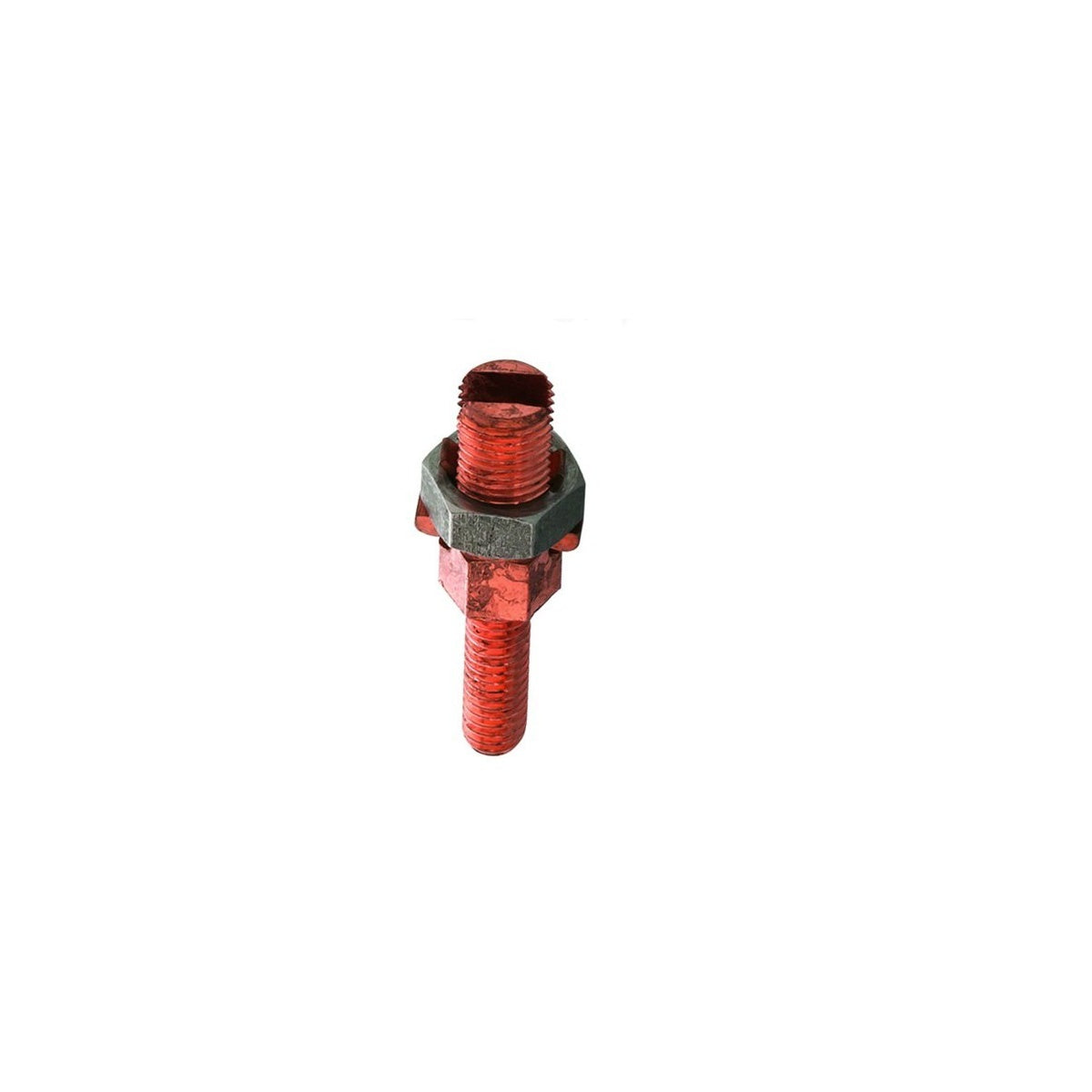

Service Post Connectors - 2 Wire #10 - 1/0 Copper Electrical Connectors
Service Post Connectors are designed for grounding two copper conductors, ranging from #10 to 1/0 wire sizes. These connectors are used by electrical distributors, lighting solutions providers, and switchgear suppliers for secure grounding of steel structures, transformers, fence posts, steel bars, or plates. Constructed from high-strength electrolytic copper, they ensure reliable electrical bonding in demanding applications.
Specifications
- Material: Copper
- Conductor Size: Two wires from #10 to 1/0
- Length: 2.93 inches
- External Thread: 1/2” x 13 UNC
- Internal Thread: 3/4” x 16 UNF
- Product Weight: 0.63 lbs
- Manufacturer Part #: 90385
Features
- Used to ground two wires to steel structures, transformers, fence posts, steel bars, or plates
- High strength electrolytic copper construction for durability and conductivity
- UL 467 Listed for direct burial and grounding/bonding applications in earth or concrete
- cULus Listed for safety and compliance
