Morris Products
Service Post Connectors - 1 Wire #8 - #6
SKU: #276507
Part: #90369
UPC: 601986903691
Morris Products
Service Post Connectors - 1 Wire #8 - #6
SKU: #276507
Part: #90369
UPC: 601986903691
Next day delivery
Description

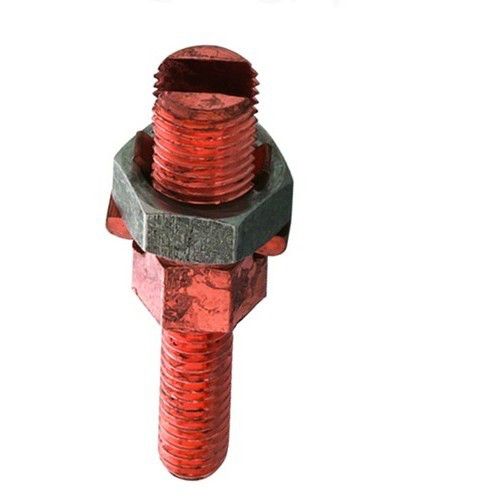

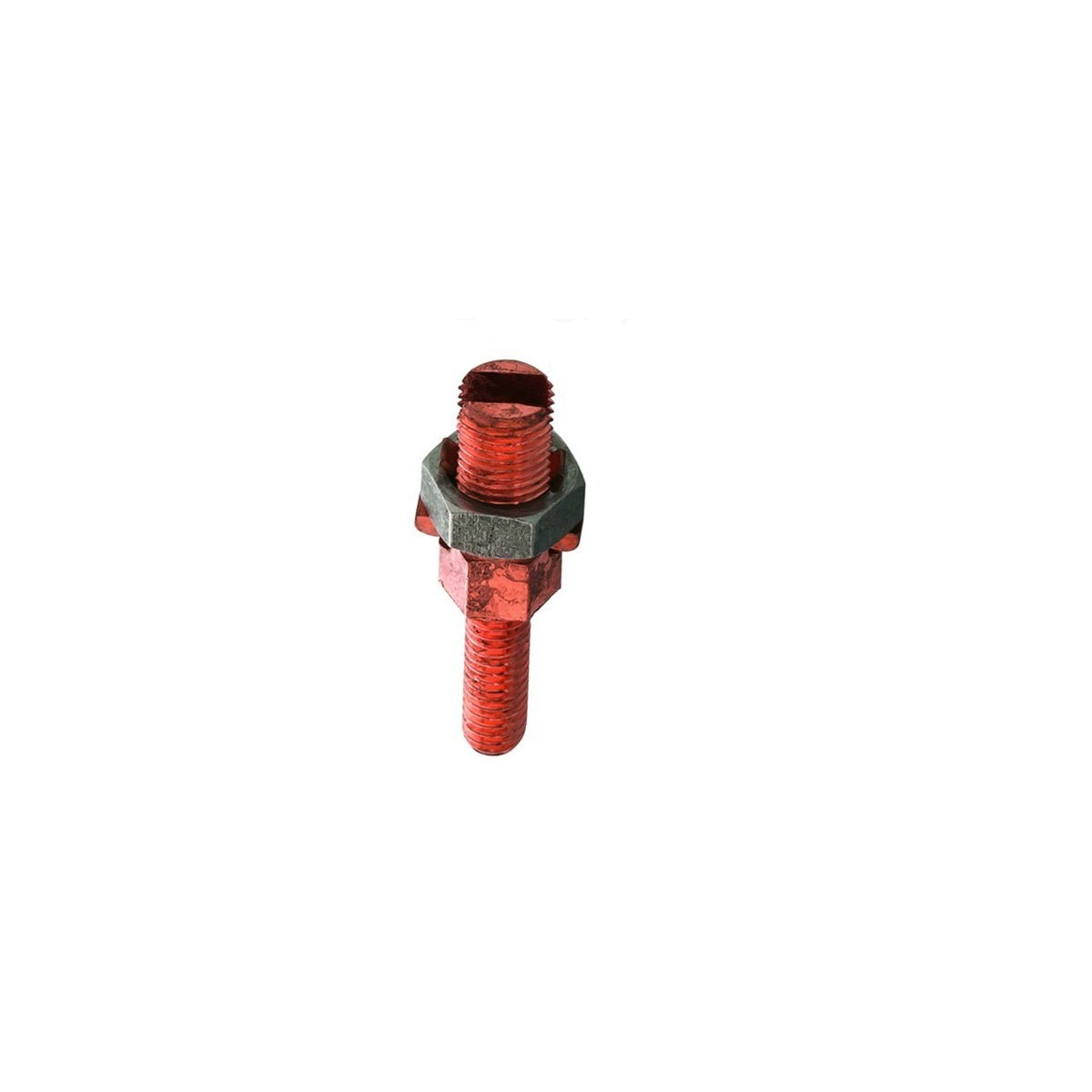

Service Post Connectors - Copper Electrical Connectors for Wire #8 to #6
Service Post Connectors by Morris Products are designed for grounding copper conductors ranging from wire sizes #8 to #6. These connectors provide reliable electrical connections for grounding one wire to steel structures, transformers, fence posts, steel bars, or plates. Suitable for use by electrical distributors and switchgear suppliers, they support grounding and bonding applications in earth or concrete, meeting UL 467 and cULus listings for direct burial.
Specifications
- Material: Copper
- Conductor Size Range: #8 to #6
- Manufacturer Part #: 90369
- Product Weight: 0.2400 lbs
- Nut Size: 0.43 inches
- Length: 1.89 inches
- External Thread: 1/4” x 20 UNC
- Internal Thread: 7/16” x 20 UNF
Features
- High strength electrolytic copper construction
- UL 467 listed for grounding and bonding applications
- cULus listed for safety and compliance
- Suitable for direct burial in earth or concrete
- Designed to ground one wire to steel structures and related equipment
