Morris Products
Service Post Connectors - 1 Wire #4 - 2/0
SKU: #276526
Part: #90373
UPC: 601986903738
Morris Products
Service Post Connectors - 1 Wire #4 - 2/0
SKU: #276526
Part: #90373
UPC: 601986903738
Description

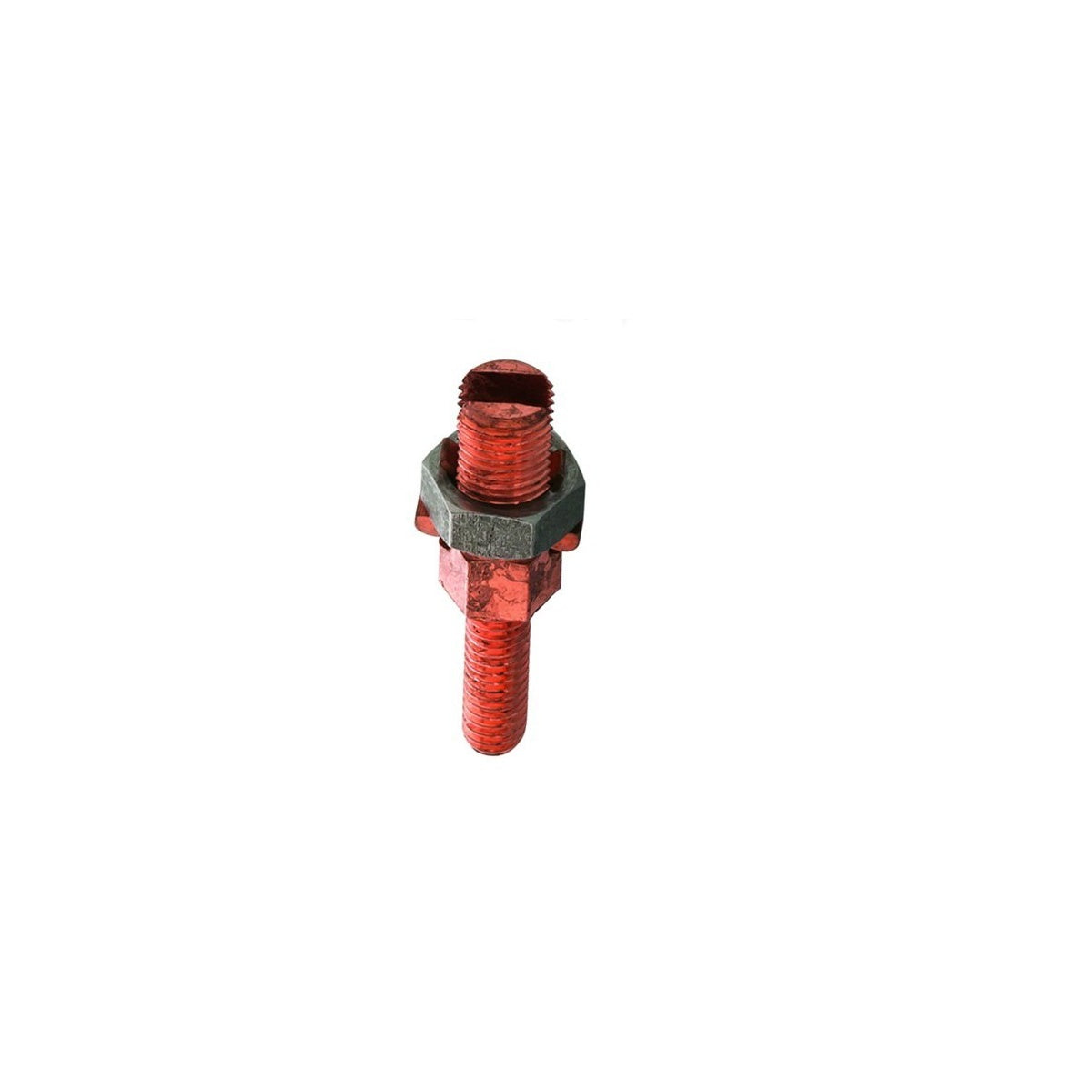

Service Post Connectors - Copper Electrical Connectors
Service Post Connectors designed for grounding one wire ranging from size #4 to 2/0 copper conductors. These connectors are used to ground wires to steel structures, transformers, fence posts, steel bars, or plates. Suitable for electrical distributors and switchgear suppliers requiring reliable grounding solutions in wire and cable applications.
Specifications
- Material: Copper
- Conductor Size: 1 Wire #4 - 2/0
- Product Weight: 0.5700 lbs
- Manufacturer Part #: 90373
- Nut Size: 0.75 inches
- Length: 2.59 inches
- External Thread: 1/2” x 13 UNC
- Internal Thread: 3/4” x 16 UNF
Features
- Used to ground one wire to steel structures, transformers, fence posts, steel bar, or plate
- High strength electrolytic copper construction
- UL 467 listed for direct burial and grounding/bonding applications in earth or concrete
- cULus listed for safety and compliance
