Morris Products
Service Post Connectors - 1 Wire #14 - #8
SKU: #276505
Part: #90368
UPC: 601986903684
Morris Products
Service Post Connectors - 1 Wire #14 - #8
SKU: #276505
Part: #90368
UPC: 601986903684
Description

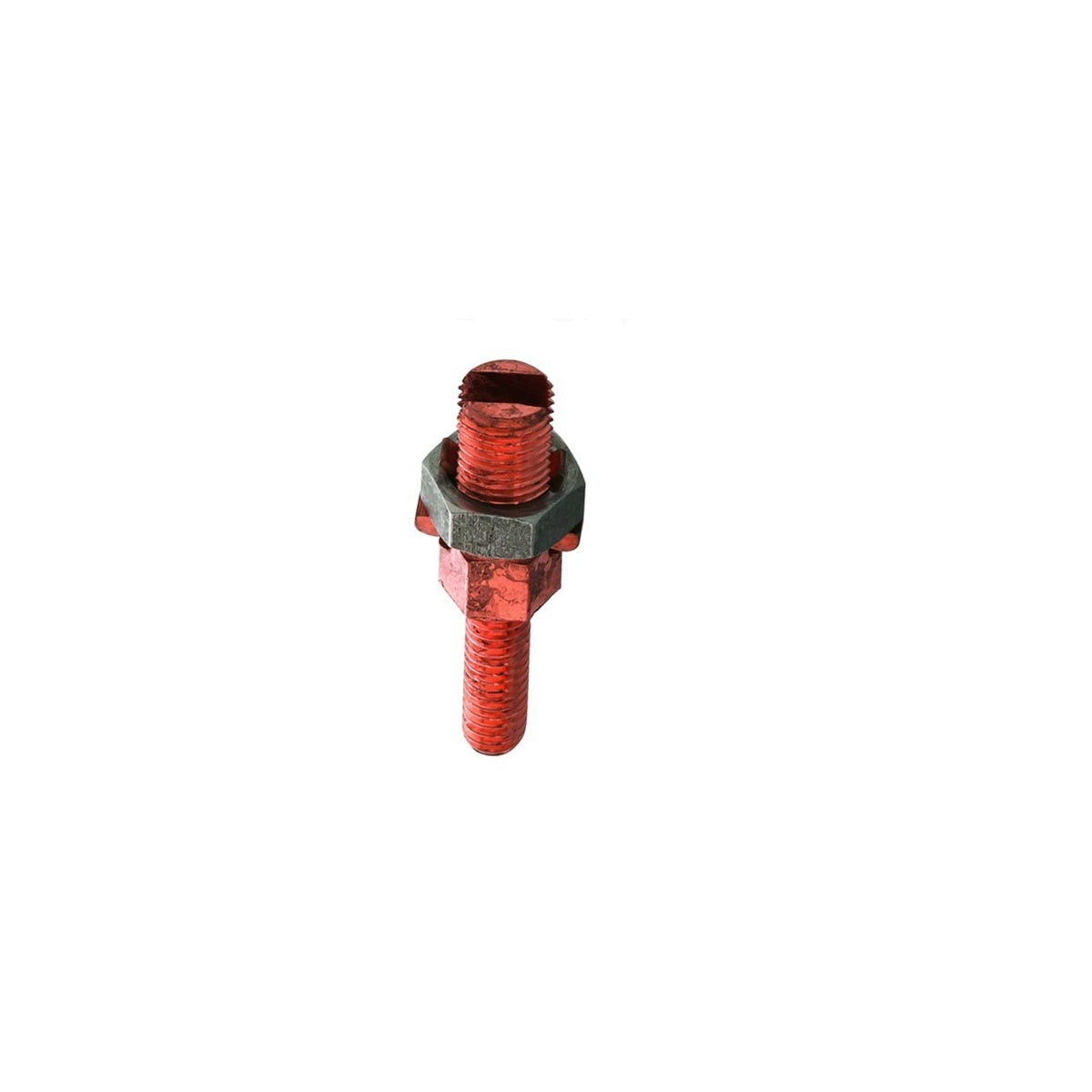

Service Post Connectors - 1 Wire #14 - #8 Copper Electrical Connectors
Service Post Connectors are designed for grounding one wire to steel structures, transformers, fence posts, steel bars, or plates. These connectors are made of high-strength electrolytic copper, suitable for grounding and bonding applications in electrical distribution and lighting solutions. They are UL 467 listed for direct burial and grounding in earth or concrete, making them reliable components for wire and cable installations in various industrial and commercial electrical systems.
Specifications
- Material: Copper
- Conductor Size Range: #14 to #8 wire
- Manufacturer Part Number: 90368
- Product Weight: 0.2250 lbs
- External Thread: 1/4” x 20 UNC
- Internal Thread: 3/8” x 24 UNF
- Length: 1.69 inches
- Nut Size: 0.37 inches
- UPC: 601986903684
Features
- Used to ground one wire to steel structures, transformers, fence posts, steel bars, or plates
- High strength electrolytic copper construction
- UL 467 listed for direct burial and grounding/bonding applications in earth or concrete
- cULus listed for safety and compliance
