Morris Products

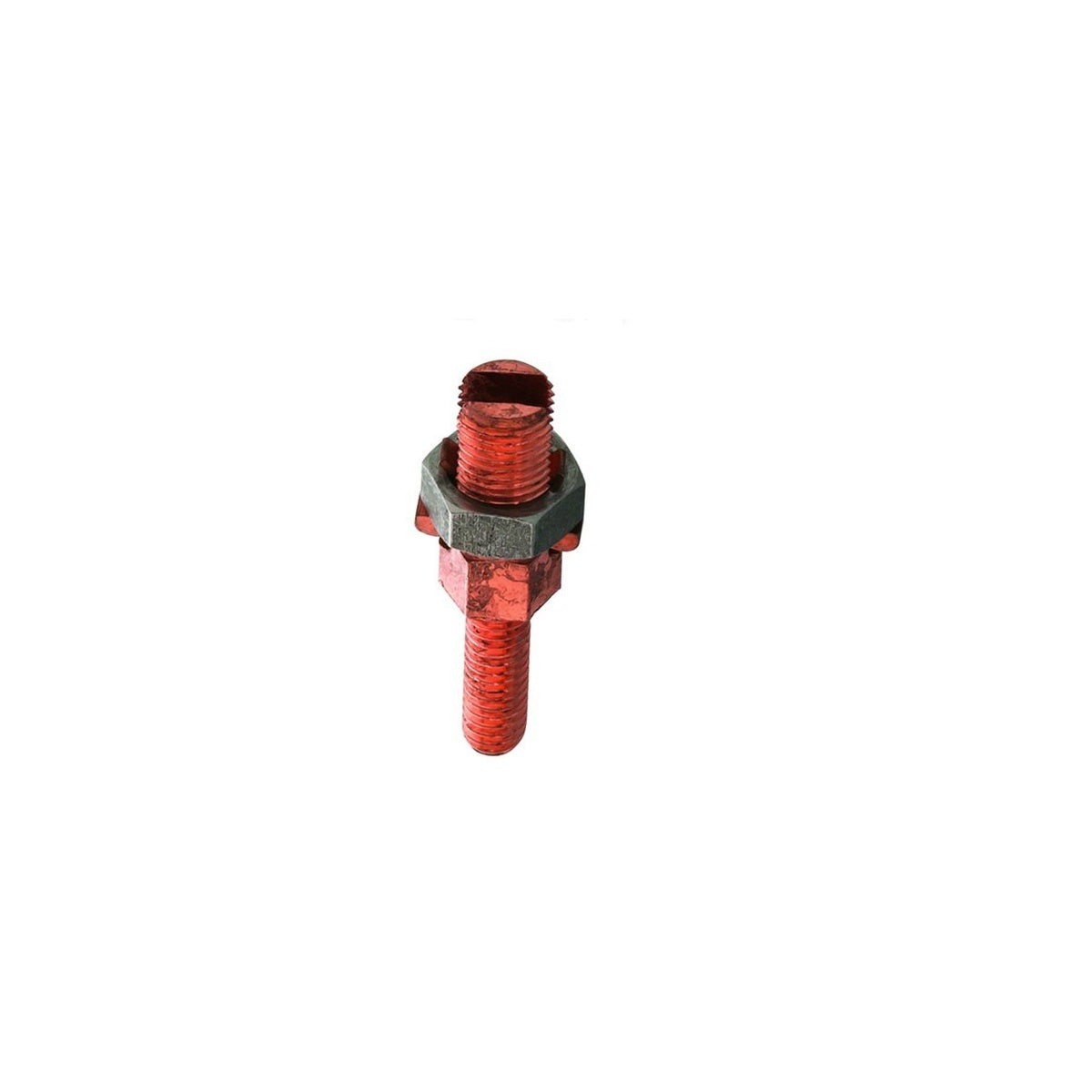

Service Post Connectors - 1 Wire #10 - #2
SKU: #276521
Part: #90371
UPC: 601986903714
Morris Products
Service Post Connectors - 1 Wire #10 - #2
SKU: #276521
Part: #90371
UPC: 601986903714
Description
Service Post Connectors - Copper Electrical Grounding Solutions
Service Post Connectors are designed for grounding one wire to steel structures, transformers, fence posts, steel bars, or plates. Manufactured from high-strength electrolytic copper, these connectors provide reliable electrical grounding and bonding in various applications. Suitable for use by electrical distributors and switchgear suppliers, they are UL 467 listed for direct burial and grounding/bonding applications in earth or concrete environments.
Specifications
- Material: Copper
- Conductor Wire Size Range: #10 to #2 AWG
- Manufacturer Part Number: 90371
- Product Weight: 0.4650 lbs
- Length: 2.19 inches
- External Thread: 3/8” x 16 UNC
- Internal Thread: 9/16” x 18 UNF
Features
- Used to ground one wire to steel structures, transformers, fence posts, steel bars, or plates
- High strength electrolytic copper construction for durability and conductivity
- UL 467 listed for direct burial and grounding/bonding in earth or concrete
- cULus listed for compliance with North American safety standards
