Morris Products

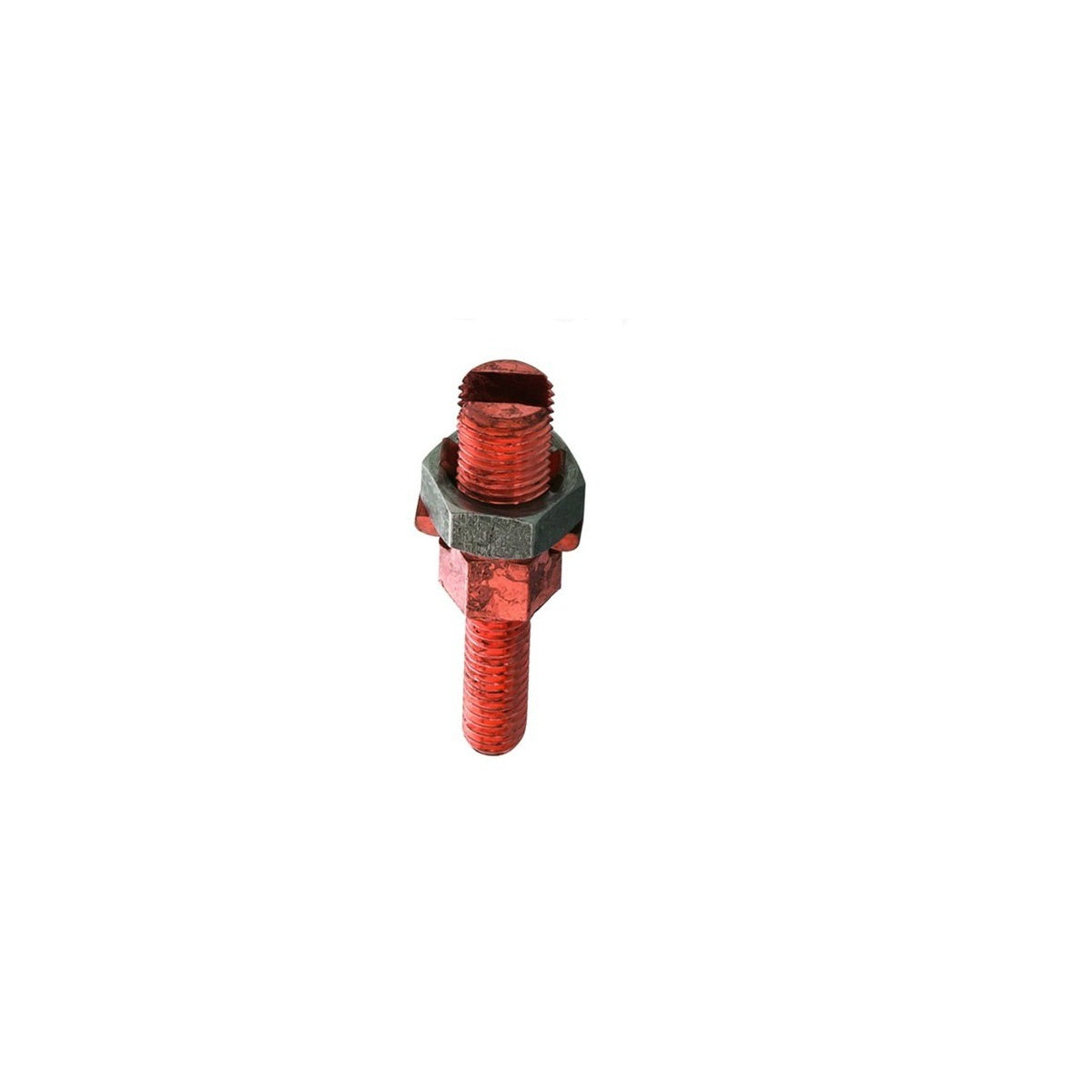

Service Post Connectors - 1 Wire #1 - 4/0
SKU: #276529
Part: #90375
UPC: 601986903752
Morris Products
Service Post Connectors - 1 Wire #1 - 4/0
SKU: #276529
Part: #90375
UPC: 601986903752
Description
Service Post Connectors - Copper Electrical Grounding Solutions
Service Post Connectors are designed for grounding single copper conductors ranging from size 1 to 4/0. These connectors provide reliable electrical grounding for steel structures, transformers, fence posts, steel bars, or plates. Suitable for use by electrical distributors and switchgear suppliers, they ensure secure bonding in various lighting solutions and wire and cable applications.
Specifications
- Material: Copper
- Conductor Size Range: 1 Wire #1 - 4/0
- Product Weight: 0.6450 lbs
- Manufacturer Part #: 90375
- Length: 3.21 inches
- Nut Size: 1.12 inches
- External Thread: 5/8” x 11 UNC
- Internal Thread: 1-1/8” x 12 UNF
- UL 467 Listed for Direct Burial and Grounding/Bonding Applications
- cULus Listed
Features
- High strength electrolytic copper construction
- Designed for grounding one wire to steel structures, transformers, fence posts, steel bars, or plates
- Suitable for direct burial in earth or concrete
