The Series SSP Firestop Putty Pad provides critical fire protection for electrical boxes and penetrations in fire-rated walls. This moldable 7.25 inches x 7.25 inches x 3/16 inches pad creates an effective fireproof barrier to maintain fire ratings in residential and other building applications. Available in a convenient pack for professional installations.

• Dimensions: 7.25 inch square pad with 3/16 inch thickness for optimal coverage
• Installation: Pliable material molds easily around electrical boxes and outlets
• Protection: Creates airtight barrier to prevent smoke and fire spread
• Compliance: Meets building code requirements for firestop applications
• Durability: Maintains integrity during fire exposure for reliable fireproof protection

Features

• The firestopping putty shall be a one-part, two-stage intumescent, non-hardening compound. The putty, when exposed to high heat or flame shall be capable of expanding a minimum of five times. Range of continuing expansion shall be from 230°F to less than 1,000°F (110°C to less than 538°C). The putty shall be soft and pliable with aggressive adhesion and shall not contain any water-soluble intumescent ingredients. The putty shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479), CAN/ULC-S115 and UL263 (ASTM E119, NFPA 251). S
• Remains pliable and workable for the lifetime of the installation for an easy retrofit., Two stage intumescent - aggressive expansion., Endothermic fillers absorb heat & release water., Sound deadening - excellent sound attenuation properties that reduces noise transmission.
• Available in tubes or preformed pads
• Remains pliable and workable for the lifetime of the installation
• Acoustically tested
• Will not harden overtime!

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• UL263(ASTM E119
• NFPA 251)
• ASTM E814 (UL1479)
• CAN/ULC-S115
• UL263 (ASTM E119
• FM Approved: Yes
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Cables
• Electrical Box
• Metal Pipes

Properties

• Intumescent
• Low VOC
• No Expiration
• Re-Enterable
• Smoke Barrier
• STC Rating

Construction Type

• SpecSeal SSP Putty Pads are suitable for use in all common constructions for sealing cabling penetrations, and outlet boxes.

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

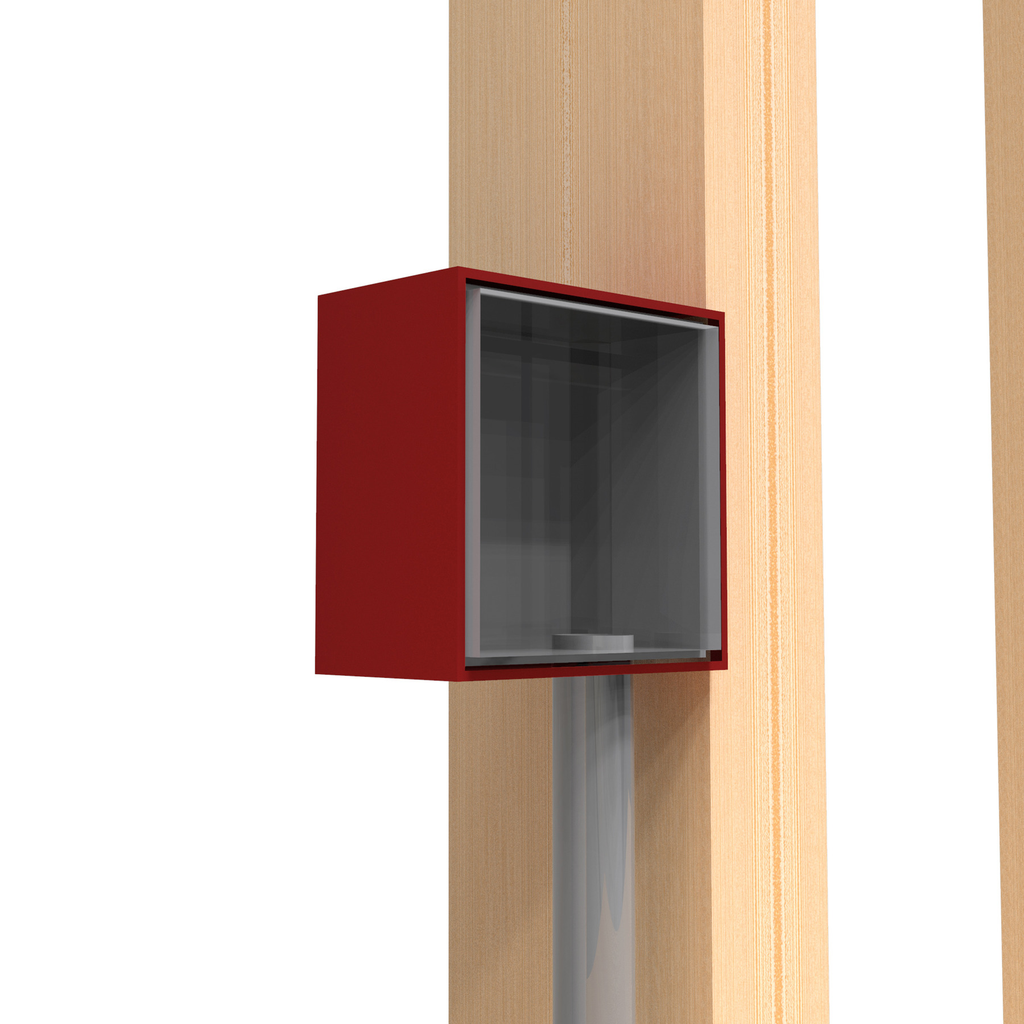

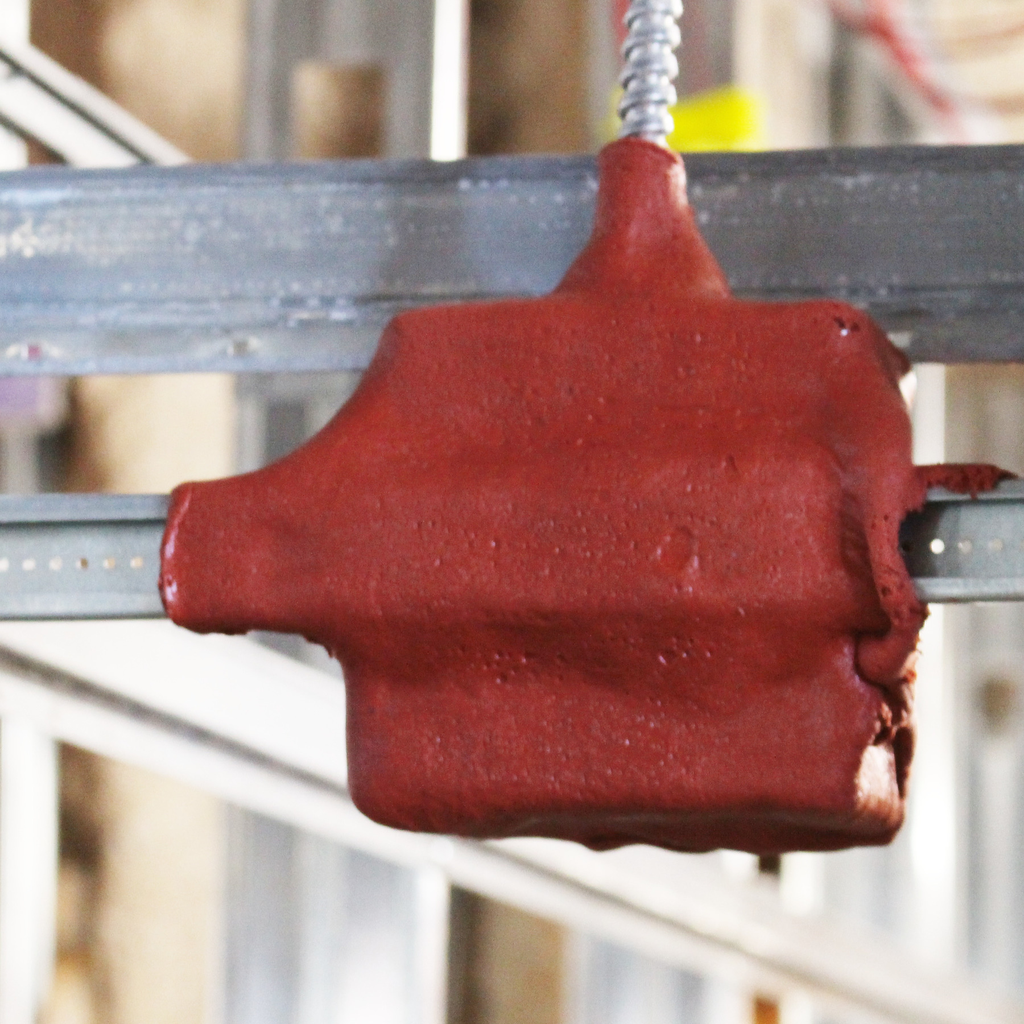

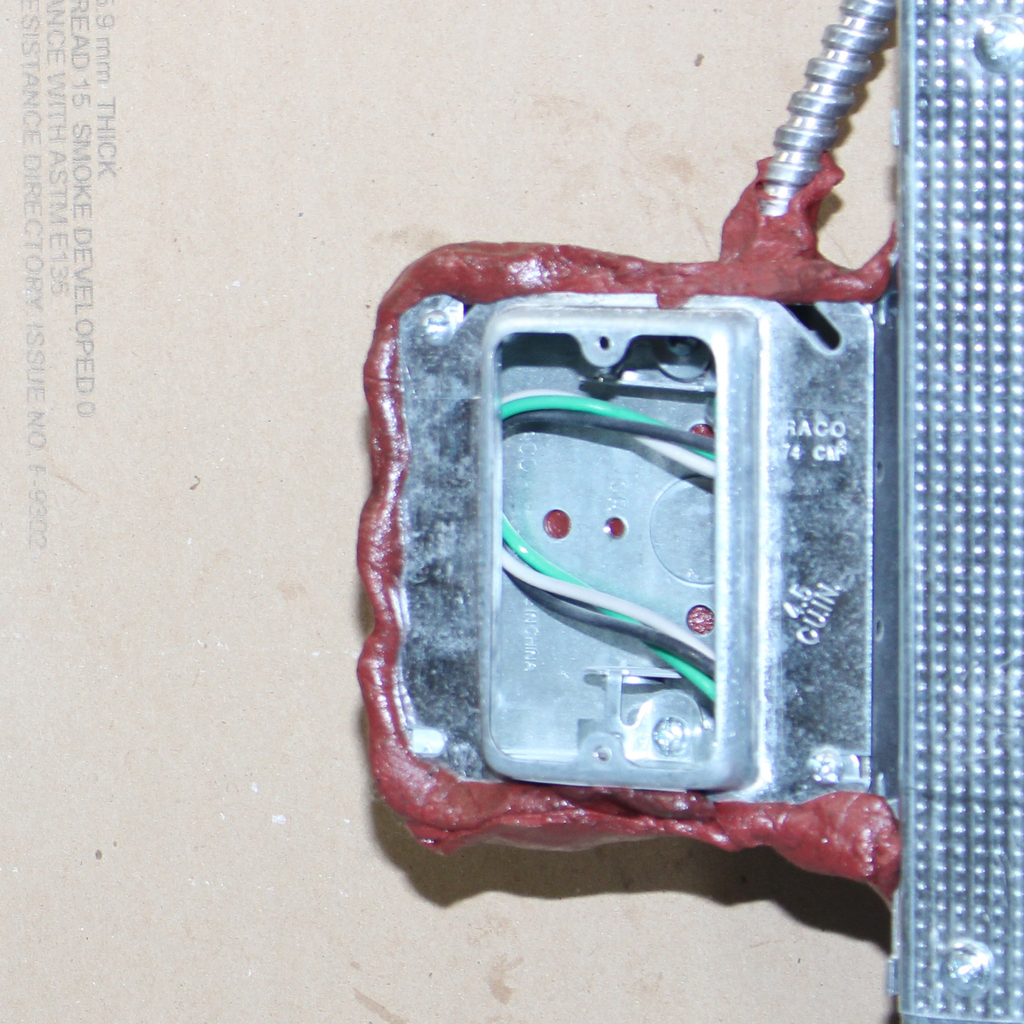

• SpecSeal SSP Putty and Putty Pads are used to seal through-penetrations as well as construction gaps and blank openings. SpecSeal Putty Pads are used to seal around electrical boxes to reduce sound transmission (see Technical Update) and increase fire resistance. These pads also provide a metered method of application when sealing through penetrations and in some applications, are used to provide a cushion to allow movement due to settling, expansion and contraction, or vibration.

Specifications

• Country of Origin: USA
• Weight: 0.64 lbs.
• Length: 7.25 in.
• Width: 7.25 in.
• Height: 1.875 in.
• Color: Red
• Composition: Firestop Putty
• Material: Non-hardening, intumescent compound
• Firestop Device Type: Firestop Putty
