Features

• Measures kWh and demand (optional)
• Conform to all applicable standards of ANSI C12.1
• Equipped with an Isolated Pulse Output channel
• Utilizes revenue grade 0.5% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
• Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
• Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
• Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
• Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
• Load Indicator LED verifies meter functionality
• Reverse Phase Indicator LED illuminates if the meter is improperly installed
• CT Lead length maximum: 48”
• UL/cUL Listed Energy Usage Monitor pre CCN FTR7
• Five year warranty

Specifications

Electrical Specifications

• Amperage: 400 A
• Voltage: 120/208 VAC 3PH 4W

Product Features

• Communication: Pulse Output
• Country Of Origin: United States
• CTs Included: 3 Split Core CTs

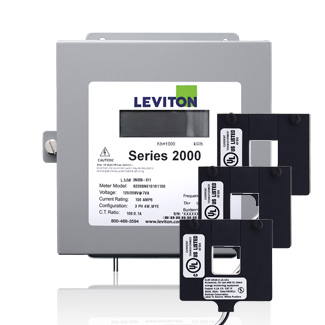

• Product Line: Series 2000 Kit
• Meter Configuration: Single Meter
• Enclosure: Indoor (NEMA 1)
