Semiconductor Fuse Amp-Trap® 600V 200A aR High Speed A60X Type 4 TA Indicator
SKU: #195081
Part: #A60X200-4TA
UPC: 782001946227
Semiconductor Fuse Amp-Trap® 600V 200A aR High Speed A60X Type 4 TA Indicator
SKU: #195081
Part: #A60X200-4TA
UPC: 782001946227
Description
Semiconductor Fuse Amp-Trap® 600V 200A aR High Speed A60X Type 4 TA Indicator

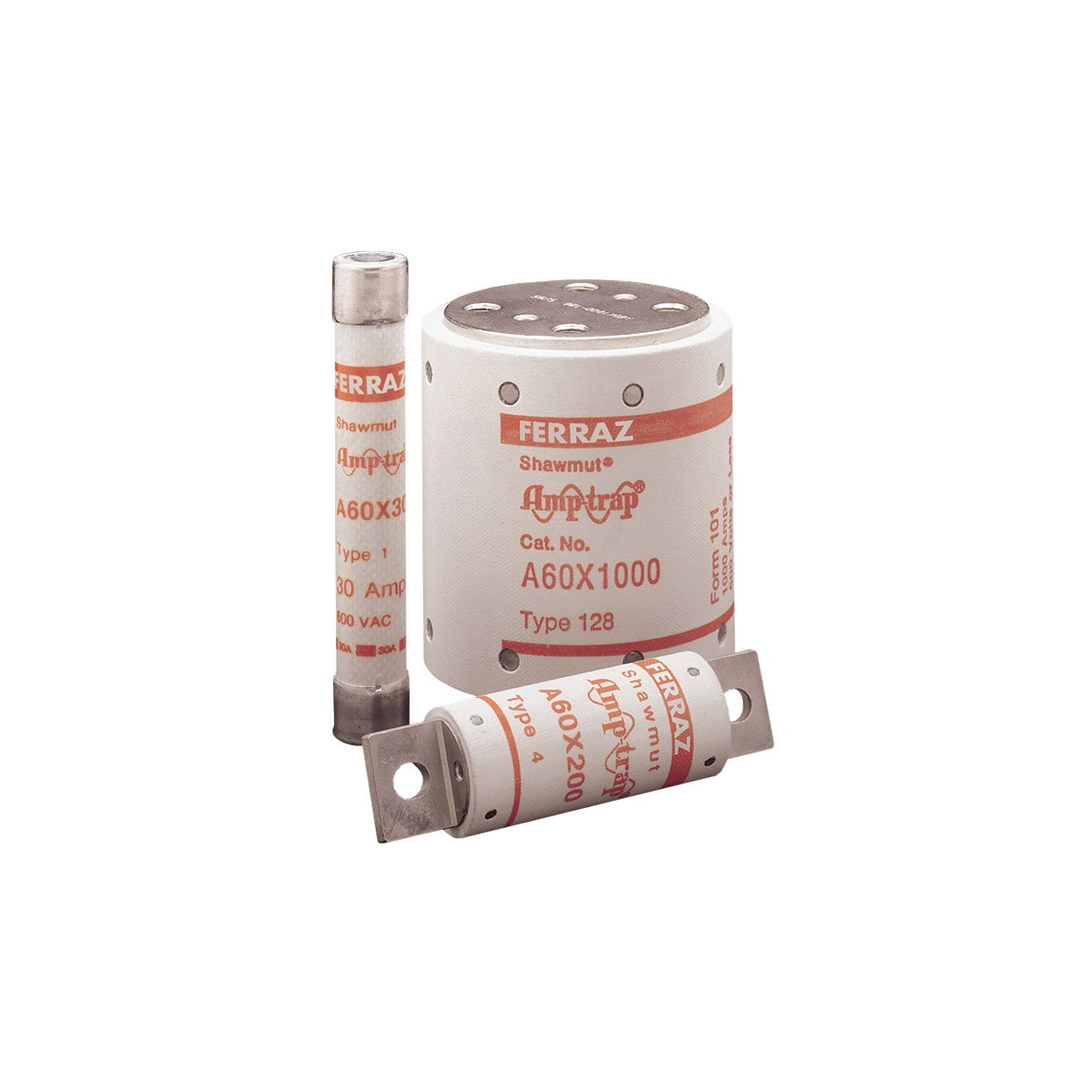

The Semiconductor Fuse Amp-Trap® A60X Form 101 is a high speed fuse designed for the protection of heavy traction, electrochemical equipment, rectifiers, and other heavy-duty apparatus. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable, compact protection solutions for wire and cable systems operating at up to 600 volts. Its design supports long sustained overloads common with heavy-duty equipment while maintaining fast-acting, current-limiting performance.
Specifications
- Voltage Rating: 600 VAC
- Amperage: 200 amperes
- Interrupting Rating: 200 kA I.R. AC
- Mounting Type: Bolted
- Connection: Blade
- Dimensions (L x W x H): 4.41 in x 1.63 in x 1.63 in
- Diameter: 1.63 inches
- Maximum Operating Temperature: 80 degrees Celsius
- Product Weight: 0.65 lbs
- Country of Origin: Mexico
- Manufacturer: Mersen
- Manufacturer Part Number: A60X200-4TA
Features
- Low I²t minimizes damage to protected components during short circuits
- Controlled arc voltage reduces stress on circuit components during fuse clearing
- Compact "hockey-puck" design allows high power protection in limited space
- Fast acting and current limiting to enhance equipment safety
- Trigger actuator (TA) indicator option for clear fuse status identification
