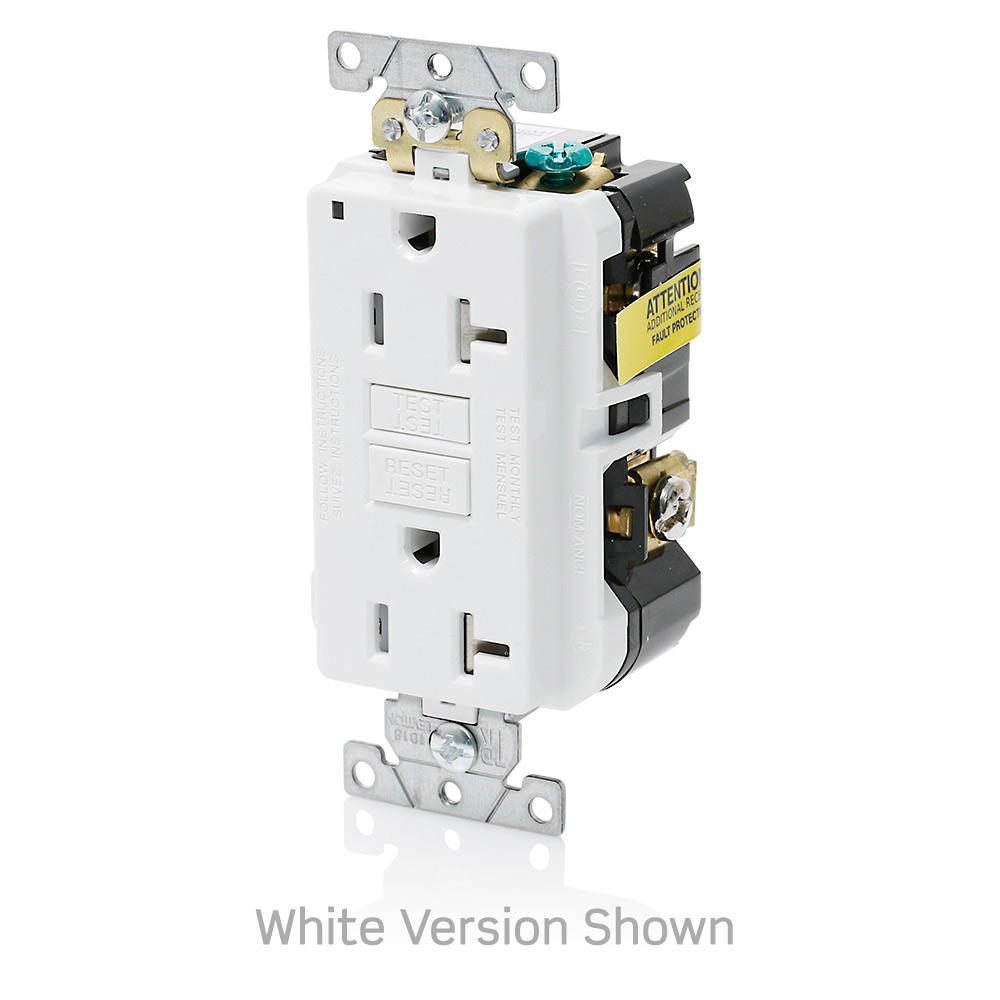

Self-Test Tamper-Resistant Industrial Grade GFCI Duplex Receptacle Outlet

This SmartlockPro Self-Test Tamper-Resistant GFCI Duplex Receptacle Outlet is designed for extra heavy-duty industrial applications, providing ground fault protection to enhance electrical safety. Suitable for use by electrical distributors and lighting solutions providers, it supports 20 amp, 125 volt circuits with NEMA 5-20R configuration. This device is ideal for wiring installations requiring back or side wiring and features self-grounding for reliable grounding connections.

Specifications

• Device Type: Duplex Receptacle Outlet
• Amperage: 20 amperes
• Voltage: 125 Volt
• NEMA Configuration: 5-20R (WD-1)
• Number of Poles: 2
• Number of Wires: 3
• Grade: Extra Heavy-Duty Industrial Specification
• Color: Ivory
• Body Material: Polycarbonate
• Face Material: PBT
• Grounding: Self-Grounding
• Enclosure: WD-6
• Operating Temperature: -35 degrees Celsius
• Flammability Class: Rated V-0 Per UL 94
• Product Weight: 0.3860 lbs
• Country of Origin: China
• Manufacturer Part #: G5362-TI

Features

• Self-Test functionality automatically verifies GFCI electronics to ensure ongoing protection.
• Tamper-Resistant design improves safety by preventing unintended access to the receptacle slots.

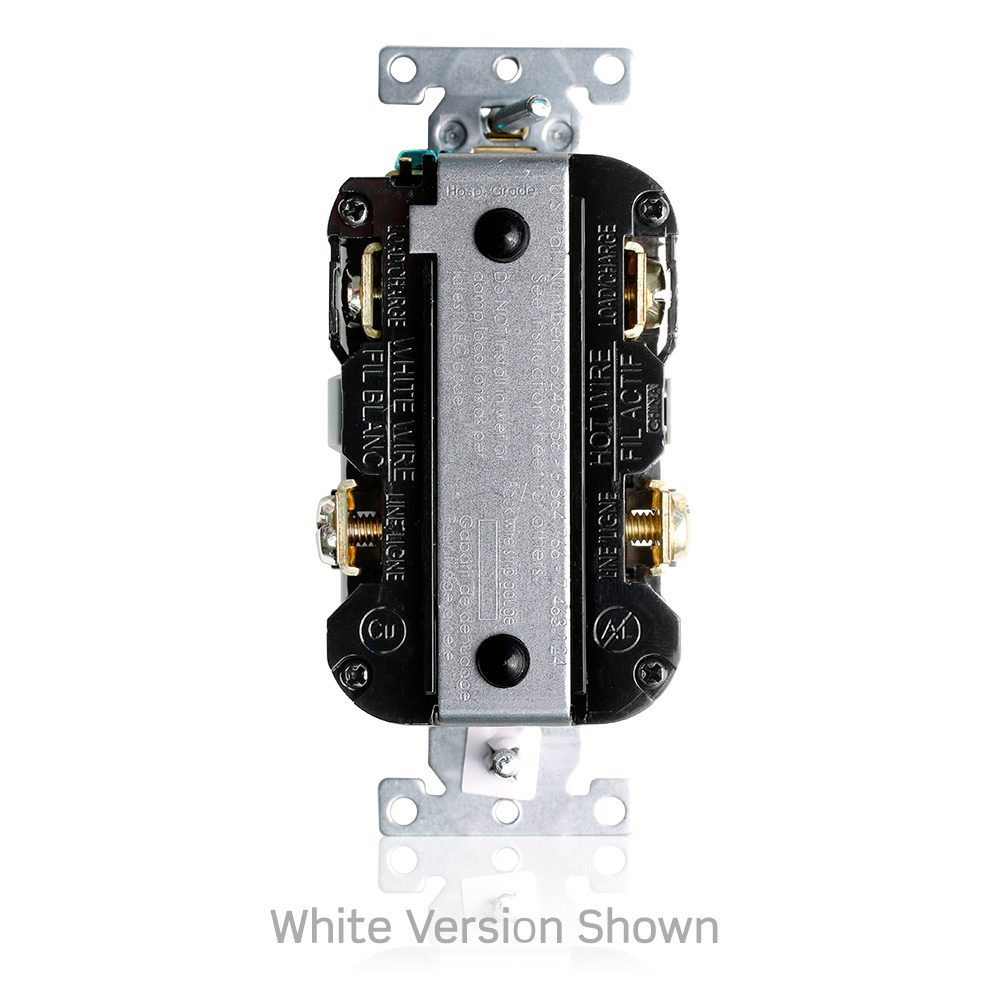

• Back or side wiring options facilitate flexible installation for wire and cable configurations.
• Extra heavy-duty industrial grade construction suitable for demanding environments.
• Self-grounding feature simplifies installation and ensures reliable grounding.
• Status Indicator LED provides visual confirmation of device operation and fault conditions.
• Compatible with copper or copper-clad wire; not suitable for aluminum wiring.
