Self-Test Tamper-Resistant Industrial Grade GFCI
SKU: #30162
Part: #G5362-TW
UPC: 078477898345
Self-Test Tamper-Resistant Industrial Grade GFCI
SKU: #30162
Part: #G5362-TW
UPC: 078477898345
Total Price: $37.23 per each Sold in increments of 1 each
Description
Self-Test Tamper-Resistant Industrial Grade GFCI - SmartlockPro

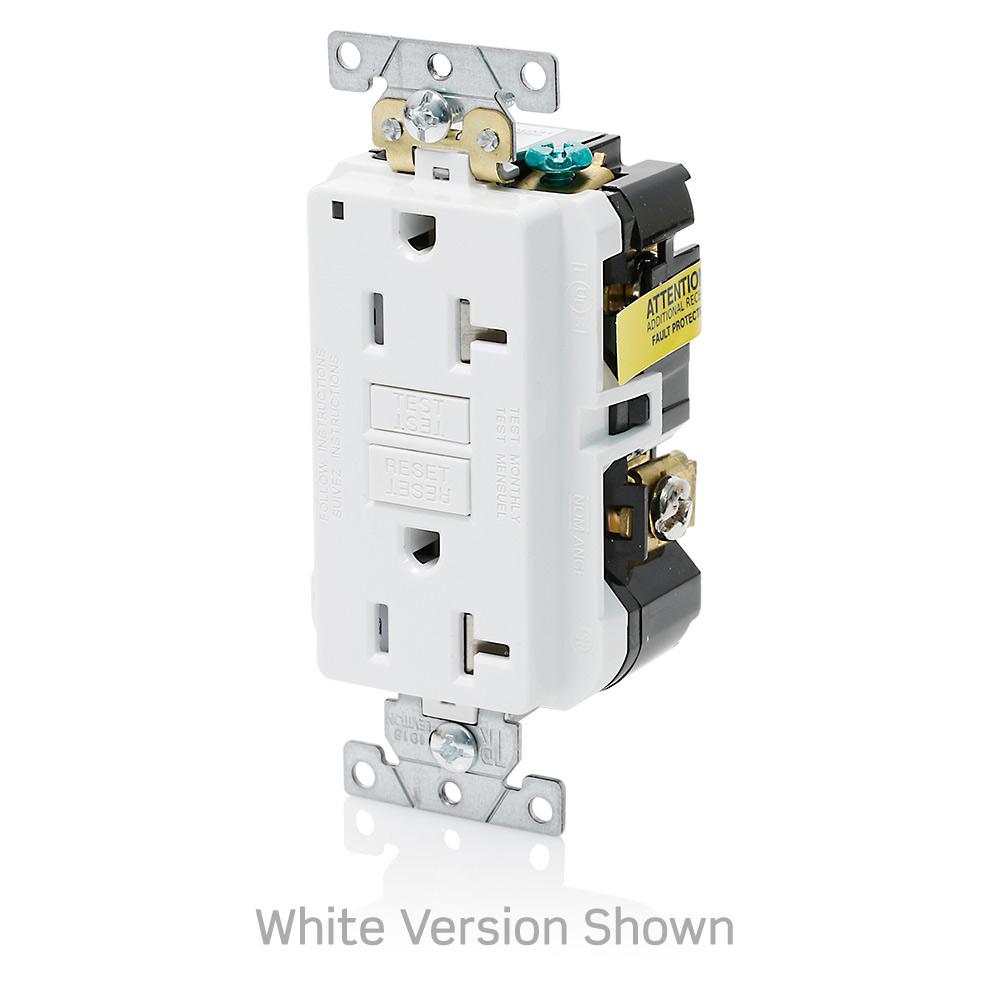

The Self-Test Tamper-Resistant Industrial Grade GFCI Duplex Receptacle Outlet from Leviton offers advanced ground-fault protection designed for heavy-duty industrial applications. Engineered as an extra heavy-duty industrial specification grade device, this 20 Amp, 125 Volt receptacle ensures safety by automatically cutting off power in the event of a ground fault. It features SmartlockPro self-test technology for continuous monitoring of functionality, reducing the risk of electric shock and electrocution. The device supports back or side wiring and complies with NEMA 5-20R standards, making it suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers in demanding environments.
Specifications
- Product Weight: 0.3890 lbs
- Grade: Extra Heavy-Duty Industrial Specification
- Amperage: 20 amperes
- Voltage: 125 Volt
- Device Type: Duplex Receptacle Outlet
- NEMA Configuration: 5-20R
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Body Material: Polycarbonate
- Face Material: PBT
- Enclosure: WD-6
- Operating Temperature: -35 degrees Celsius
- Flammability Class: Rated V-0 Per UL 94
- Country of Origin: China
- Manufacturer: Leviton
- Manufacturer Part Number: G5362-TW
- Color: White
Features
- SmartlockPro self-test technology continuously monitors the GFCI electronics to ensure reliable ground fault protection.
- Tamper-resistant design prevents unintended contact with live electrical parts, meeting National Electrical Code requirements.
- Extra heavy-duty construction suitable for industrial environments with robust polycarbonate body and PBT face materials.
- Self-grounding feature simplifies installation and enhances safety.

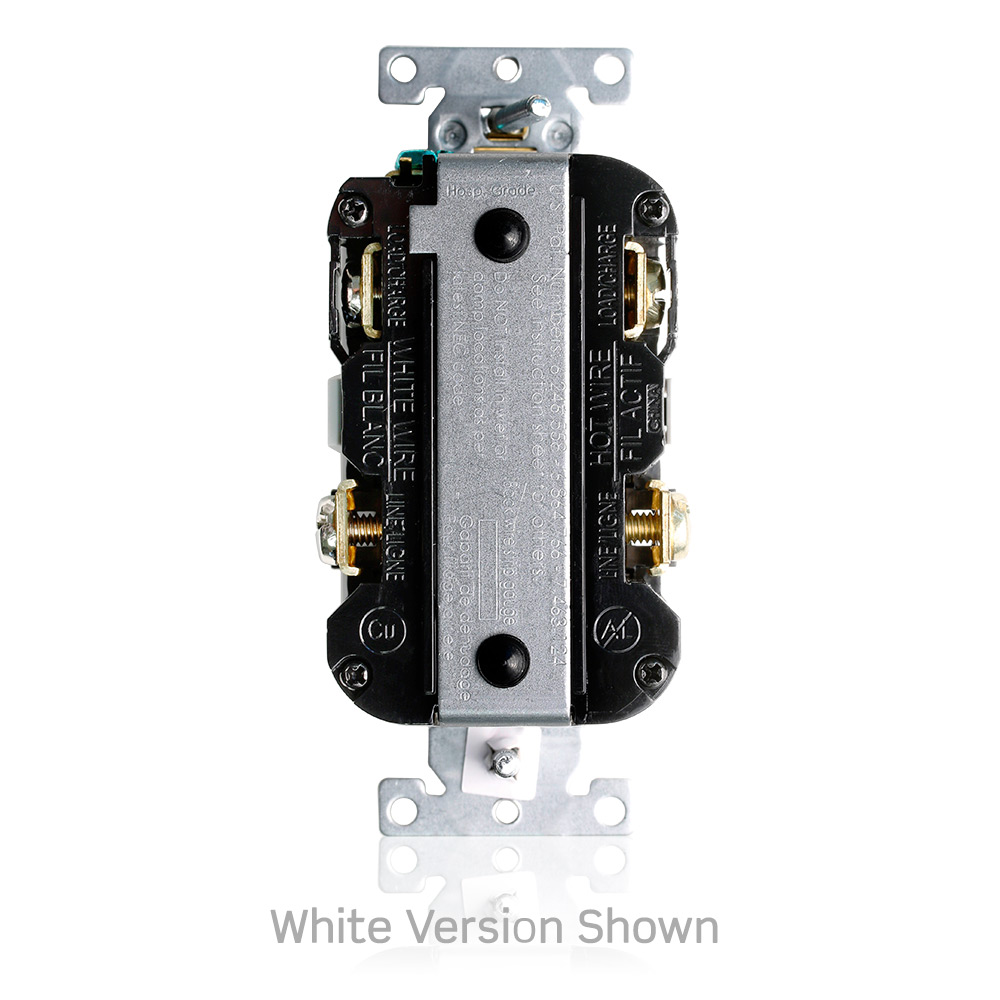

- Back or side wire connections provide flexible wiring options.
- Compatible with NEMA 5-20R configurations for 20 Amp, 125 Volt circuits.
- Rated V-0 for flammability per UL 94, ensuring high resistance to fire.
- Operating temperature range down to -35°C supports use in demanding temperature conditions.
