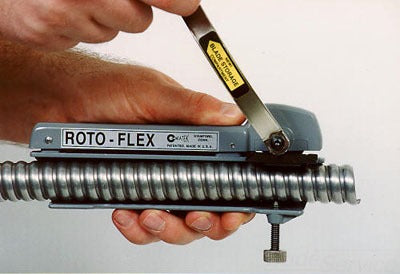

SEATEK RF-120B ROTO-FLEX Extended Range Cable Armor Stripper

The SEATEK RF-120B ROTO-FLEX is a specialized tool designed for electrical distributors and lighting solutions providers to efficiently strip armored cables and flexible conduits. It is engineered to handle MC and BX cables from 14-2 to 4-3 gauge and flexible conduits from 3/8" to 3/4" trade size, combining the cutting range of two tools into one compact, ergonomic device. This tool is ideal for wire and cable preparation and is suited for use by switchgear suppliers and electrical contractors requiring precise, safe, and labor-saving cable armor stripping.

Specifications

• Manufacturer: SEATEK COMPANY INC.
• Manufacturer Part #: RF-120B
• Cable Range: MC & BX from 14-2 to 4-3 gauge
• Flexible Conduit Range: 3/8" to 3/4" trade size
• Cable Diameter Capacity: 0.375" to 1.125"
• Product Weight: 2.0 lbs
• UPC: 723875021207
• U.S. Patent #: 3,851,387

Features

• Unique hinged swinging adapter automatically controls depth of cut, preventing damage to wires when switching between large and small cables
• Simple clamping system requiring only half a turn of the thumb screw to clamp or release cable
• Side loading design allows cutting anywhere along the cable, including tight quarters
• Self-tightening blade system with ergonomic crank handle offset for maximum hand clearance
• Blade storage cartridge integrated into knob with capacity for 6 blades
• Durable die-cast epoxy enameled body for long-lasting use
• Compact and portable, easily carried in belt pouch or pocket for on-site accessibility
• Eliminates risk of nicked fingers and cut knees with built-in depth of cut stop
