SEAL8-100N/D10 LED Linear Washdown Fixture

The SEAL8-100N/D10 by RAB is an economical linear LED washdown fixture designed for challenging environments such as canopies, loading docks, tunnels, and stairwells where relamping is difficult and costly. This fixture is suitable for wet locations and provides efficient, durable lighting solutions ideal for electrical distributors and lighting solutions providers serving industrial and commercial applications.

Specifications

• Manufacturer: RAB
• Model Number: SEAL8-100N/D10
• Lumens: 11,436 lumens
• Efficacy: 118 lumens per watt
• Input Wattage: 97 watts
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 84 CRI
• Lens Material: Diffuse Polycarbonate
• Product Weight: 21.5 lbs
• Ambient Temperature Rating: Up to 104¬∞F (40¬∞C)
• Minimum Starting Temperature: -20¬∞C (-4¬∞F)
• IP Rating: IP65 for dust and water protection
• Voltage: 120-277V, 50/60Hz
• Driver Type: Constant Current, Class 2
• L70 LED Lifespan: 50,000 hours

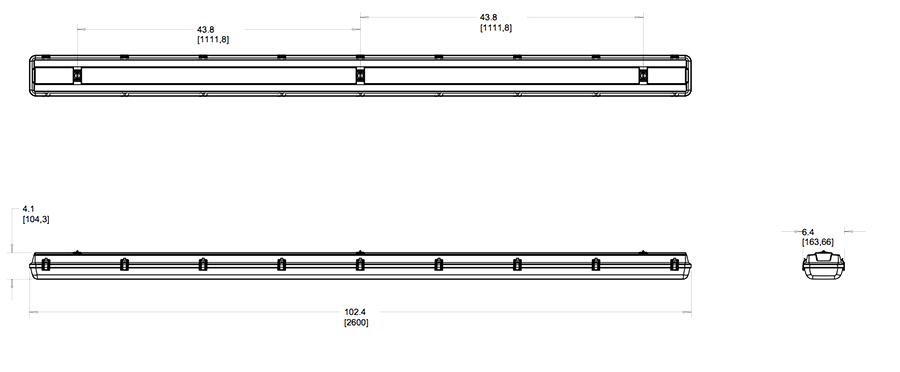

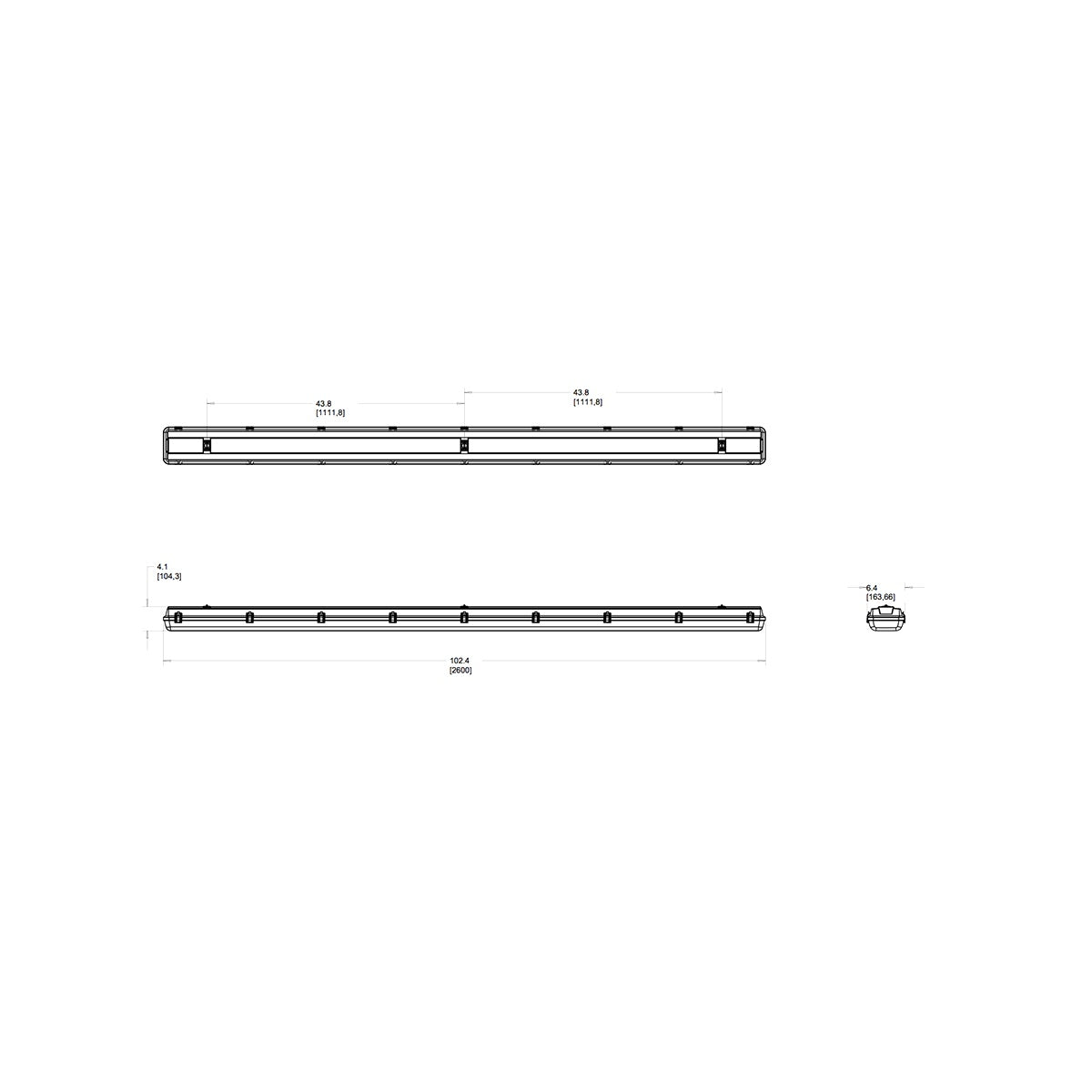

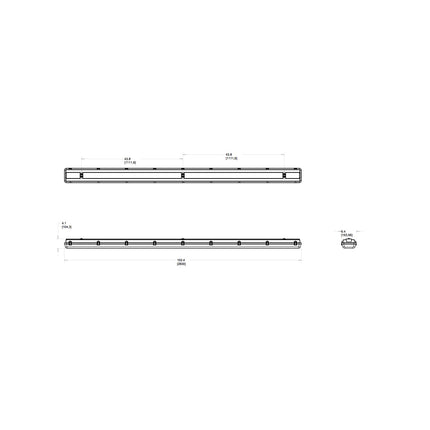

• Dimensions: 43.8" length x 4.1" height x 6.4" width

Features

• Suitable for wet locations with an IP65 ingress protection rating
• Impact-resistant polycarbonate housing with stainless steel door clips
• Diffuse polycarbonate lens for low glare and maximum protection
• Quick-mount stainless steel snap-on brackets for surface mounting
• V-Hook brackets included for chain suspension mounting
• 6 ft, 5-wire cord installed for easy electrical connection
• 0-10V dimming capability for flexible light control
• High-temperature silicone gaskets for weatherproof sealing
• Mercury and UV free with RoHS-compliant components
• 5-year limited warranty covering light output, driver performance, and finish
• DLC Qualified Product, eligible for utility rebates

Downloads & Links

• Spec Sheet
• Instructions
