SDR-9, Wire Marker Tape Refill Roll
SKU: #14771
Part: #SDR-9
UPC: 054007093787
SDR-9, Wire Marker Tape Refill Roll
SKU: #14771
Part: #SDR-9
UPC: 054007093787
Next day delivery
Description
SDR-9, Wire Marker Tape Refill Roll – Wire Marker Tape

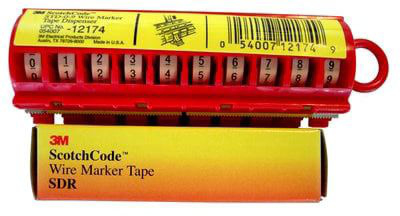

The 3M™ ScotchCode™ SDR-9 Wire Marker Tape Refill Roll is designed for precise wire identification in electrical distribution and wiring applications. This polyester film tape with acrylic pressure-sensitive adhesive is compatible with 3M STD ScotchCode tape dispensers, enabling efficient marking of wires, terminal blocks, and panels. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable identification solutions.
Specifications
- Material: Polyester Film with acrylic pressure sensitive adhesive
- Tape Roll Width: 0.215 inches (5.46 mm)
- Tape Roll Length: 96 inches (2.43 m)
- Tape Thickness: 3 mils (0.08 mm)
- Number of Characters: 6 per inch (6 per 2.54 cm)
- Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
- Application Temperature Range: 32°F to 120°F (0°C to 49°C)
- Adhesion to Steel: 25 oz./inch width (273 Newtons/Meter) per ASTM D-1000
- Adhesion to Backing: 10 oz./inch width (109 Newtons/Meter) per ASTM D-1000
- Storage Temperature (Relative Humidity): 80°F (26°C), 25–50%
- Product Weight: 0.3550 lbs
Features
- High tack acrylic adhesive resists solvents, oil, and water
- Adheres firmly to insulation surfaces for durable wire marking
- Available in ten NEMA colors with individual numbers, consecutive numbers, letters, and symbols
- Compatible with 3M STD ScotchCode tape dispensers for ease of use
- Wide operating temperature range suitable for various electrical environments
