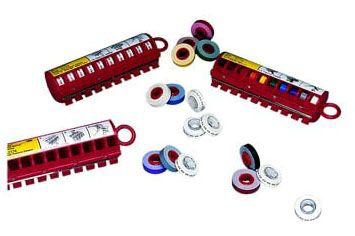

SDR-8 Wire Marker Tape Refill Roll – Wire Marker Tape

The 3M™ ScotchCode™ SDR-8 Wire Marker Tape Refill Roll is a polyester film tape designed for wire marking applications. It features a high tack acrylic pressure-sensitive adhesive that resists solvents, oil, and water, ensuring firm adhesion to insulation surfaces. This tape is intended for use with 3M STD ScotchCode tape dispensers, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable identification solutions. The tape operates effectively in temperatures ranging from -40°F (-40°C) to 250°F (121°C), supporting diverse electrical and lighting environments.

Specifications

• Material: Polyester Film with acrylic pressure sensitive adhesive
• Tape Roll Width: 0.215 inches (5.46 mm)
• Tape Roll Length: 96 inches (2.43 m)
• Tape Thickness: 3 mils (0.08 mm)
• Number of Characters: 6 per inch (6 per 2.54 cm)
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Application Temperature Range: 32°F to 120°F (0°C to 49°C)
• Adhesion to Steel: 25 oz./inch width (273 Newtons/Meters) ASTM D-1000
• Adhesion to Backing: 10 oz./inch width (109 Newtons/Meters) ASTM D-1000
• Product Weight: 0.3550 lbs

Features

• High tack acrylic adhesive resistant to solvents, oil, and water
• Compatible with 3M STD ScotchCode tape dispensers for easy application
• Available in ten NEMA colors and multiple character sets including numbers, letters, and symbols
• Durable polyester film construction for long-lasting wire identification
• Wide operating temperature range suitable for various electrical and lighting installations
