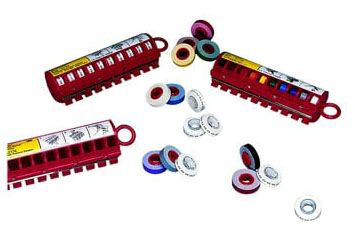

SDR-0, Wire Marker Tape Refill Roll – Wire Marker Tape

The 3M™ ScotchCode™ SDR-0 Wire Marker Tape Refill Roll is designed for precise wire identification and marking applications. Manufactured by 3M, this polyester film tape features a high-tack acrylic pressure-sensitive adhesive that adheres firmly to insulation surfaces, making it suitable for electrical distributors, lighting solutions providers, wire and cable management, and switchgear suppliers. The tape is compatible with 3M ScotchCode STD tape dispensers and can be used in environments with operating temperatures from -40°F (-40°C) to 250°F (121°C).

Specifications

• Material: Polyester film with acrylic pressure sensitive adhesive
• Application Temperature Range: 32°F to 120°F (0°C to 49°C)
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Storage Temperature: 80°F (26°C) at 25–50% Relative Humidity
• Tape Roll Width: 0.215 inches (5.46 mm)
• Tape Roll Length: 96 inches (2.43 m)
• Number of Characters: 6 per inch (6 per 2.54 cm)
• Tape Thickness: 3 mils (0.08 mm)
• Adhesion to Steel: 25 oz./inch width (273 Newtons/Meter) (ASTM D-1000)
• Adhesion to Backing: 10 oz./inch width (109 Newtons/Meter) (ASTM D-1000)
• Product Weight: 0.3550 lbs

Features

• High tack acrylic adhesive resists solvents, oil, and water
• Adheres firmly to wire insulation surfaces
• Compatible with 3M ScotchCode STD tape dispensers for easy dispensing
• Available in ten NEMA colors and various numeric, alphabetic, and symbol prints
• Durable polyester film construction ensures long-lasting wire identification
• Suitable for use in electrical and industrial wire marking applications
