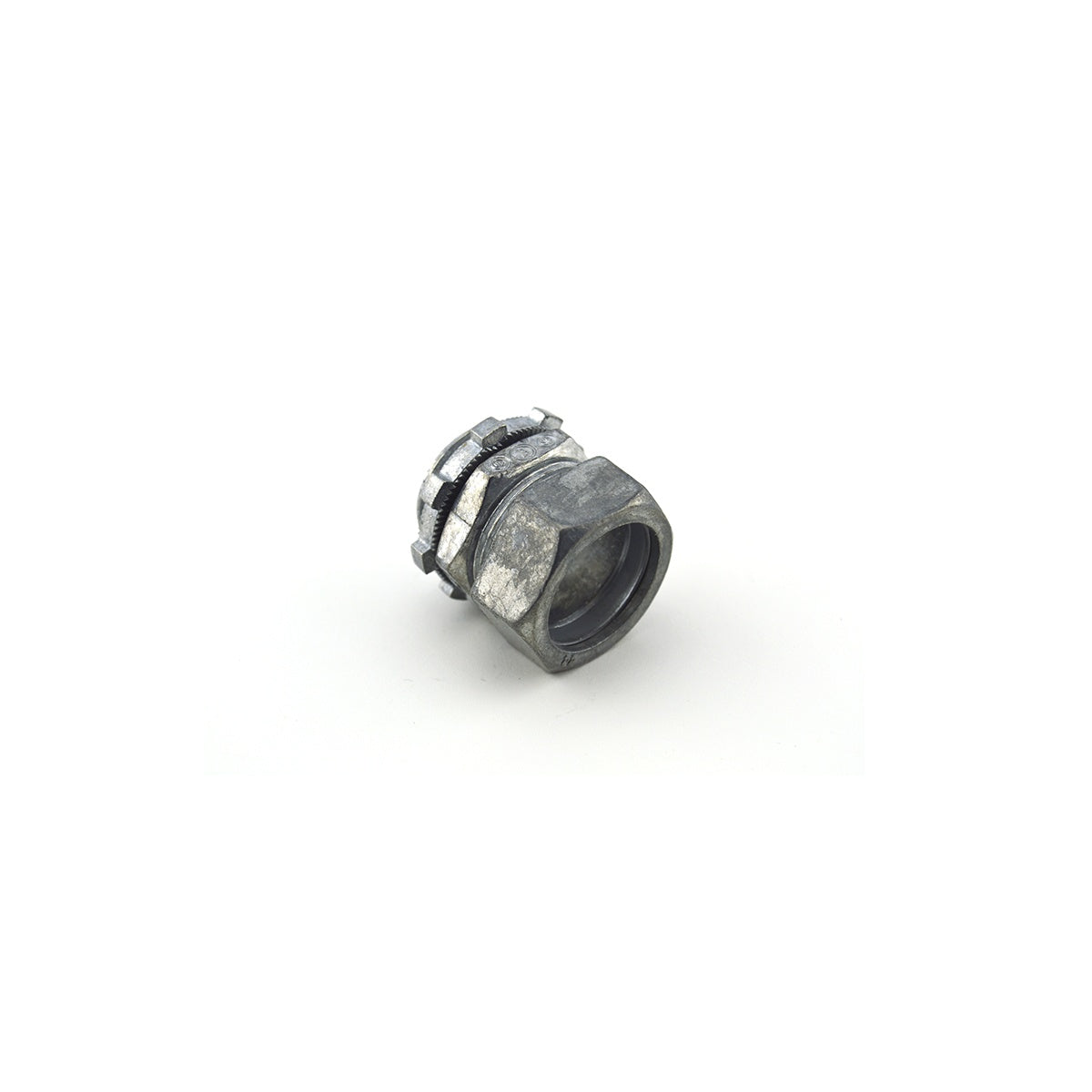

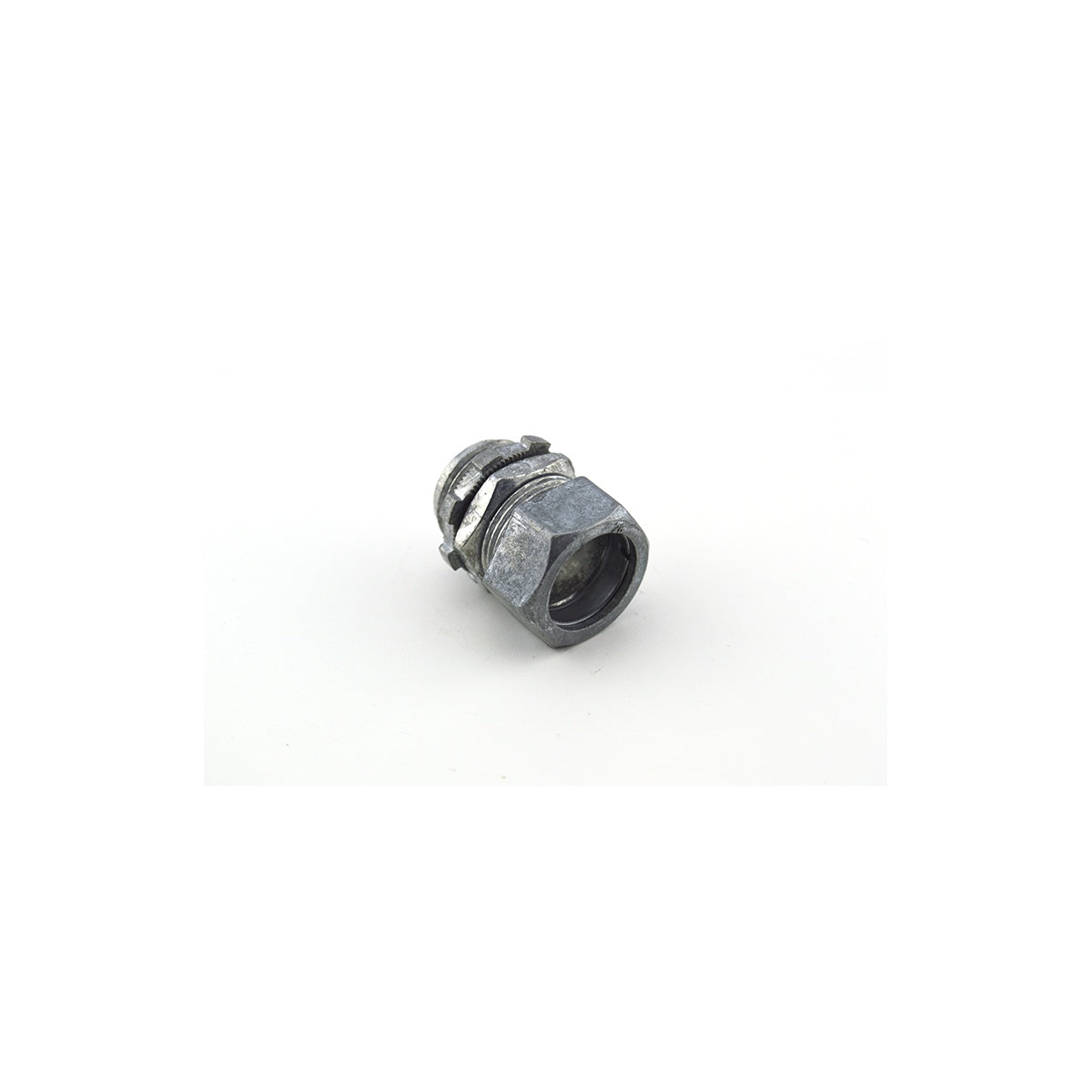

Screw-on EMT Compression Connector 3/4", Die Cast Zinc – Compression EMT Connector

The Screw-on EMT Compression Connector 3/4" by Bridgeport Fittings is designed to join electrical metallic tubing (EMT) to electrical boxes or enclosures with a concrete-tight seal. Ideal for use by electrical distributors and switchgear suppliers, this compression connector provides a reliable and corrosion-resistant solution for steel and aluminum EMT applications in lighting solutions, wire and cable installations, and other electrical systems.

Specifications

• Material: Zinc Die Cast
• Finish: Ball burnish
• Width: 1.34 in
• Length: 1.44 in
• Weight: 0.1392 lbs
• Insulation: None
• Application: Used to join steel EMT to box or enclosure. Concrete-tight. Suitable for use with steel or aluminum EMT sizes 1/2" thru 2".
• Made in USA: Yes
• Manufacturer Part #: 251-DC2

Features

• Die cast zinc construction ensures excellent corrosion resistance in harsh environments.
• Compression ring design allows quick and secure installation by tightening to hold EMT in place.
• UL Listed concrete-tight and CSA Listed concrete-tight and raintight for dependable sealing.
• Compatible with aluminum and steel EMT; sizes 2-1/2" to 4" also suitable for rigid conduit.
• Meets UL 514B bonding and grounding requirements.

Downloads & Links

• Spec Sheet
