Screw-on EMT Compression Connector 2-1/2", Die Cast Zinc
SKU: #328972
Part: #256-DC2
UPC: 781747152565
Screw-on EMT Compression Connector 2-1/2", Die Cast Zinc
SKU: #328972
Part: #256-DC2
UPC: 781747152565
Total Price: $19.37 per each Sold in increments of 1 each
Description

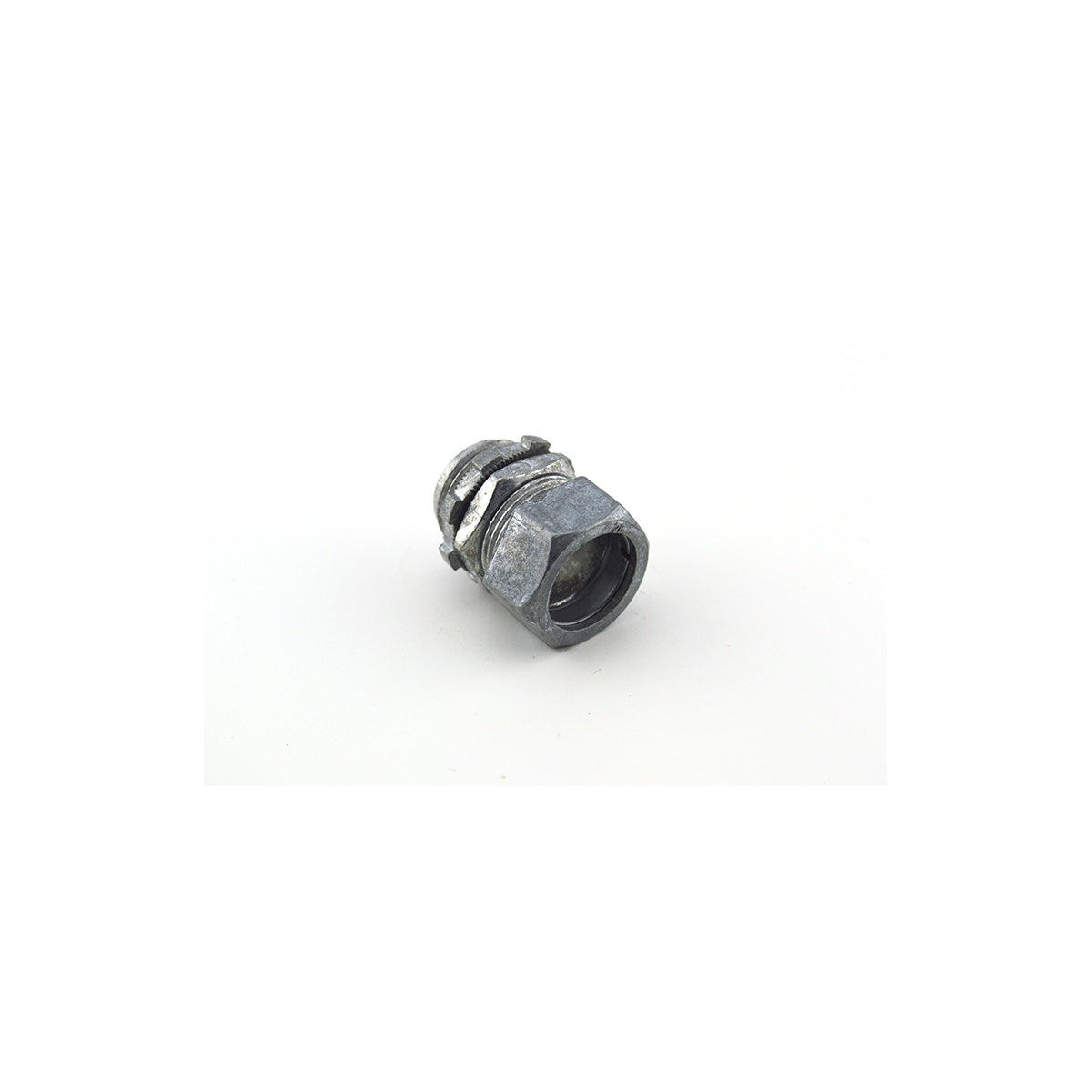

Screw-on EMT Compression Connector 2-1/2" Die Cast Zinc – Electrical Metallic Tubing Connector
The Screw-on EMT Compression Connector 2-1/2" by Bridgeport Fittings is designed for secure, concrete-tight connections between electrical metallic tubing (EMT) and electrical boxes or enclosures. This compression-type connector is suitable for use with steel and aluminum EMT, as well as rigid conduit sizes 2-1/2" through 4". It is UL Listed and CSA Listed for concrete-tight and raintight applications, making it ideal for electrical distributors and switchgear suppliers requiring reliable conduit fittings in lighting and wiring installations.
Specifications
- Material: Zinc Die Cast
- Finish: Ball burnish
- Trade Size: 2-1/2"
- Length: 3.62 in
- Width: 3 in
- Product Weight: 1.1916 lbs
- Insulation: None
- Made in USA: Yes
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 256-DC2
- UL File No.: E24001
- Country of Origin: United States
Features
- Compression ring design allows quick and reliable EMT connection without threading
- Concrete-tight and raintight sealing for harsh environments
- Compatible with steel and aluminum EMT and rigid conduit (sizes 2-1/2" to 4")
- Die cast zinc construction provides corrosion resistance and durability
- Easy installation by inserting EMT and tightening compression ring, then securing to box knockout with locknut
- Meets UL 514B bonding and grounding requirements
- CSA Listed for use in Canada
