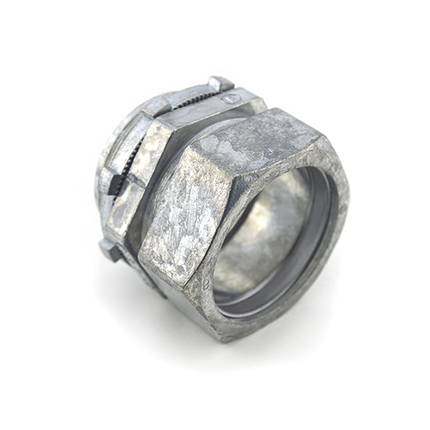

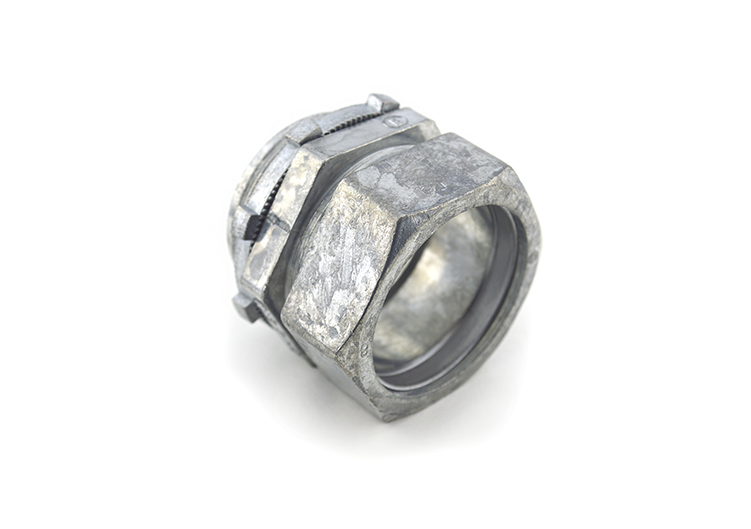

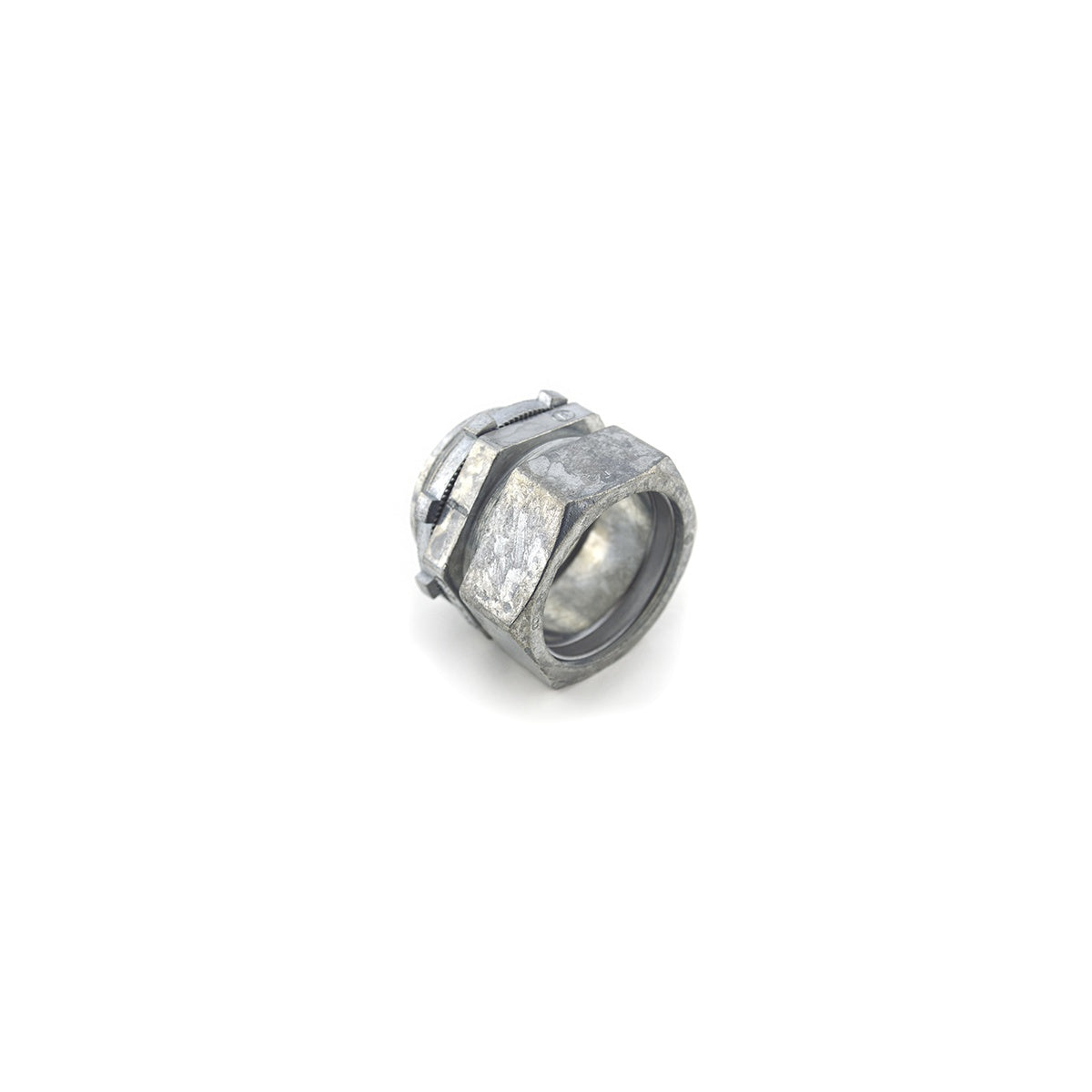

Screw-on EMT Compression Connector 1-1/2" Die Cast Zinc - Compression EMT Connector

The Screw-on EMT Compression Connector 1-1/2" Die Cast Zinc by Bridgeport Fittings is designed to join electrical metallic tubing (EMT) to electrical boxes or enclosures, providing a concrete-tight connection. Suitable for use with steel or aluminum EMT, this connector is ideal for electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant fittings for lighting solutions, wire and cable installations, and conduit systems.

Specifications

• Material: Zinc Die Cast
• Finish: Ball burnish
• Size: 1-1/2"
• Dimensions (L x W x H): 2.44 in x 2 in x 2 in
• Weight: 0.53 lbs
• Application: Joins steel EMT to box or enclosure; concrete-tight; suitable for steel or aluminum EMT
• UL Listed File No.: E24001
• CSA Listed: Concrete-tight and raintight
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: 254-DC2

Features

• Die cast zinc construction for excellent corrosion resistance in harsh environments
• Compression ring ensures a secure, trouble-free fit
• Concrete-tight seal suitable for use in wet locations
• Compatible with both steel and aluminum EMT; sizes 2-1/2" and larger also suitable for rigid conduit
• Meets UL 514B bonding and grounding requirements
• Ball burnish finish enhances durability and appearance

Downloads & Links

• Spec Sheet
