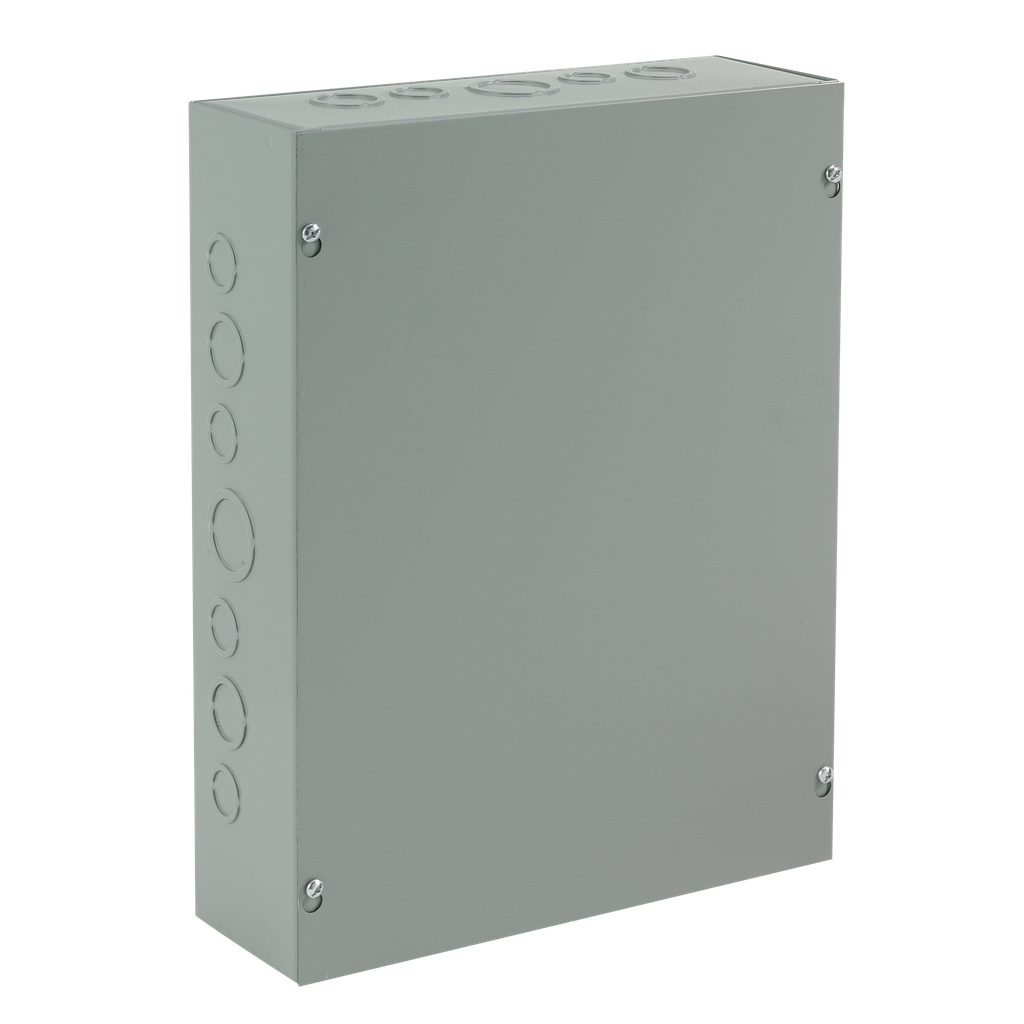

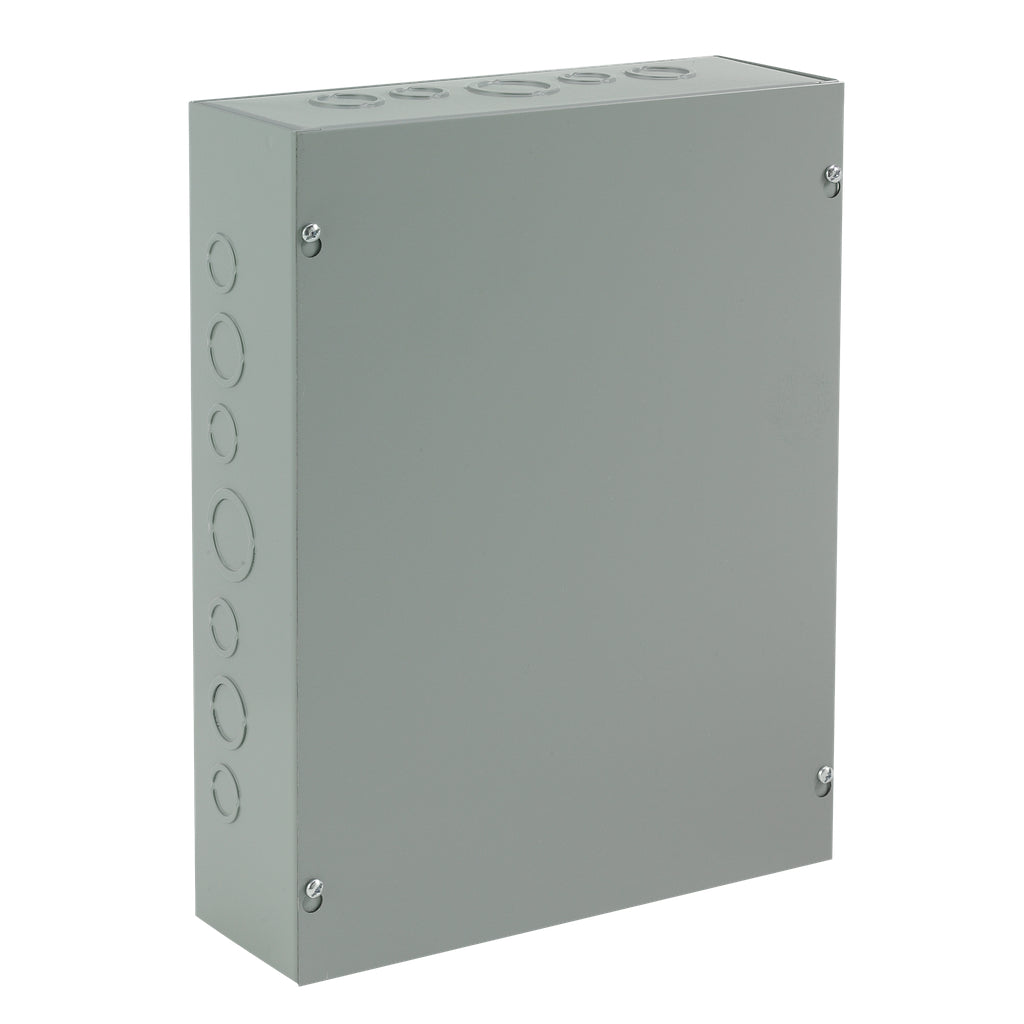

Features

• Unique keyhole screw slots in the cover
• Available with or without knockouts
• Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
• Optional flush-mounted door frame available
• Optional flush covers
• Flat, removable covers fastened with plated steel screws
• Provision for grounding
• Mounting holes on back of box
• Enclosures are finished with paint over plated surfaces

Specifications

• Length: 4.10 inch
• Width: 4.20 inch
• Height: 4.10 inch
• Weight: 1.90 pound
• Height (H) (inch): 4
• Height (H) (millimetre): 102
• Width (W) (inch): 4
• Width (W) (millimetre): 102
• Depth (D) (inch): 4
• Depth (D) (millimetre): 102
• Protection Rating: NEMA Type 1
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness (gauge): 16
• Body Thickness (millimetre): 1.52
• Door Thickness (gauge): 16
• Door Thickness (millimetre): 1.52
• NEMA Rating: 1 Indoor, electrical protection
• IP Rating: IP30
• Style: Painted
• Knockouts Included: Yes
• Cover Screw Quantity: 2
• Knockout Pattern Along A Sides: B-C
• Knockout Pattern Along B Sides: B-C
• Modification Services: Yes
• Weight (pound): 1.9
• Size: 4.00x4.00x4.00 in
• Knockouts: Yes
