Scotchlok IDC Connector 567 BOX Run and Tap – Insulation Displacement Connector

The 3M Scotchlok IDC Connector 567 is a reliable insulation displacement connector designed for electrical distributors and lighting solutions requiring secure wire splicing. Rated for 600V use with building wire and 1000V for signs, fixtures, and luminaires, it is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, as well as automotive, boat, and RV wiring applications. This self-stripping connector features a polypropylene insulated body that withstands temperatures up to 221°F (105°C), offering durability and safety in demanding environments.

Specifications

• Manufacturer: 3M
• Manufacturer Part #: 7100167058

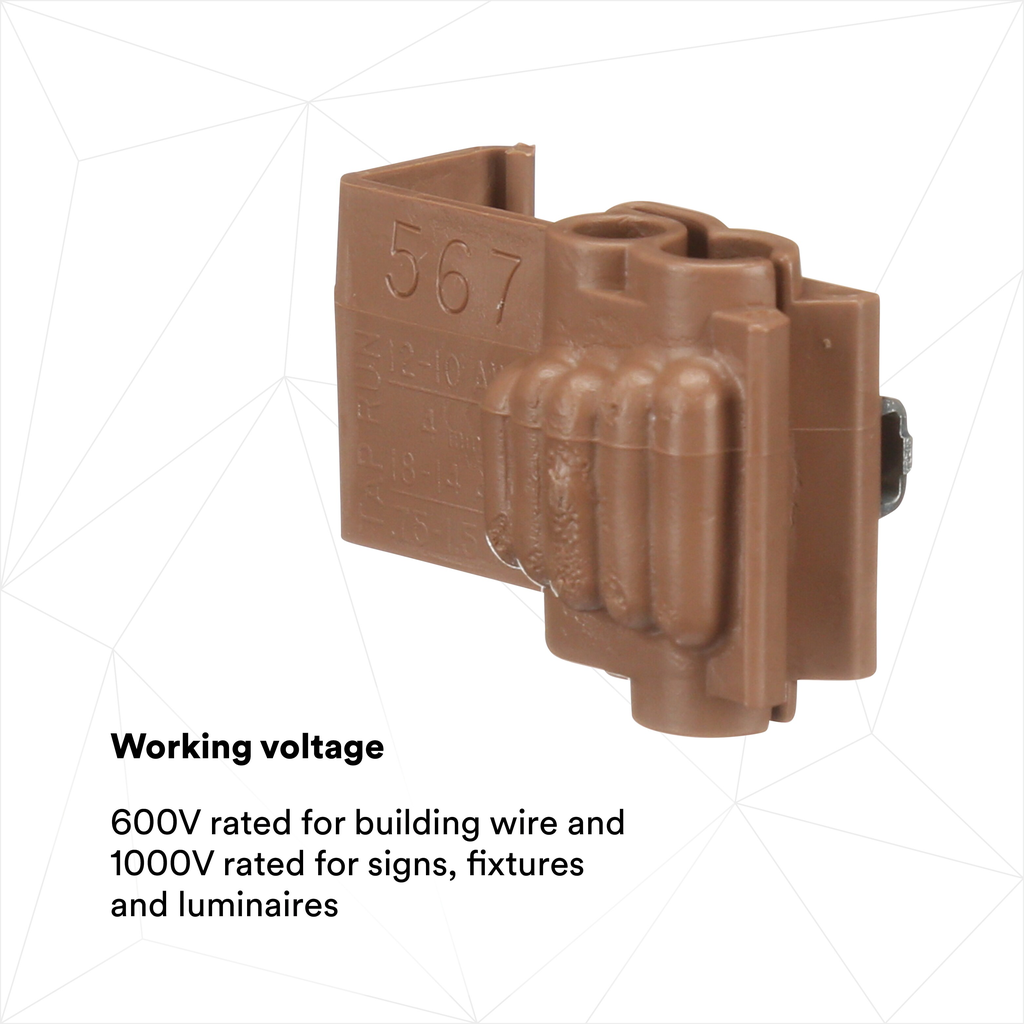

• Voltage Rating: 600V for building wire, 1000V for signs, fixtures, and luminaires

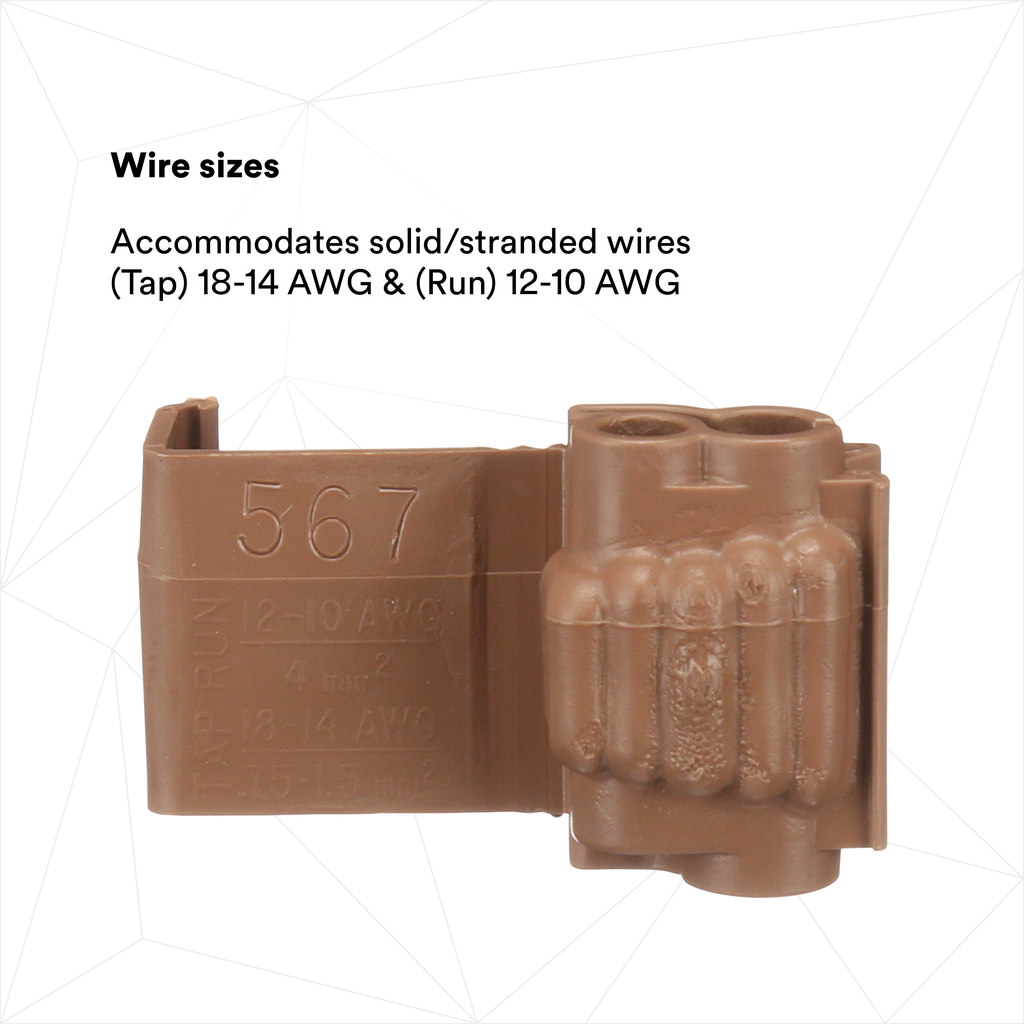

• Conductor Size: Tap 18–14 AWG, Run 12–10 AWG (solid/stranded wires)

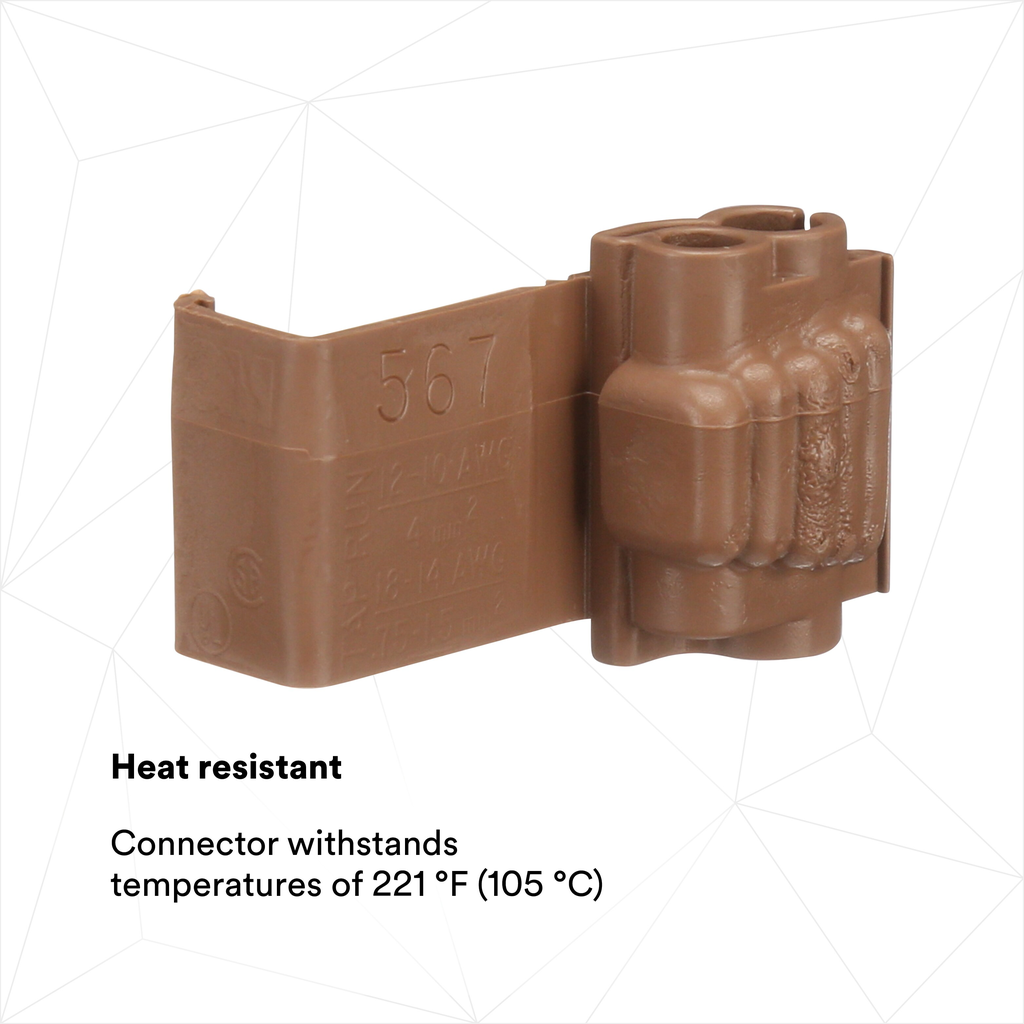

• Operating Temperature: 221°F (105°C)
• Insulation Material: Polypropylene
• Weight: 0.84 lbs
• Country of Origin: United States
• Made in USA: Yes

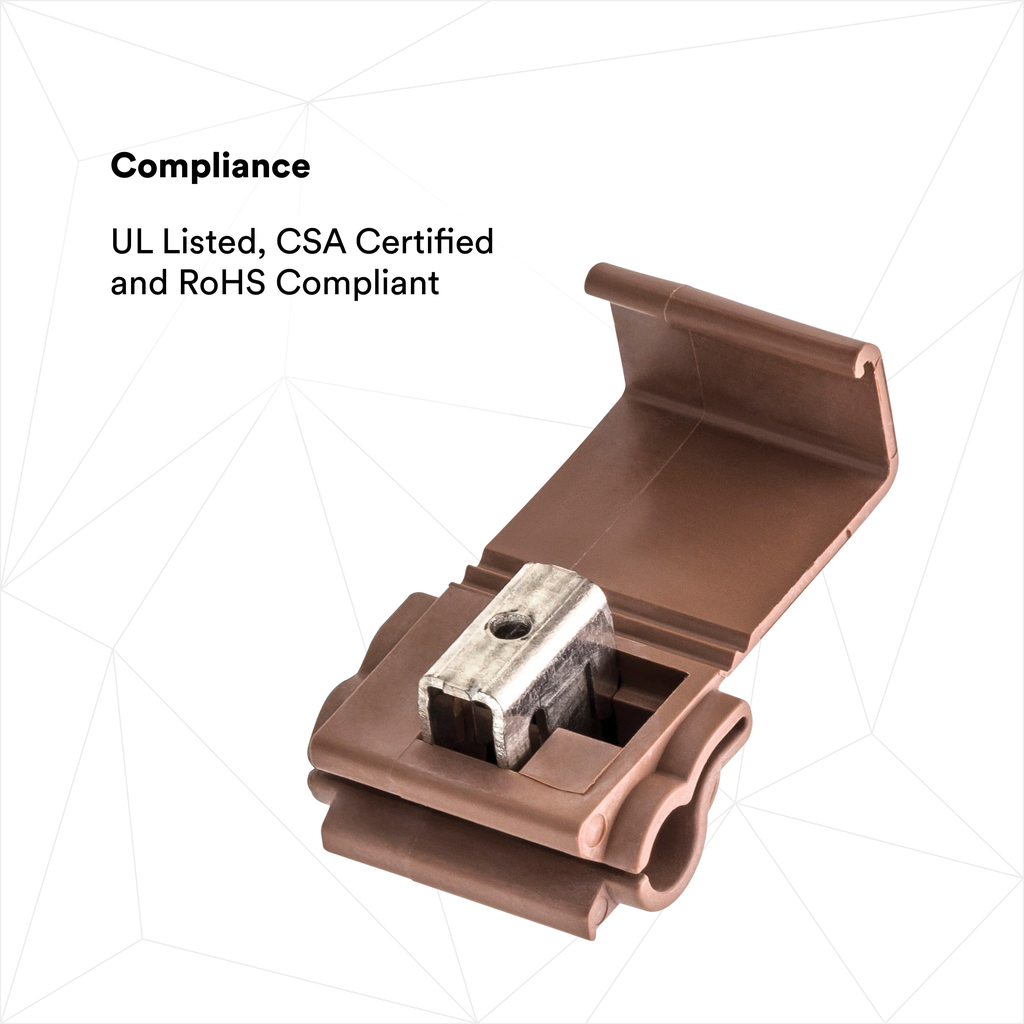

• Certifications: UL Listed, CSA Certified, RoHS Compliant

Features

• Self-stripping insulation displacement design for quick and reliable splices
• Polypropylene insulated housing provides electrical insulation and heat resistance
• Rated for both building wire and higher voltage applications such as signs and luminaires
• Withstands temperatures up to 221°F (105°C) ensuring performance in elevated temperature environments

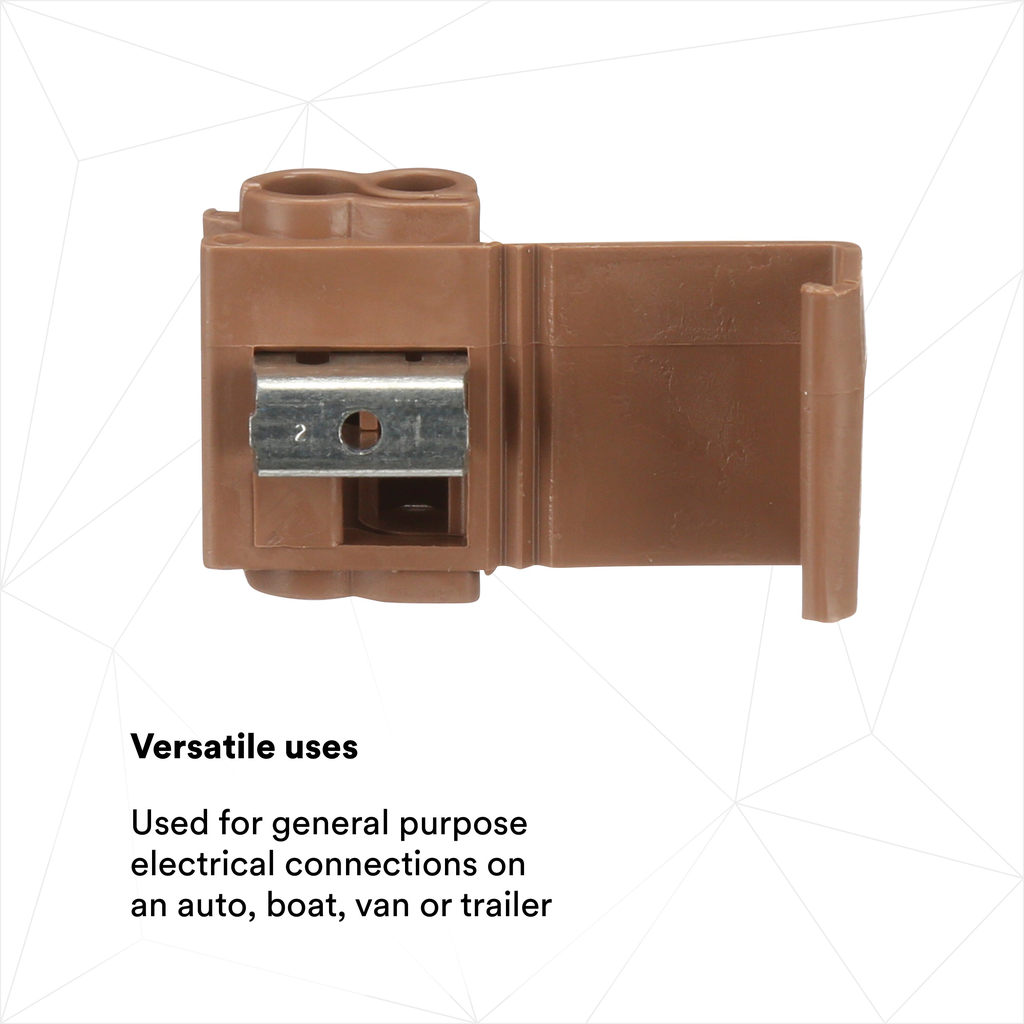

• Suitable for a wide range of applications including control circuits, fixtures, appliances, automotive, boat, and RV wiring
• UL Listed and CSA Certified for safety and compliance
• RoHS Compliant meeting environmental and safety regulations

Downloads & Links

• Document Catalogs
• Document Brochures
• Spec Sheet
