SCOTCHFIL Electrical Insulating Tape – Electrical Insulation Putty

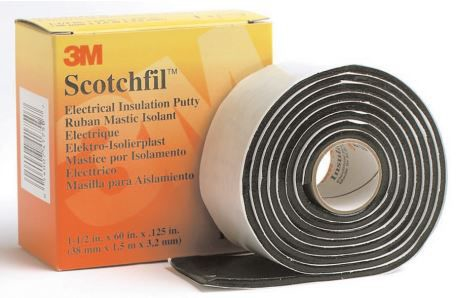

3M™ Scotchfil™ Electrical Insulation Putty is designed for use as a build-up compound on highly irregular surfaces such as fittings and valves, providing a smooth, waterproof taping surface. This electrical insulating tape is soft and pliable, allowing it to be easily pressed into place on irregular surfaces, molded with finger pressure, and overtaped using standard methods. It is suitable for electrical distributors and lighting solutions requiring reliable insulation and surface preparation for wire and cable or switchgear applications.

Specifications

• Material: Electrical Grade Putty
• Backing Material: Electrical Insulation Putty
• Width: 1.5 Inch
• Length: 60 Inch
• Operating Temperature Range: 0 to 80 °C (32 to 176 °F)
• Elongation: 1000%
• Dielectric Strength: 575 V/mil (22.6 kV/mm)
• Color: Black
• Insulated: Yes
• Product Weight: 0.54 lbs
• RoHS Compliant: Yes
• Country of Origin: USA

Features

• Soft and pliable putty conforms to irregular surfaces for effective insulation build-up
• Provides a smooth, waterproof surface for taping
• Easy to mold with finger pressure and compatible with standard overtaping methods
• Premium sealing and mastic tape grade for electrical applications

Downloads & Links

• Spec Sheet
