Schedule 40 PVC 1/2" Offset
SKU: #168632
Part: #1101
UPC: 751338231184
Schedule 40 PVC 1/2" Offset
SKU: #168632
Part: #1101
UPC: 751338231184
Next day delivery
Description

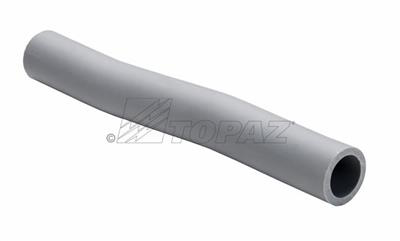

Schedule 40 PVC 1/2" Offset – PVC Conduit Fitting
The Schedule 40 PVC 1/2" Offset is designed to facilitate easy directional changes in conduit runs and compensate for centerline differences between two conduits. Manufactured from durable, non-conductive PVC, this fitting is suitable for electrical distributors and lighting solutions requiring reliable conduit routing. It is cULus approved and ideal for use in wire and cable installations where rust-proof and impact-resistant components are essential.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 1101
- UPC: 751338231184
- Size: 1/2"
- Material: PVC
- Length (A): 6.375 inches
- Dimension B: 0.625 inches
- Dimension C: 0.875 inches
- Weight: 0.1040 lbs
Features
- High tensile and impact strength
- Non-conductive, rust-proof, and corrosion-resistant
- Enables directional changes around obstacles
- Compensates for centerline differences in conduit runs
- cULus approved for safety and compliance
